XKAQ-00635 Ring Gear Excavator Swing Gear For HYUNDAI R250LC9 R250LC9A R260LC9S
- XKAQ-00635 Ring Gear Excavator Swing Gear Used For HYUNDAI R250LC9 R250LC9A R260LC9S
- Specifiion
| spare parts name | Ring Gear |
| Equipment Model | R250LC9 R250LC9A R260LC9S RB260LC9S |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
The ring gear is a large circular gear with internal teeth, used in the planetary gear system of the swing reducer. It works with:
Sun gear (center gear) Planet gears Carrier assembly Together, these gears:
1.Transfer power from the swing motor to the excavator’s upper body
2.Reduce speed while increasing torque
3.Allow smooth and controlled 360° rotation of the upper structure
- Common Signs of Wear or Damage
1.Abnormal swing noise (grinding, knocking)
2.Jerky or uneven rotation of the upper structure
3.Excessive backlash or movement when swing is stopped
4.Metal particles in swing gearbox oil
5.Visible tooth wear during inspection
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S RB260LC9S
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| 4896380 GEAR-CAMSHAFT |
| HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A |
| M230X-00671 GEAR ASSY |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| 39Q5-12270 GEAR-PLANETARY 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| 39Q5-12320 GEAR-SUN 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| ZGAQ-04882 GEAR-RING |
| R160W9A, R170W9, R180W9A, R180W9S |
| ZGAQ-01991 GEAR SHIFT SENSOR 1 |
| R200W7 |

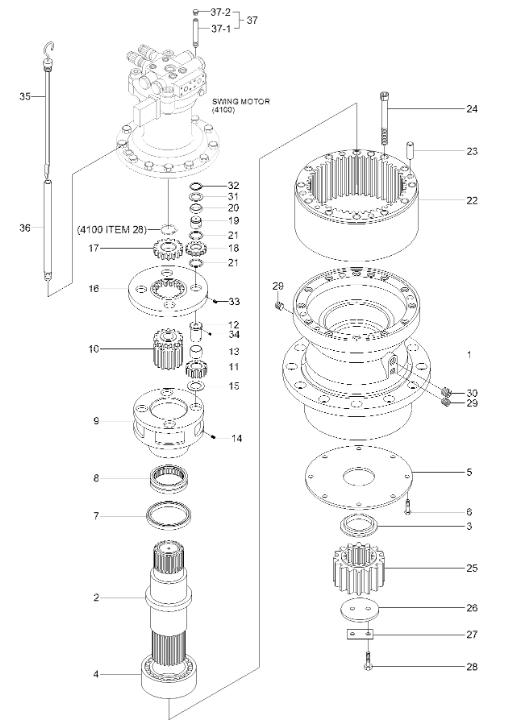

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31EN-10070 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31EN-10071 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00632 | [1] | CASING | |
| 1 | XKAQ-00633 | [1] | CASING | |
| 2 | XKAQ-00115 | [1] | SHAFT | |
| 3 | XKAQ-00116 | [1] | SPACER | |
| 4 | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00118 | [1] | PLATE-COVER | |
| 6 | XKAQ-00064 | [8] | BOLT-HEX | |
| 7 | XKAQ-00119 | [1] | SEAL-OIL | |
| 8 | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 9 | XKAQ-00121 | [1] | CARRIER 2 | |
| 10 | XKAQ-00122 | [1] | GEAR-SUN 2 | |
| 10 | XKAQ-00634 | [1] | GEAR-SUN 2 | |
| 11 | XKAQ-00123 | [4] | GEAR-PLANET 2 | |
| 12 | XKAQ-00124 | [4] | PIN 2 | |
| N13. | XKAQ-00533 | [4] | BUSHING 2 | |
| N34. | @ | [4] | PIN-SPRING | |
| 14 | XKAQ-00050 | [4] | PIN-SPRING | |
| 15 | XKAQ-00071 | [4] | WASHER-THRUST | |
| 16 | XKAQ-00126 | [1] | CARRIER 1 | |
| 17 | XKAQ-00127 | [1] | GEAR-SUN 1 | |
| 18 | XKAQ-00128 | [4] | GEAR-PLANET 1 | |
| 19 | XKAQ-00019 | [4] | PIN 1 | |
| 20 | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 21 | XKAQ-00129 | [4] | NEEDLE CAGE | |
| 22 | XKAQ-00635 | [1] | GEAR-RING | |
| 23 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 24 | XKAQ-00131 | [12] | BOLT-SOCKET | |
| 25 | XKAQ-00132 | [1] | GEAR-PINION | |
| 26 | XKAQ-00296 | [1] | PLATE-LOCK | |
| 27 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 28 | XKAQ-00042 | [2] | BOLT-HEX | |
| 29 | XKAQ-00066 | [2] | PLUG | |
| 30 | XKAQ-00049 | [1] | PLUG | |
| 31 | XKAQ-00040 | [4] | PLATE-SIDE 2 | |
| 32 | XKAQ-00041 | [4] | RING-STOP | |
| 33 | XKAQ-00048 | [4] | PIN-SPRING | |
| 34 | XKAQ-00133 | [1] | PIN-SPRING | |
| 35 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 35 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 36 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 36 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 37 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 37-1. | @ | [1] | POST | |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
