XKAQ-00050 Spring Pin Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A R290LC7
- XKAQ-00050 Spring Pin Excavator Swing Gear Used For HYUNDAI R250LC7 R250LC7A R290LC7
- Specifiion
| spare parts name | Spring pin |
| Equipment Model | R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R8007AFS R800LC7A RD340LC-7 |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
A spring pin is a self-locking mechanical fastener used to:
1.Secure gears, shafts, levers, or pins within assemblies
2.Maintain alignment between rotating or reciproing components
3.Absorb shock and vibration, due to its spring-loaded design
4.The spring pin is inserted into a hole under tension, allowing it to stay firmly in place without threads, nuts, or adhesives.
- Typical Uses in Hyundai Machines
1.Securing sun gears to shafts in planetary gearboxes (e.g., swing or travel reduction gear)
2.Locking lever pins in hydraulic control systems
3.Connecting small linkages where shear strength and precision alignment are needed
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R8007AFS R800LC7A RD340LC-7
9-SERIES CRAWLER EXCAVATOR R1200-9 R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R360LC9 R380LC9A R380LC9DM R380LC9MH R380LC9SH R390LC9 R430LC9 R430LC9A R430LC9SH R800LC-9 R800LC9FS RB260LC9S
- More other pin parts applicable for HYUNDAI machine
| 3904483 PIN-DOWEL |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7... |
| 3950549 PIN-PISTON |
| 180DE, 250D-9, 250DE, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A |
| S491-060252 PIN-CLEVIS |
| 35D-9, 35D-9A, 35D-9K, 35D-9S, 60L-7A, DX20, HC25E, HC50E, HDF50-3, HDF80-3, R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210NLC7, R250LC7, R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z... |
| 61KA-00010 PIN WA |
| HX380L, HX430L |
| 81NB-20150 PIN-TRACK |
| HX430L, HX480L, HX520L, R430LC9, R430LC9A, R430LC9SH, R450LC7, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 81NB-20160 PIN-MASTER |
| HX430L, HX480L, HX520L, R430LC9, R430LC9A, R430LC9SH, R450LC7, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 61QE-00032 PIN WA |
| R1200-9 |
| 61QE-40223 PIN WA |
| R1200-9 |
| 61QE-40233 PIN WA |
| R1200-9 |

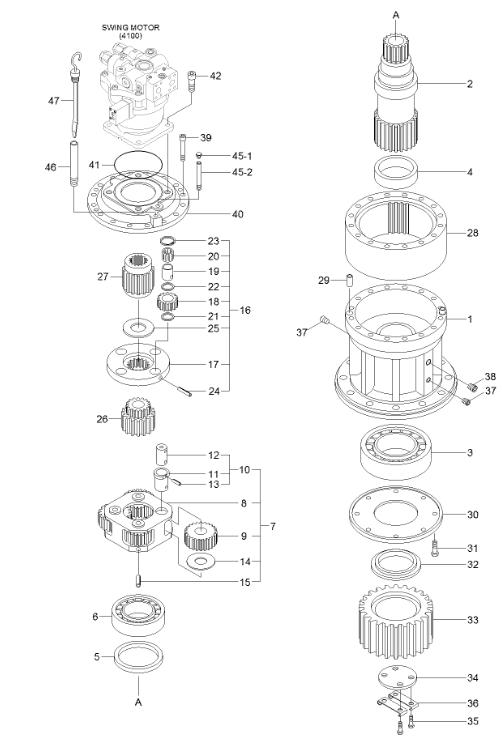

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31QA-10151 | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31QA-10141 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00738 | [1] | CASING | |
| 2 | XKAQ-00739 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00146 | [1] | BEARING-ROLLER | |
| 4 | XKAQ-00171 | [1] | RING-SPACER | |
| 5 | XKAQ-00149 | [1] | SEAL-OIL | |
| 6 | XKAQ-00027 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00264 | [1] | CARRIER ASSY-NO 2 | |
| 8 | XKAQ-00740 | [1] | CARRIER 2 | |
| 9 | XKAQ-00741 | [4] | GEAR-PLANETARY 2 | |
| 10 | XKAQ-00742 | [4] | PIN ASSY 2 | |
| 11 | XKAQ-00254 | [1] | PIN 2 | |
| N12. | XKAQ-00255 | [1] | BUSHING 2 | |
| 13 | XKAQ-00165 | [1] | PIN-SPRING | |
| 14 | XKAQ-00156 | [4] | WASHER-THRUST | |
| 15 | XKAQ-00050 | [4] | PIN-SPRING | |
| 16 | XKAQ-00412 | [1] | CARRIER ASSY 1 | |
| 17 | XKAQ-00743 | [1] | CARRIER 1 | |
| 18 | XKAQ-00414 | [4] | GEAR-PLANETARY 1 | |
| 19 | XKAQ-00744 | [4] | PIN 1 | |
| 20 | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 21 | XKAQ-00417 | [4] | PLATE 1-SIDE | |
| 22 | XKAQ-00416 | [4] | PLATE 2-SIDE | |
| 23 | XKAQ-00041 | [4] | RING-STOP | |
| 24 | XKAQ-00048 | [1] | PIN-SPRING | |
| 25 | XKAQ-00422 | [1] | RING-THRUST | |
| 26 | XKAQ-00745 | [1] | GEAR-SUN 2 | |
| 27 | XKAQ-00746 | [1] | GEAR-SUN 1 | |
| 28 | XKAQ-00420 | [1] | GEAR-RING | |
| 29 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 30 | XKAQ-00747 | [1] | PLATE-COVER | |
| 31 | XKAQ-00148 | [8] | BOLT-HEX | |
| 32 | XKAQ-00775 | [1] | SPACER | |
| 33 | XKAQ-00749 | [1] | GEAR-PINION | |
| 34 | XKAQ-00299 | [1] | PLATE-LOCK | |
| 35 | XKAQ-00042 | [4] | BOLT-HEX | |
| 36 | XKAQ-00292 | [2] | WASHER-LOCK | |
| 37 | XKAQ-00274 | [2] | PLUG | |
| 38 | XKAQ-00049 | [1] | PLUG | |
| 39 | XKAQ-00259 | [16] | BOLT-SOCKET | |
| 40 | XKAQ-00750 | [1] | COVER | |
| 41 | XKAQ-00751 | [1] | O-RING | |
| 42 | XKAQ-00170 | [4] | BOLT-SOCKET | |
| 43 | XKAQ-00066 | [1] | PLUG | |
| 45 | XKAQ-00798 | [1] | AIR BREATHER ASSY | |
| 45-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| 45-2. | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 46 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 47 | XKAQ-00166 | [1] | BAR-GAUGE | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
