71Q6-02131 Door Latch Without Key HYUNDAI Excavator Spare Parts For R140LC-9 R145CR-9 R160LC-9
- 71Q6-02131 Door Latch Without Key HYUNDAI Excavator Spare Parts For R140LC-9 R145CR-9 R160LC-9
- Specifiion
| Name | Door Latch |
| Parts No | 71Q6-02131 |
| Machine Model | R140LC9 R145CR9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 |
| egory | Cab Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
A door latch is an important part of a vehicle, mainly used to lock and unlock the vehicle door, ensuring that the door remains closed and secure during driving to prevent it from accidentally opening, thus safeguarding the safety of passengers. It also enables convenient opening and closing of the door.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R1200-9 R140LC9 R145CR9 R160LC9 R180LC9 R210LC9 R210NLC9 R235LCR9 R250LC9 R260LC9S R290LC9 R300LC9SH R320LC9 R330LC9S R360LC9 R380LC9SH R390LC9 R480LC9 R480LC9S R520LC9
9-SERIES WHEEL EXCAVATOR R140W9 R170W9 R210W-9 Hyundai
- More other latch parts fit for HYUNDAI machine
| 71Q6-52190GG LATCH ASSY |
| HW140, HW210, R140W9, R140W9A, R140W9S, R160W9A, R170W9, R170W9S, R180W9A, R180W9S, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R290LC9MH, R380LC9MH, R480C9MH, R800LC9FS |
| 71Q6-02111 LATCH ASSY |
| R235LCR9 |
| 71M8-20570 LATCH-TILT |
| HX235L, R125LCR-9A, R145CR9, R145CR9A, R235LCR9, R235LCR9A, R55-7, R55-7A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R55W7, R55W7A, R60CR-9, R60CR-9A, R80CR-9, R80CR-9A, RC60-7 |
| XKBN-00116 LATCH-SPRING |
| HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145C... |
| 71QE-62190 LATCH ASSY |
| R1200-9 |
| 72Q6-02130 LATCH ASSY-INNER |
| R1200-9, R140LC9, R140W9, R145CR9, R160LC9, R170W9, R180LC9, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R235LCR9, R250LC9, R260LC9S, R290LC9, R300LC9SH, R320LC9, R330LC9S, R360LC9, R380LC9SH, R... |
| 72Q6-02131 LATCH ASSY-INNER |
| HX180L, HX235L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W... |
| 71Q8-22780 LATCH ASSY |
| R140W9A, R160W9A, R170W9, R180W9A, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| 71QE-62190Y LATCH ASSY |
| R1200-9 |
| 71Q6-02481 LATCH-SLIDING, LH |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R160LC9, R160LC9A, R160LC9S, R170W... |
| 71Q6-02491 LATCH-SLIDING, RH |
| HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R160LC9, R160LC9A, R160LC9S, R170W... |
| 71Q6-02360 LATCH ASSY |
| R290LC9 |
| 71QE-62190 LATCH ASSY |
| R1200-9 |
| 75LQ-40510 LATCH ASSY |
| HL730TM-9A, HL757-9A, HL757TM-9A, HL760-9A, HL760-9AW, HL780-9A |
| 75LQ-40050 LATCH ASSY |
| HL780-9A |
| 75LK-40050 LATCH ASSY |
| HL770-9A |

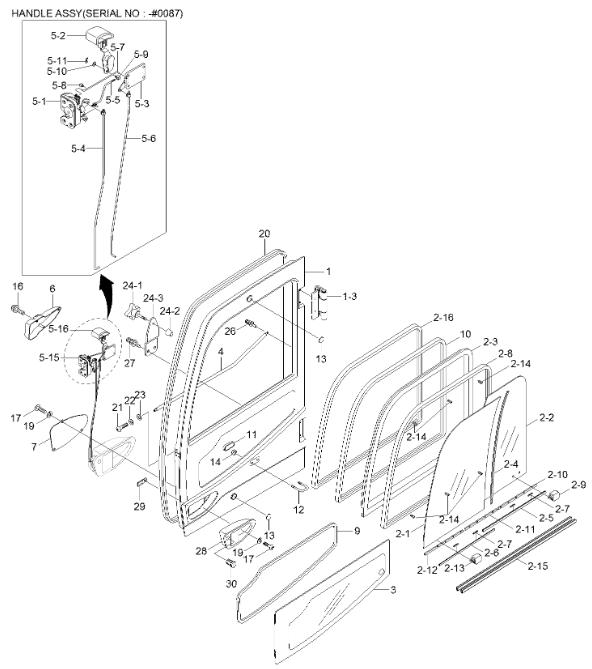

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | CAB ASSY | SEE 6020 |
| *-1. | 71Q6-02001 | [1] | SIDE DOOR ASSY | |
| *-1. | 71Q6-02002 | [1] | SIDE DOOR ASSY | |
| 1 | 71Q6-02012 | [1] | SIDE DOOR WA | |
| 1 | 71Q6-02013 | [1] | SIDE DOOR WA | |
| 1-3. | 71Q6-02102 | [2] | HINGE | |
| 2 | 71Q6-02020 | [1] | SASH ASSY | |
| 2-1. | 71Q6-03230 | [1] | GLASS | |
| 2-1. | 71Q6-03231 | [1] | GLASS-FRONT | |
| 2-2. | 71Q6-03240 | [1] | GLASS | |
| 2-2. | 71Q6-03241 | [1] | GLASS-REAR | |
| 2-3. | 71Q6-03250 | [1] | FRAME | |
| 2-3. | 71Q6-03251 | [1] | FRAME | |
| N2-15. | 71Q6-03370 | [1] | FRAME-LOWER | |
| 2-4. | 71Q6-03260 | [1] | MOHAIR | |
| 2-5. | 71Q6-03270 | [1] | RAIL | |
| 2-5. | 71Q6-03271 | [1] | RAIL | |
| 2-6. | 71Q6-03280 | [1] | RAIL | |
| 2-6. | 71Q6-03281 | [1] | RAIL | |
| 2-7. | 71Q6-03290 | [4] | RAIL | |
| 2-7. | 71Q6-03291 | [4] | RAIL | |
| 2-8. | 71Q6-03300 | [1] | SEAL | |
| 2-8. | 71Q6-03380 | [1] | SEAL-FRONT | |
| 2-9. | 71Q6-03310 | [1] | LOCK ASSY | |
| 2-9. | 71Q6-03311 | [1] | CH-FRONT | |
| 2-10. | 71Q6-03320 | [1] | LOCK | |
| 2-11. | 71Q6-03330 | [1] | LOCK | |
| 2-12. | 71Q6-03340 | [1] | LOCK | |
| 2-13. | 71Q6-03350 | [1] | CH | |
| 2-13. | 71Q6-03351 | [1] | CH | |
| 2-14. | 71Q6-03360 | [10] | RUBBER | |
| N2-15. | 71Q6-03370 | [1] | FRAME-LOWER | |
| 2-16. | 71Q6-03390 | [1] | SEAL-REAR | |
| 3 | 71Q6-02030 | [1] | GLASS-DOOR | |
| 3 | 71Q6-02031 | [1] | GLASS-DOOR | |
| 4 | 71Q6-02242 | [1] | HANDRAIL | |
| 5 | 71Q6-02121 | [1] | HANDLE ASSY | |
| 5-1. | 71Q6-02130 | [1] | CH | |
| 5-1. | 71Q6-02131 | [1] | LATCH-DOOR | |
| 5-2. | 71Q6-03150 | [1] | KNOB-INNER HANDLE | |
| 5-3. | 71Q6-02150 | [1] | HANDLE-INNER | |
| 5-4. | 71Q6-02170 | [1] | ROD | |
| 5-5. | 71Q6-02180 | [1] | ROD | |
| 5-6. | 71Q6-02160 | [1] | ROD | |
| 5-7. | 71Q6-02190 | [1] | ROD | |
| 5-8. | 71Q6-02250 | [5] | HOLDER | |
| 5-9. | MH800050 | [3] | PIN-JOINT | |
| 5-10. | MB700270 | [3] | WASHER-PLATE | |
| 5-11. | MH650620 | [3] | PIN-R | |
| 5 | 72Q6-02120 | [1] | HANDLE ASSY | |
| 5 | 72Q6-02121 | [1] | HANDLE ASSY | |
| 5-15. | 72Q6-02130 | [1] | LATCH ASSY-INNER | |
| 5-15. | 72Q6-02131 | [1] | LATCH ASSY-INNER | |
| 5-16. | 72Q6-02140 | [1] | LEVER ASSY | |
| 6 | 71Q6-02140 | [1] | COVER | |
| 7 | 71Q6-02061 | [1] | COVER | |
| 9 | 71Q6-02370 | [1] | WEATHER STRIP | |
| 9 | S778-021500 | [1] | STRIP-WEATHER | |
| 10 | 71Q6-02380 | [1] | WEATHER STRIP | |
| 10 | S778-021900 | [1] | STRIP-WEATHER | |
| 11 | 71M8-00680 | [1] | RUBBER-CAP | |
| 12 | 71N6-03650 | [1] | STRIKER | |
| 13 | 17E1-5146 | [2] | BUMPER-DOOR | |
| 14 | S205-10100B | [4] | NUT-HEX | |
| 16 | S131-043046 | [3] | SCREW-W/WASHER | |
| 17 | S151-050156 | [6] | SCREW-TAPPING | |
| 17 | S151-050156 | [3] | SCREW-TAPPING | |
| 19 | S411-050006 | [6] | WASHER-SPRING | |
| 19 | S411-050006 | [3] | WASHER-SPRING | |
| 20 | 71Q6-02040 | [1] | WEATHER STRIP | |
| 20 | S776-050300 | [1] | STRIP-WEATHER | |
| 21 | S161-060156 | [5] | SCREW-CROSS R/ROUND | |
| 21 | S035-061526 | [4] | BOLT-W/WASHER | |
| 22 | S411-060006 | [3] | WASHER-SPRING | |
| 23 | S403-062006 | [3] | WASHER-PLAIN | |
| 24 | 71Q6-02081 | [1] | STOPPER ASSY | |
| 24 | 71Q6-02082 | [1] | STOPPER ASSY | |
| 24-1. | 71Q6-02261 | [1] | BOLT-KNOB | |
| 24-1. | 71Q6-02262 | [1] | BOLT-KNOB | |
| 24-2. | 71Q6-02290 | [1] | RUBBER-BUMPER | |
| 24-3. | 71Q6-02280 | [1] | PLATE | |
| 24-3. | 71Q6-02281 | [1] | PLATE | |
| 26 | S037-082526 | [2] | BOLT-W/WASHER | |
| 27 | S141-060166 | [2] | SCREW-FLAT HD | |
| 28 | 71Q6-02110 | [1] | LATCH ASSY | |
| 28 | 72Q6-02110 | [1] | HANDLE-OUTER | |
| 29 | 71Q6-00590 | [1] | PLATE-ASSIT | |
| 30 | S161-060206 | [3] | SCREW-CROSS R/ROUND | |
| 30 | S035-062526 | [3] | BOLT-W/WASHER | |
| 30 | S035-063026 | [3] | BOLT-W/WASHER | |
| 40 | 71Q6-02050 | [1] | ROTOR | |
| 40 | 72Q6-02050 | [1] | ROTOR-HD620C |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
