XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts For HYUNDAI R140W7A R170W7A
- XJAF02352 XJAF-02352 Oil Pipe Excavator Engine Parts Fitting For HYUNDAI R140W7A R170W7A
- Specifiion
| spare parts name | Oil pipe |
| Equipment Model | R140W7A R170W7A |
| Parts egory | HYUNDAI Excavator Engine Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- What It Is & Its Role
1.Function: Transfers engine oil to lubrie the turbocharger, ensuring proper lubriion and cooling of the bearing journal.
2.Critical Importance: A blocked, cracked, or leaking line can lead to turbo failure or oil starvation, which can rapidly damage the turbocharger.
- Compatible models
7 SERIES WHEEL EXCAVATOR R140W7A R170W7A
7-SERIES CRAWLER EXCAVATOR R110-7A R140LC-7A R160LC7A R180LC7A
9-SERIES CRAWLER EXCAVATOR R140LC9 R145CR9 R160LC9 R180LC9
- More other pipe parts applicable for HYUNDAI machine
| 31N3-50250 PIPE ASSY |
| R110-7, R110-7A, RD110-7 |
| 31N3-92310 PIPE ASSY |
| R110-7, R110-7A, RD110-7 |
| XJAF-02258 PIPE-OIL |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| 31N4-51151 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-52990 PIPE ASSY |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31N4-92190 PIPE ASSY |
| R140LC-7, R140LC-7A |
| 31Y1-21160 PIPE ASSY-R,LH |
| R140LC-7, R140LC-7A, R140W7, R140W7A |
| 31Q4-12130 PIPE ASSY |
| HX180L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, RB140LC9S, RB160LC9S |
| 31Q4-53080 PIPE ASSY |
| R140LC9, R140LC9S, R140W9, R140W9S |
| 31Q4-91310 PIPE ASSY |
| HW140, HX140L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, RB140LC9S |
| 31Y1-31660 PIPE ASSY-R |
| R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, RB140LC9S, RD140LC9 |
| 31Q4-93721 PIPE ASSY |
| R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A |
| XJAF-02258 PIPE-OIL |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| 31N3-12350 PIPE ASSY |
| R110-7A |
| 31N3-13010 PIPE ASSY-SUCTION |
| R110-7A, RD110-7 |
| 11N4-45130 PIPE-CHARGE AIR |
| R110-7A, R140LC-7A, R140W7A |
| 11N4-45120 PIPE-CHARGE AIR |
| R110-7A, R140LC-7A, R140W7A |
| 11N3-21100 PIPE WA-A/C HOSE |
| R110-7A |
| XJAF-00456 PIPE-OIL |
| R110-7 |
| XJAF-00455 PIPE-OIL |
| R110-7 |
| XJAF-00451 PIPE-FUEL RETURN |
| R110-7 |
| XJAF-00432 PIPE-INJ NO.4 |
| R110-7 |
| XJAF-00431 PIPE-INJ NO.3 |
| R110-7 |
| XJAF-00430 PIPE-INJ NO.2 |
| R110-7 |
| XJAF-02353 PIPE-OIL DRAIN |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| XJAF-02371 PIPE-DRAIN |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| XJAF-02389 PIPE-BREATHER |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| XJAF-02402 PIPE-PUMP |
| R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A |

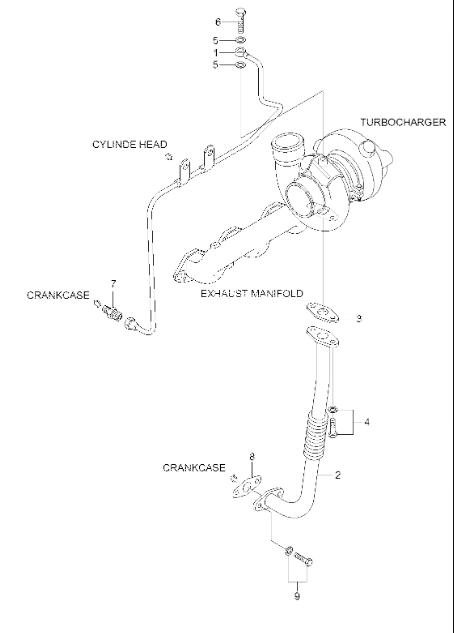

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | XJAF-02352 | [1] | PIPE-OIL | |
| 2 | XJAF-02353 | [1] | PIPE-OIL DRAIN | |
| 3 | XJAF-02354 | [1] | GASKET-OIL PIPE | |
| 4 | XJAF-02355 | [2] | BOLT-W/WASHER | |
| 5 | XJAF-00371 | [2] | GASKET | |
| 6 | XJAF-00372 | [1] | BOLT-EYE | |
| 7 | XJAF-00376 | [1] | CONNECTOR | |
| 8 | XJAF-02568 | [1] | GASKET-DRAIN PIPE | |
| 9 | XJAF-02313 | [2] | BOLT-W/WASHER |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
