XJBN-00382 XJBN00382 Eppr Valve Excavator Electric Parts For HYUNDAI R140W7 R140W7A R170W7
- XJBN-00382 XJBN00382 Eppr Valve Excavator Electric Parts For HYUNDAI R140W7 R140W7A R170W7
- Specifiion
| spare parts name | Eppr valve |
| Equipment Model | R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A |
| Parts egory | HYUNDAI Excavator Electric Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function & Importance
1.Regulates pilot hydraulic pressure to ensure proper movement of main valves and control valves.
2.Critical for smooth hydraulic operation—ensures consistent control response and system safety.
3.Malfunctioning EPPR valves can cause jerky movement, loss of function, or boom drift.
- Compatible models
7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RC215C7 RC215C7H RD110-7 RD210-7 RD210-7V RD220-7 RD340LC-7 RD510LC-7
- More other eppr parts applicable for HYUNDAI machine
| 31Q6-20130 EPPR VALVE-BREAKER |
| R140LC9, R140LC9S, R140W9, R145CR9, R160LC9, R170W9, R180LC9, R210LC9BC, R210LC9BH, R260LC9S, R290LC9, R320LC9, R330LC9S, R360LC9, R380LC9SH, R390LC9, R480LC9, R480LC9S, R520LC9, R700LC9, R800LC-9 |
| XJBN-00014 EPPR VALVE ASSY |
| HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC... |
| XKAH-00310 EPPR VLV CASING ASSY |
| R210LC7H, RC215C7H |
| XKAH-00309 EPPR VALVE ASSY |
| R210LC7H, R290LC7H, RC215C7H |
| 31Q7-20130 EPPR VALVE |
| R210LC9, R250LC9, R250LC9A |
| 31Q9-20130 EPPR VALVE |
| HX220L, R210LC9, R210NLC9, R210W-9, R210W9A, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9A |
| 2931100-0215 EPPR VALVE ASSY |
| R450LC7 |
| XJBN-01751 EPPR VALVE |
| R1200-9 |
| 31Q6-20131 EPPR VALVE-BREAKER |
| HX180L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210... |
| ZTAW-00311 EPPR VAVLE-FAN MOTOR |
| R320LC9, R330LC9A, R360LC9, R380LC9A, R430LC9A, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A |
| XKAG-00144 EPPR VALVE |
| R300LC9A, R320LC9, R360LC9, R380LC9DM, R380LC9MH, R430LC9 |
| 31Q6-20130 EPPR VALVE-BREAKER |
| R140LC9, R140LC9S, R140W9, R145CR9, R160LC9, R170W9, R180LC9, R210LC9BC, R210LC9BH, R260LC9S, R290LC9, R320LC9, R330LC9S, R360LC9, R380LC9SH, R390LC9, R480LC9, R480LC9S, R520LC9, R700LC9, R800LC-9 |
| XJBN-01608 EPPR VALVE |
| R125LCR-9A, R145CR9, R145CR9A |
| V9406285784 EPPR VALVE ASSY |
| 33HDLL, R130W3, R160LC3, R200W2, R200W3, R210LC3, R210LC3H, R210LC3LL, R250LC3, R320LC3 |
| XJBN-00014 EPPR VALVE ASSY |
| HW210, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R215LC7, R220LC9A, R235LCR9, R235LCR9A, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC... |
| XKAH-00310 EPPR VLV CASING ASSY |
| R210LC7H, RC215C7H |
| XKAH-00309 EPPR VALVE ASSY |
| R210LC7H, R290LC7H, RC215C7H |
| 31Q7-20130 EPPR VALVE |
| R210LC9, R250LC9 |

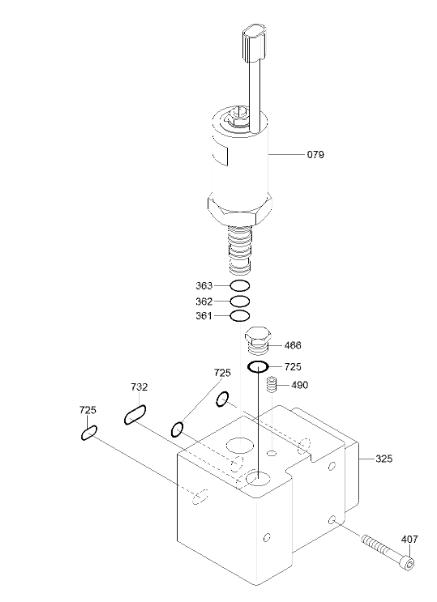

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | XJBN-00014 | [1] | EPPR VALVE ASSY | |
| 79 | XJBN-00382 | [1] | EPPR VALVE | |
| 361 | XJBN-00546 | [1] | O-RING | |
| 362 | XJBN-00547 | [1] | O-RING | |
| 363 | XJBN-00548 | [1] | O-RING | |
| N325. | XJBN-00380 | [1] | CASING-VALVE | |
| 407 | XJBN-00381 | [3] | SCREW-HEX | |
| 466 | XJBN-00030 | [1] | PLUG | |
| 490 | XJBN-00032 | [3] | PLUG | |
| K725. | XJBN-00362 | [4] | O-RING | |
| K732. | XJBN-00283 | [1] | O-RING | |
| K. | XJBN-00973 | [1] | SEAL KIT-EPPR CASING | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
