XJBN01260 XJBN-01260 Main Relief Valve Excavator Main Control Valve For HYUNDAI R210LC9
- XJBN01260 XJBN-01260 Main Relief Valve Excavator Main Control Valve For HYUNDAI R210LC9
- Specifiion
| spare parts name | Main relief valve |
| Equipment Model | R210LC9 R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A |
| Parts egory | HYUNDAI Excavator Main Control Valve |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function & Importance
1.The main relief valve regulates the maximum pressure within the hydraulic system.
2.It ensures that the system operates within safe pressure limits, preventing damage to hydraulic components and maintaining optimal performance.
3.If the system pressure exceeds the preset limit, the valve opens to divert excess pressure, protecting the system from overloading.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R210LC9 R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX235L
- More other main parts applicable for HYUNDAI machine
| 3802070 MAIN BEARING SET |
| 100D-7, 33HDLL, HL17C, HL740-3, HL740-3ATM, HL740-7, HL740TM-3, HL740TM-3A, HL740TM-7, HL750, HL750-3, HL750TM3, HL757-7, HL757-7S, HL757TM7, HL760-7, R170W3, R180LC3, R200LC, R200NLC3, R200W2, R200W3... |
| 3802071 MAIN BEARING SET |
| 100D-7, 110D-7E, 33HDLL, HL17C, HL740-3, HL740-3ATM, HL740-7, HL740TM-3, HL740TM-3A, HL740TM-7, HL750, HL750-3, HL750TM3, HL757-7, HL757-7S, HL757TM7, HL760-7, R170W3, R180LC3, R200LC, R200NLC3, R200W... |
| 3802072 MAIN BEARING SET |
| 100D-7, 110D-7E, 33HDLL, HL17C, HL740-3, HL740-3ATM, HL740-7, HL740TM-3, HL740TM-3A, HL740TM-7, HL750, HL750-3, HL750TM3, HL757-7, HL757-7S, HL757TM7, HL760-7, R170W3, R180LC3, R200LC, R200NLC3, R200W... |
| 3945917 MAIN BEARING SET |
| 180DE, 250DE, HL760-9S, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, R300LC9S, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R360LC7, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R... |
| 3802210 MAIN BEARING SET |
| 42HDLL, HL25C, HL760, HL760-3, HL760-3ATM, R280LC, R290LC, R290LC3, R290LC7, R320LC3 |
| XJBN-00996 MAIN PUMP UNIT |
| R305LC7 |
| 31N8-10070 MAIN PUMP |
| R305LC7 |
| XJBN-00997 MAIN PUMP UNIT |
| R305LC7 |
| 31N7-18000P MAIN CONTROL VALVE |
| R250LC7 |
| XKBF-01587 MAIN RELIEF VALVE |
| R250LC7 |
| 31N7-18100P MAIN CONTROL VALVE |
| R250LC7 |
| 31N7-18102P MAIN CONTROL VALVE |
| R250LC7 |
| 31N7-19110 MAIN CONTROL VALVE |
| R250LC7 |
| 31N7-10110 MAIN CONTROL VALVE |
| R250LC7 |
| 31N7-10011 MAIN PUMP ASSY |
| R250LC7 |
| 31N7-10010 MAIN PUMP ASSY |
| R250LC7 |
| XJBN-01532 MAIN RELIEF VALVE ASSY |
| HW210, R210W-9, R210W9A, R210W9AMH, R210W9MH |
| 31Q6-15110 MAIN CONTROL VALVE |
| R210W-9 |

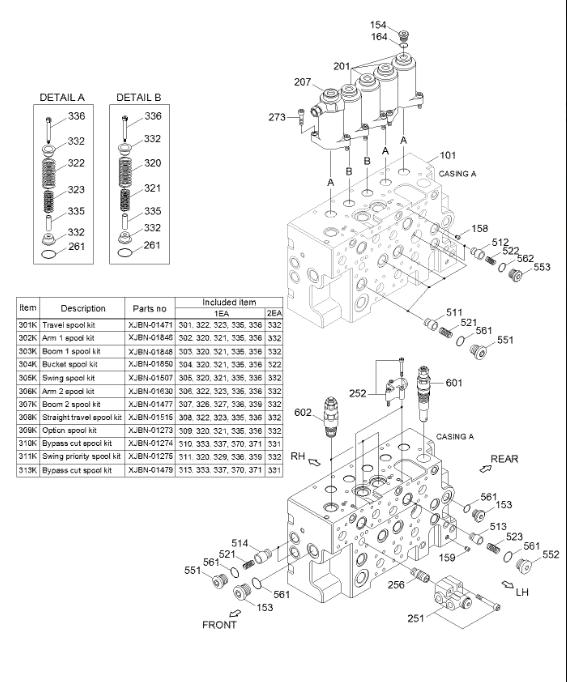

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31K6-16110 | [1] | MAIN CONTROL VALVE | RED COLOR |
| N101. | XJBN-01468 | [1] | HOUSING-P1 | |
| 153 | XJBN-00773 | [2] | PLUG | |
| 154 | XJBN-00814 | [1] | PLUG | |
| N158. | XJBN-00032 | [2] | PLUG | |
| N159. | XJBN-00234 | [1] | PLUG | |
| 164 | XJBN-01357 | [1] | O-RING | |
| 201 | XJBN-01224 | [4] | COVER-SPRING | |
| 207 | XJBN-01502 | [1] | COVER SUB-SPRING | |
| 251 | XJBN-01802 | [1] | CONTROL VALVE-LOGIC | |
| 252 | XJBN-01229 | [2] | SELECTOR VALVE-LOCK | |
| 256 | XJBN-01470 | [1] | POPPET-LOGIC | |
| 261 | XJBN-01234 | [5] | O-RING | |
| 273 | XJBN-00210 | [10] | SCREW-SOCKET | |
| K320. | XJBN-00185 | [1] | SPRING | |
| K321. | XJBN-00180 | [1] | SPRING | |
| K322. | XJBN-01064 | [3] | SPRING | |
| K323. | XJBN-01065 | [3] | SPRING | |
| K332. | XJBN-00194 | [10] | SEAT | |
| K335. | XJBN-00191 | [5] | STOPPER | |
| K336. | XJBN-00190 | [5] | BOLT | |
| 511 | XJBN-00172 | [4] | POPPET | |
| 512 | XJBN-01252 | [2] | POPPET | |
| 513 | XJBN-00170 | [1] | POPPET | |
| 514 | XJBN-01253 | [2] | POPPET | |
| 521 | XJBN-00169 | [6] | SPRING | |
| 522 | XJBN-01254 | [2] | SPRING | |
| 523 | XJBN-00168 | [1] | SPRING | |
| 551 | XJBN-00167 | [6] | PLUG | |
| 552 | XJBN-00166 | [1] | PLUG | |
| 553 | XJBN-01259 | [2] | PLUG | |
| 561 | XJBN-00363 | [10] | O-RING | |
| 562 | XJBN-01366 | [2] | O-RING | |
| 601 | XJBN-01260 | [1] | MAIN RELIEF VALVE | |
| 602 | XJBN-01506 | [3] | PORT RELIEF VALVE | |
| 301K. | XJBN-01471 | [1] | SPOOL KIT-TRAVEL | SEE ILLUST |
| 302K. | XJBN-01846 | [1] | SPOOL KIT-ARM 1 | SEE ILLUST |
| 303K. | XJBN-01848 | [1] | SPOOL KIT-BOOM 1 | SEE ILLUST |
| 304K. | XJBN-01850 | [1] | SPOOL KIT-BUCKET | SEE ILLUST |
| 305K. | XJBN-01507 | [1] | SPOOL KIT-SWING | SEE ILLUST |
| 306K. | XJBN-01630 | [1] | SPOOL KIT-ARM 2 | SEE ILLUST |
| 307K. | XJBN-01477 | [1] | SPOOL KIT-BOOM 2 | SEE ILLUST |
| 308K. | XJBN-01515 | [1] | SPOOL KIT-STRAIGHT TR | SEE ILLUST |
| 309K. | XJBN-01273 | [1] | SPOOL KIT-OPTION | SEE ILLUST |
| 310K. | XJBN-01274 | [1] | SPOOL KIT-BYPASS CUT | SEE ILLUST |
| 311K. | XJBN-01275 | [1] | SPOOL KIT-SWING PRIORITY | SEE ILLUST |
| 313K. | XJBN-01479 | [1] | SPOOL KIT-BYPASS CUT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
