XKAH00403 XKAH-00403 Retainer Plate Excavator Travel Motor For HYUNDAI R110-7 R110-7A
- XKAH00403 XKAH-00403 Retainer Plate Excavator Travel Motor For HYUNDAI R110-7 R110-7A
- Specifiion
| spare parts name | Retainer plate |
| Equipment Model | R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R250LC7 R250LC7A RC215C7 RC215C7H |
| Parts egory | HYUNDAI Excavator Travel Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Role within the Travel Motor
1.Positions internal rollers, thrust bearings, and washer assemblies, maintaining precise alignment and spacing.
2.Prevents axial movement of components, ensuring smooth operation under load.
3.Vital for maintaining gear alignment, minimizing wear, and reducing gear noise or binding.
- Compatible models
3-SERIES CRAWLER EXCAVATOR R210LC3H
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R250LC7 R250LC7A RC215C7 RC215C7H
- More other plate parts applicable for HYUNDAI machine
| 24L3-30710 PLATE |
| 100D-7, 110D-7E, 15BT-9, 16B-9, 180D-9, 22B-9, 22BH-9, 250D-9, 40B-9, 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL7303, HL7303C, HL730T... |
| 21EM-45070 PLATE-VANE |
| 33HDLL, 42HDLL, HX180L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7, ... |
| 81EM-14131 PLATE-LOCK |
| HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RD210-7 |
| XKBH-01621 PLATE-SEAL |
| R210LC7H, R210LC9BH |
| XKBH-01593 PLATE-THRUST |
| R210LC7H, R210LC9BH |
| XKBH-01594 PLATE-THRUST |
| R210LC7H, R210LC9BH |
| XKBH-01595 PLATE-THRUST |
| R210LC7H, R210LC9BH |
| XKBH-01596 PLATE-THRUST |
| R210LC7H, R210LC9BH |
| XKBH-01795 PLATE-THRUST |
| R210LC7H, R210LC9BH |

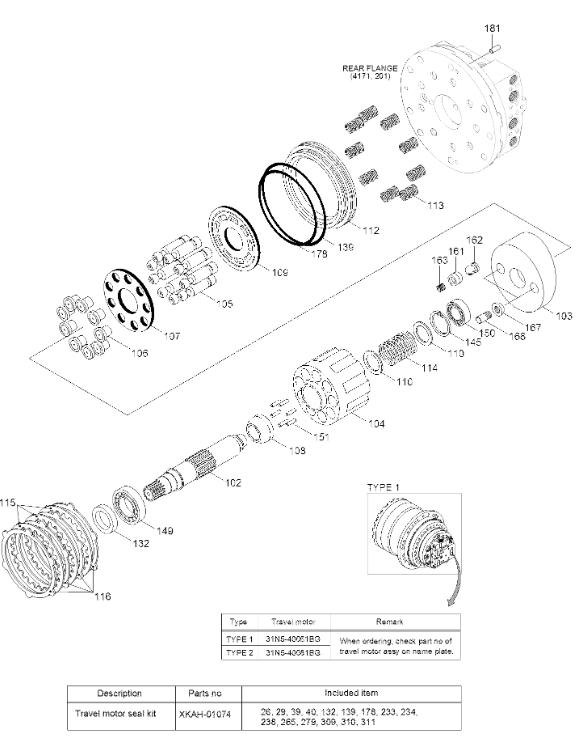

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4139A |
| N*-1. | XKAH-00870 | [1] | TRAVEL ROTARY ASSY | |
| *-5. | XKAH-00891 | [1] | C/BLOCK & PISTON KIT | |
| 104 | XKAH-00892 | [1] | BLOCK-CYL | |
| 110 | XKAH-00407 | [2] | WASHER | |
| 114 | XKAH-00406 | [1] | SPRING | |
| 145 | XKAH-00405 | [1] | RING-SNAP | |
| *-51. | XKAH-00893 | [1] | PISTON ASSY | |
| N105. | XKAH-00894 | [9] | PISTON | |
| N106. | XKAH-00419 | [9] | SHOE | |
| 151 | XKAH-00404 | [6] | ROLLER | |
| 107 | XKAH-00403 | [1] | PLATE-RETAINER | |
| 108 | XKAH-00402 | [1] | BALL-THRUST | |
| *-52. | XKAH-00895 | [1] | PISTON ASSY | |
| N161. | XKAH-00422 | [1] | PISTON | |
| N162. | XKAH-00421 | [1] | SHOE | |
| 163 | XKAH-00094 | [1] | SPRING-2 SPEED | |
| 102 | XKAH-00410 | [1] | SHAFT-MAIN | |
| 103 | XKAH-00896 | [1] | PLATE-SWASH | |
| 109 | XKAH-00897 | [1] | PLATE-TIMING | |
| 115 | XKAH-00399 | [3] | PLATE-FRICTION | |
| 116 | XKAH-00401 | [4] | PLATE-MATING | |
| 112 | XKAH-00898 | [1] | PISTON-PARKING | |
| 113 | XKAH-00397 | [9] | SPRING | |
| K132. | XKAH-00388 | [1] | OIL SEAL | |
| 149 | XKAH-00899 | [1] | BEARING-BALL | |
| 150 | XKAH-00900 | [1] | BEARING-BALL | |
| K139. | XKAH-00396 | [1] | O-RING | |
| K178. | XKAH-00395 | [1] | O-RING | |
| 181 | XKAH-00377 | [2] | PIN-PARALLEL | |
| 167 | XKAH-00095 | [2] | PIVOT | |
| 168 | XKAH-00034 | [2] | PIN-PARALLEL | |
| K. | XKAH-01074 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
