XKAH00410 XKAH-00410 Main Shaft Excavator Travel Motor For HYUNDAI R110-7 R110-7A
- XKAH00410 XKAH-00410 Main Shaft Excavator Travel Motor For HYUNDAI R110-7 R110-7A
- Specifiion
| spare parts name | Main shaft |
| Equipment Model | R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R250LC7 R250LC7A RC215C7 RC215C7H |
| Parts egory | HYUNDAI Excavator Travel Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Maintenance & Replacement
Wear & failure signs:
1.Excessive play or noise in travel motor
2.Leakage from seals around the shaft area
3.Mechanical failure under load
Replacement: Requires full travel motor removal and disassembly. Always inspect associated components—bearings, seals, thrust plates, and gears—for wear and replace as needed.
- Compatible models
3-SERIES CRAWLER EXCAVATOR R210LC3H
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R250LC7 R250LC7A RC215C7 RC215C7H
- More other shaft parts applicable for HYUNDAI machine
| 131155 SHAFT |
| R180LC3, R200NLC3, R210LC3, R210LC3H |
| 112568A SHAFT |
| R210ECONO, R210LC3, R210LC3H, R210LC3LL |
| 131134C SHAFT-CRANK |
| R210LC3, R210LC3H |
| 124568 SHAFT-DRIVING(F) |
| R210LC3H |
| 124569 SHAFT-DRIVING(R) |
| R210LC3H |
| 39Q6-12121 SHAFT-DRIVE |
| HW210, HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W9A, R210W9AMH, R215LC7, R220LC9A, R2... |
| XKBH-01810 SHAFT-ROCKER |
| R210LC7H, R210LC9BH |
| XKBH-01793 SHAFT-CAM |
| R210LC7H, R210LC9BH |
| XKBH-01787 SHAFT-IDLER 1 |
| R210LC7H, R210LC9BH |

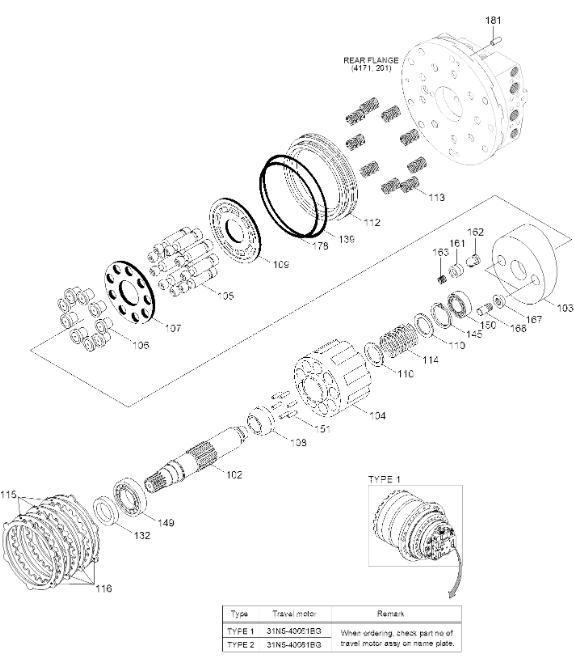

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4139A |
| N*-1. | XKAH-00870 | [1] | TRAVEL ROTARY ASSY | |
| *-5. | XKAH-00891 | [1] | C/BLOCK & PISTON KIT | |
| 104 | XKAH-00892 | [1] | BLOCK-CYL | |
| 110 | XKAH-00407 | [2] | WASHER | |
| 114 | XKAH-00406 | [1] | SPRING | |
| 145 | XKAH-00405 | [1] | RING-SNAP | |
| *-51. | XKAH-00893 | [1] | PISTON ASSY | |
| N105. | XKAH-00894 | [9] | PISTON | |
| N106. | XKAH-00419 | [9] | SHOE | |
| 151 | XKAH-00404 | [6] | ROLLER | |
| 107 | XKAH-00403 | [1] | PLATE-RETAINER | |
| 108 | XKAH-00402 | [1] | BALL-THRUST | |
| *-52. | XKAH-00895 | [1] | PISTON ASSY | |
| N161. | XKAH-00422 | [1] | PISTON | |
| N162. | XKAH-00421 | [1] | SHOE | |
| 163 | XKAH-00094 | [1] | SPRING-2 SPEED | |
| 102 | XKAH-00410 | [1] | SHAFT-MAIN | |
| 103 | XKAH-00896 | [1] | PLATE-SWASH | |
| 109 | XKAH-00897 | [1] | PLATE-TIMING | |
| 115 | XKAH-00399 | [3] | PLATE-FRICTION | |
| 116 | XKAH-00401 | [4] | PLATE-MATING | |
| 112 | XKAH-00898 | [1] | PISTON-PARKING | |
| 113 | XKAH-00397 | [9] | SPRING | |
| K132. | XKAH-00388 | [1] | OIL SEAL | |
| 149 | XKAH-00899 | [1] | BEARING-BALL | |
| 150 | XKAH-00900 | [1] | BEARING-BALL | |
| K139. | XKAH-00396 | [1] | O-RING | |
| K178. | XKAH-00395 | [1] | O-RING | |
| 181 | XKAH-00377 | [2] | PIN-PARALLEL | |
| 167 | XKAH-00095 | [2] | PIVOT | |
| 168 | XKAH-00034 | [2] | PIN-PARALLEL | |
| K. | XKAH-01074 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
