XKAQ-00126 XKAQ00126 Carrier 1 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
- XKAQ-00126 XKAQ00126 Carrier 1 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
- Specifiion
| spare parts name | Carrier 1 |
| Equipment Model | R250LC7 R250LC7A |
| Parts egory | HYUNDAI Excavator Swing gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Maintenance & Replacement
1.Signs of Wear: If you experience unusual noises, jerky movements, or reduced swing performance, the planetary carrier assembly may be worn or damaged.
2.Replacement: It's advisable to replace the carrier assembly with the OEM part number XKAQ-00126 to ensure compatibility and maintain the integrity of the swing system.
3.Aftermarket Options: While aftermarket parts are available, always verify their compatibility and quality to avoid potential issues.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S RB260LC9S
- More other carrier parts applicable for HYUNDAI machine
| XKAQ-00496 CARRIER-NO.1 |
| R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q8-42190 CARRIER 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42270 CARRIER 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42180 CARRIER ASST KIT 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42260 CARRIER ASST KIT 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| XKAQ-00965 CARRIER 3 ASSY |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00966 CARRIER 3 |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| 39Q7-12180 CARRIER 2 |
| HX260L, HX520L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q7-12210 CARRIER 1 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q7-12170 CARRIER ASSY 2 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q7-12200 CARRIER ASSY 1 |
| HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAQ-00974 CARRIER ASSY 2 |
| R250LC9, R250LC9A, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00121 CARRIER 2 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAH-00449 CARRIER |
| R210LC3H, R210LC7 |
| XKAQ-00653 CARRIER 1 ASSY |
| R110-7, R110-7A, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |

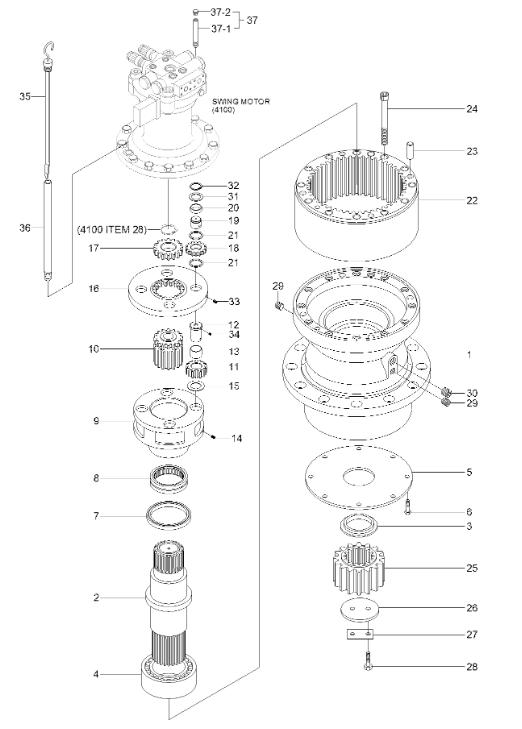

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31EN-10070 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31EN-10071 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00632 | [1] | CASING | |
| 1 | XKAQ-00633 | [1] | CASING | |
| 2 | XKAQ-00115 | [1] | SHAFT | |
| 3 | XKAQ-00116 | [1] | SPACER | |
| 4 | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00118 | [1] | PLATE-COVER | |
| 6 | XKAQ-00064 | [8] | BOLT-HEX | |
| 7 | XKAQ-00119 | [1] | SEAL-OIL | |
| 8 | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 9 | XKAQ-00121 | [1] | CARRIER 2 | |
| 10 | XKAQ-00122 | [1] | GEAR-SUN 2 | |
| 10 | XKAQ-00634 | [1] | GEAR-SUN 2 | |
| 11 | XKAQ-00123 | [4] | GEAR-PLANET 2 | |
| 12 | XKAQ-00124 | [4] | PIN 2 | |
| N13. | XKAQ-00533 | [4] | BUSHING 2 | |
| N34. | @ | [4] | PIN-SPRING | |
| 14 | XKAQ-00050 | [4] | PIN-SPRING | |
| 15 | XKAQ-00071 | [4] | WASHER-THRUST | |
| 16 | XKAQ-00126 | [1] | CARRIER 1 | |
| 17 | XKAQ-00127 | [1] | GEAR-SUN 1 | |
| 18 | XKAQ-00128 | [4] | GEAR-PLANET 1 | |
| 19 | XKAQ-00019 | [4] | PIN 1 | |
| 20 | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 21 | XKAQ-00129 | [4] | NEEDLE CAGE | |
| 22 | XKAQ-00635 | [1] | GEAR-RING | |
| 23 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 24 | XKAQ-00131 | [12] | BOLT-SOCKET | |
| 25 | XKAQ-00132 | [1] | GEAR-PINION | |
| 26 | XKAQ-00296 | [1] | PLATE-LOCK | |
| 27 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 28 | XKAQ-00042 | [2] | BOLT-HEX | |
| 29 | XKAQ-00066 | [2] | PLUG | |
| 30 | XKAQ-00049 | [1] | PLUG | |
| 31 | XKAQ-00040 | [4] | PLATE-SIDE 2 | |
| 32 | XKAQ-00041 | [4] | RING-STOP | |
| 33 | XKAQ-00048 | [4] | PIN-SPRING | |
| 34 | XKAQ-00133 | [1] | PIN-SPRING | |
| 35 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 35 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 36 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 36 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 37 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 37-1. | @ | [1] | POST | |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
