XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7
- XKAQ-00415 XKAQ00415 Pin 1 Excavator Swing Gear For HYUNDAI R360LC7A R370LC7 R450LC7
- Specifiion
| spare parts name | Pin 1 |
| Equipment Model | R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7 |
| Parts egory | HYUNDAI Excavator Swing gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1. Positioning function: used to determine the relative position of each component in the gearbox to ensure assembly accuracy. For example, in a planetary transmission gearbox, the long pin can pre-position the high-speed low-load end housing, the inner gear ring, and the low-speed high-load end housing to avoid the problem of poor positioning accuracy of the stopper and facilitate the installation of other connectors.
2. Transmit torque: Some pins can participate in the transmission of torque, transferring power from one component to another to ensure the normal operation of the gearbox. For example, in a wind power gearbox, the internal threaded cylindrical pin installed between the housing and the gear ring can transmit torque between the two to ensure the power transmission of the gearbox.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RD510LC-7
9-SERIES CRAWLER EXCAVATOR R1200-9 R160LC9A R180LC9A R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R480C9MH R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S R800LC-9 R800LC9FS RB160LC9S RB220LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R180W9A R210W-9 R210W9A R210W9AMH R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L
- More other pin parts applicable for HYUNDAI machine
| 3904483 PIN-DOWEL |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7... |
| 3950549 PIN-PISTON |
| 180DE, 250D-9, 250DE, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A |
| 4083244 PIN-PISTON |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| XKDA-00479 PIN |
| R520LC9S |
| XKDA-00480 PIN |
| R520LC9S |
| XKDA-00481 PIN |
| R520LC9S |
| XKDA-00490 PIN |
| R520LC9S |
| XKDA-00572 PIN |
| R520LC9S |
| XKDA-00573 PIN |
| R520LC9S |
| XKDA-00574 PIN |
| R520LC9S |
| XKDA-00575 PIN |
| R520LC9S |
| 61QD-00030 PIN WA |
| R800LC-9 |

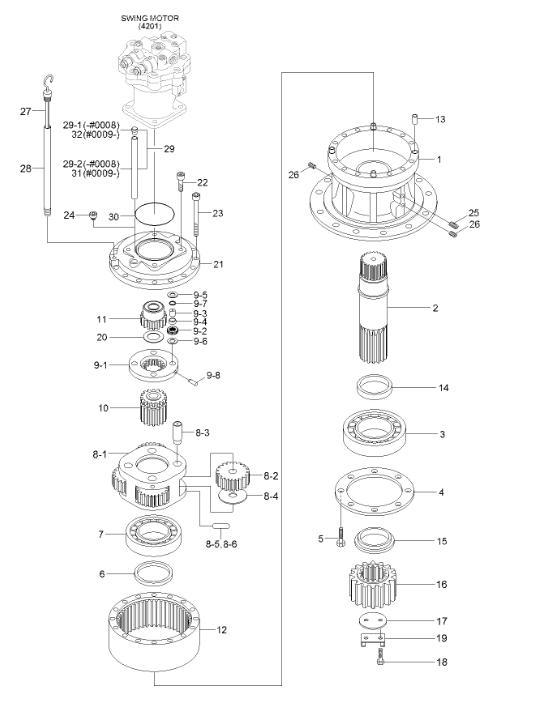

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [2] | SWING MOTOR ASSY | SEE 4200 |
| *-2. | 31QE-10140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QE-10141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QE-10142 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QE-10143 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31QE-10142AR | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00406 | [1] | CASING | |
| 2 | XKAQ-00458 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00146 | [1] | BEARING-ROLLER | |
| 4 | XKAQ-00147 | [1] | PLATE-COVER | |
| 5 | XKAQ-00148 | [8] | BOLT-HEX | |
| 6 | XKAQ-00149 | [1] | SEAL-OIL | |
| 7 | XKAQ-00791 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00792 | [1] | CARRIER ASSY 2 | |
| 8 | XKAQ-00808 | [1] | CARRIER ASSY 2 | |
| 8-1. | XKAQ-00793 | [1] | CARRIER 2 | |
| 8-2. | XKAQ-00460 | [4] | GEAR-PLANET 2 | |
| 8-3. | XKAQ-00254 | [4] | PIN 2 | |
| 8-3. | XKAQ-00410 | [4] | PIN 2 | |
| 8-4. | XKAQ-00411 | [4] | WASHER | |
| 8-5. | XKAQ-00050 | [4] | PIN-SPRING | |
| 8-6. | XKAQ-00232 | [4] | PIN-SPRING | |
| 9 | XKAQ-00412 | [1] | CARRIER ASSY 1 | |
| 9-1. | XKAQ-00413 | [1] | CARRIER 1 | |
| 9-2. | XKAQ-00414 | [4] | GEAR-PLANETARY 1 | |
| 9-3. | XKAQ-00415 | [4] | PIN 1 | |
| 9-4. | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 9-5. | XKAQ-00416 | [4] | PLATE 2-SIDE | |
| 9-6. | XKAQ-00417 | [4] | PLATE 1-SIDE | |
| 9-7. | XKAQ-00041 | [4] | RING-STOP | |
| 9-8. | XKAQ-00048 | [4] | PIN-SPRING | |
| 10 | XKAQ-00463 | [1] | SUN GEAR 2 | |
| 11 | XKAQ-00418 | [1] | SUN GEAR 1 | |
| 12 | XKAQ-00420 | [1] | GEAR-RING | |
| 13 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 14 | XKAQ-00171 | [1] | RING-SPACER | |
| 15 | XKAQ-00421 | [1] | SPACER | |
| 16 | XKAQ-00778 | [1] | GEAR-PINION | |
| 17 | XKAQ-00164 | [1] | PLATE-LOCK | |
| 18 | XKAQ-00042 | [4] | BOLT-HEX | |
| 19 | XKAQ-00292 | [4] | WASHER-LOCK | |
| 20 | XKAQ-00260 | [1] | RING-THRUST | |
| 21 | XKAQ-00465 | [1] | COVER | |
| 21 | XKAQ-00750 | [1] | COVER | |
| 21 | XKAQ-00982 | [1] | COVER | |
| 22 | XKAQ-00170 | [4] | BOLT-SOCKET | |
| 23 | XKAQ-00425 | [16] | BOLT-SOCKET | |
| 24 | XKAQ-00155 | [1] | PLUG-SOCKET | |
| 25 | XKAQ-00794 | [1] | PLUG | |
| 26 | XKAQ-00274 | [2] | PLUG | |
| 27 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 28 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 29 | XKAQ-00798 | [1] | AIR BREATHER ASSY | |
| 29-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| 29-2. | XKAQ-00799 | [1] | POST AIR BREATHER | |
| 30 | XKAQ-00751 | [1] | O-RING | |
| 31 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 32 | XKAQ-00797 | [1] | CAP-ARI BREATHER |
