XKAQ00032 XKAQ-00032 Oil Seal Excavator Swing Motor For HYUNDAI R170W7 R170W7A R200W7
- XKAQ00032 XKAQ-00032 Oil Seal Excavator Swing Motor For HYUNDAI R170W7 R170W7A R200W7
- Specifiion
| spare parts name | Oil seal |
| Equipment Model | R170W7 R170W7A R200W7 R200W7A |
| Parts egory | HYUNDAI Excavator Swing Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Maintenance & Replacement
1.Sealing lubriing oil:
It can separate the lubried parts in the transmission components from the power - output parts, preventing the leakage of lubriing oil. It ensures that the lubriing oil remains in the designated area, providing good lubriion for the components of the swing reduction gear, reducing friction and wear, and improving the efficiency and service life of the components.
2.Isolating foreign matters:
In addition to preventing oil leakage, the oil seal can also prevent external dust, dirt, water and other foreign matters from entering the internal components of the swing reduction gear. This helps to keep the internal working environment clean, avoiding the damage to the components caused by foreign matters, and ensuring the stable operation of the excavator.
3.Maintaining working state:
By effectively sealing and isolating, the oil seal helps to keep the swing reduction gear and other related components of the excavator in a good working state, ensuring the stable operation of the excavator, and enabling it to maintain reliable performance during various construction operations.
- Compatible models
7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R450LC7 R450LC7A R500LC7 R500LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD510LC-7
- More other seal parts applicable for HYUNDAI machine
| 31Y1-28790 SEAL KIT |
| HW210, HX220L, HX220NL, HX235L, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S |
| 31Y1-29100 SEAL KIT |
| R210LC9, R380LC9DM |
| 31Y1-30111 SEAL KIT |
| HX300L, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R520LC9 |
| 31Y1-30290 SEAL KIT |
| R290LC9, R300LC9A, R300LC9S, R300LC9SH, R380LC9DM, R520LC9 |
| XKAH-01290 SEAL-FLOATING |
| R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| 31Y1-18420 SEAL KIT |
| R450LC7 |
| 31Y1-24791 SEAL KIT |
| R450LC7, R450LC7A |
| 31Y1-24790 SEAL KIT |
| R450LC7, R450LC7A |
| 31Y1-24792 SEAL KIT |
| R450LC7, R450LC7A |
| 31Y1-18430 SEAL KIT |
| R450LC7 |
| 31Y1-24670 SEAL KIT |
| R450LC7, R450LC7A |
| 31Y1-24671 SEAL KIT |
| R450LC7, R450LC7A |

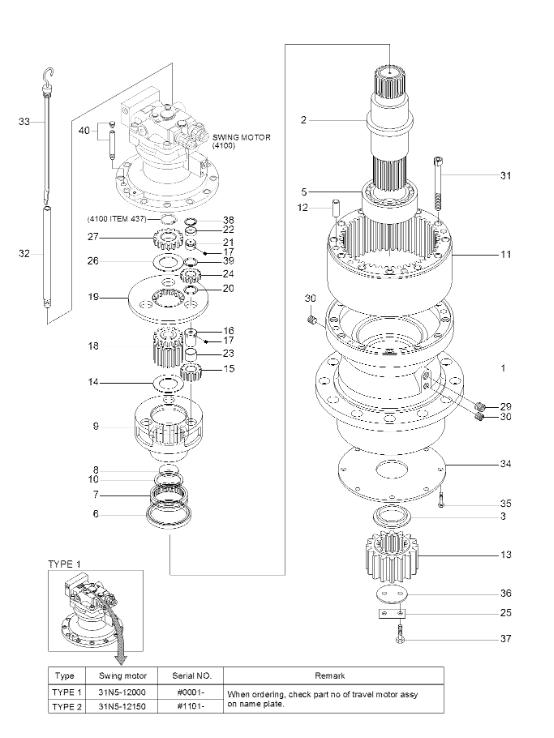

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | |
| *-2. | 31N6-10160 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31N6-10161 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00331 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 5 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00032 | [1] | SEAL-OIL | |
| 7 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00647 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00076 | [1] | PLATE-THRUST | |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00074 | [1] | RING-STOP | |
| 11 | XKAQ-00284 | [1] | GEAR-RING | |
| 11 | XKAQ-00779 | [1] | GEAR-RING | |
| 12 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13 | XKAQ-00781 | [1] | GEAR-PINION | |
| 13 | XKAQ-00976 | [1] | GEAR-PINION | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16 | XKAQ-00070 | [3] | PIN 2 | INCL 23 |
| 17 | XKAQ-00048 | [6] | PIN-SPRING | |
| 18 | XKAQ-00011 | [1] | GEAR-SUN 2 | |
| 19 | XKAQ-00015 | [1] | CARRIER 1 | |
| 20 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 21 | XKAQ-00019 | [3] | PIN 1 | |
| 22 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| N23. | @ | [3] | BUSHING 2 | |
| 24 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 26 | XKAQ-00068 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 29 | XKAQ-00049 | [1] | PLUG | |
| 30 | XKAQ-00066 | [2] | PLUG | |
| 31 | XKAQ-00065 | [2] | BOLT-SOCKET | |
| 32 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 33 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 34 | XKAQ-00031 | [1] | PLATE-COVER | |
| 35 | XKAQ-00064 | [8] | BOLT-HEX | |
| 36 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37 | XKAQ-00042 | [2] | BOLT-HEX | |
| 38 | XKAQ-00041 | [3] | RING-STOP | |
| 39 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| 40 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
