XKAQ00034 XKAQ-00034 Bar Gauge Excavator Swing Motor For HYUNDAI R140W7 R170W7 R170W7A
- XKAQ00034 XKAQ-00034 Bar Gauge Excavator Swing Motor For HYUNDAI R140W7 R170W7 R170W7A
- Specifiion
| spare parts name | Bar gauge |
| Equipment Model | R140W7 R170W7 R170W7A R200W7 |
| Parts egory | HYUNDAI Excavator Swing Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Maintenance & Replacement
1.Measuring the oil level: There are obvious upper and lower limit marks on the dipstick. By inserting the dipstick into the oil filling port, the height of the static oil level can be measured to determine whether the oil level in the engine is within a reasonable range and ensure that the excavator engine has an appropriate amount of oil for lubriion.
2.Assisted judgment of engine operating conditions: Experienced operators can observe changes in the color and texture of the oil through the dipstick. If the color of the oil is abnormally darkened, emulsified, or contains impurities, it may mean that there is a fault in the engine, such as coolant leakage, piston ring wear, etc., which can provide timely insight into the engine operating status and troubleshoot potential problems as soon as possible.
- Compatible models
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R170W7A R200W7
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210NLC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A
- More other bar parts applicable for HYUNDAI machine
| 71NA-56600 BAR-TORSION |
| R320LC7A, R360LC7A |
| 71NA-56600BG BAR-TORSION |
| R320LC7A, R360LC7A |
| XKAY-01722 BAR-HANDLE |
| HX180L, HX300L, R1200-9, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180... |
| 81N6-14111 BAR-TIE |
| HX220L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| 81N8-14111 BAR-TIE |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9S, R330LC9SH, RD340LC-7 |
| 81N8-14112 BAR-TIE |
| HX260L, HX300L, HX330L, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R305LC7, R320LC7, R320LC9, R330LC9A, R330LC9S, R330LC9SH, ... |
| XKBN-01064 BAR-SQUARE |
| BREAKERS, HX260L, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 81N7-14111 BAR-TIE |
| R210LC7, R210LC7A, R210LC7H, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 11Q7-43380 BAR-CROSS |
| R250LC9A |
| XKBN-01138 BAR-SQUARE |
| BREAKERS, HX300L, HX330L, HX380L, HX430L, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R360LC9, R380LC9A, R380LC9SH, R390LC9, R430LC9, R430LC9A, R430LC9SH |
| 11Q8-43650 BAR-CROSS |
| R300LC9A |
| 81E6-20181 BAR-TIE |
| R110-7, R110-7A, R125LCR-9A, R140LC-7, R145CR9, R145CR9A, RB140LC9S, RD110-7, RD140LC9 |

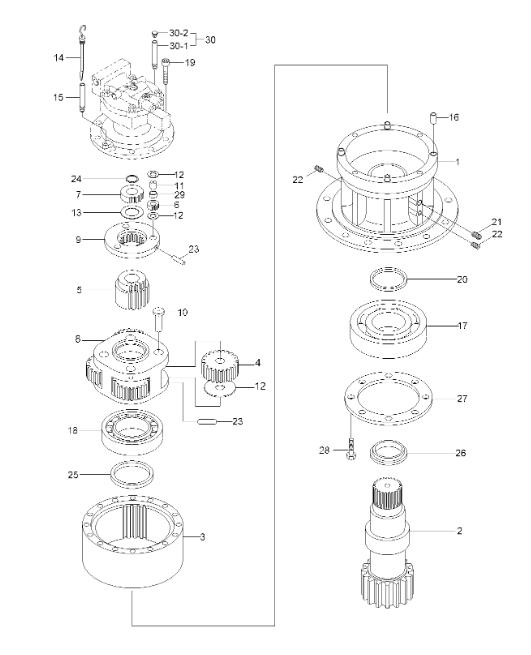

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31E6-12030 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00250 | [1] | CASING | |
| 2 | XKAQ-00249 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00102 | [1] | GEAR-RING | |
| 5 | XKAQ-00278 | [1] | GEAR-SUN NO.2 | |
| *-21. | XKAQ-00271 | [1] | CARRIER NO.1 ASSY | |
| 6 | XKAQ-00099 | [3] | GEAR-PLANET NO.1 | |
| 7 | XKAQ-00277 | [1] | GEAR-SUN NO.1 | |
| 9 | XKAQ-00096 | [1] | CARRIER NO.1 | |
| 11 | XKAQ-00094 | [3] | PIN ASSY NO.1 | |
| 12 | XKAQ-00093 | [6] | WASHER-THRUST(B) | |
| 13 | XKAQ-00057 | [1] | PLATE-SIDE 1 | |
| 23 | XKAQ-00086 | [3] | PIN-SPRING | |
| 24 | XKAQ-00085 | [4] | RING-STOP | |
| 29 | XKAQ-00080 | [3] | CAGE-NEEDLE | |
| *-22. | XKAQ-00272 | [1] | CARRIER NO.2 ASSY | |
| 4 | XKAQ-00101 | [4] | GEAR-PLANET NO.2 | |
| 8 | XKAQ-00097 | [1] | CARRIER NO.2 | |
| 10 | XKAQ-00095 | [4] | PIN ASSY NO.2 | |
| 12 | XKAQ-00093 | [4] | WASHER-THRUST(B) | |
| 23 | XKAQ-00086 | [4] | PIN-SPRING | |
| 14 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 15 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 16 | XKAQ-00091 | [2] | PIN-KNOCK | |
| 17 | XKAQ-00090 | [1] | BEARING-SPH ROLLER | |
| 18 | XKAQ-00089 | [1] | BEARING-CYL ROLLER | |
| 19 | XKAQ-00088 | [10] | BOLT-SOCKET | |
| 20 | XKAQ-00087 | [1] | SEAL-OIL | |
| 21 | XKAQ-00049 | [1] | PLUG-PRESSURE | |
| 22 | XKAQ-00066 | [2] | PLUG | |
| 25 | XKAQ-00084 | [1] | RING-STOP | |
| 26 | XKAQ-00083 | [1] | SPACER | |
| 27 | XKAQ-00082 | [1] | PLATE-COVER | |
| 28 | XKAQ-00081 | [6] | BOLT-HEX | |
| 30 | XKAQ-00142 | [1] | AIR BREATHER ASSY | |
| 30-1. | HHI13-WP30 | [1] | POST | |
| 30-2. | HHI13-WP31 | [1] | CAP-BREATHER |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
