XKAQ00070 XKAQ-00070 Pin Excavator Swing Motor For HYUNDAI R170W7 R170W7A R200W7
- XKAQ00070 XKAQ-00070 Pin Excavator Swing Motor For HYUNDAI R170W7 R170W7A R200W7
- Specifiion
| spare parts name | Pin |
| Equipment Model | R170W7 R170W7A R200W7 R200W7A |
| Parts egory | HYUNDAI Excavator Swing Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1. Positioning function: used to determine the relative position of each component in the gearbox to ensure assembly accuracy. For example, in a planetary transmission gearbox, the long pin can pre-position the high-speed low-load end housing, the inner gear ring, and the low-speed high-load end housing to avoid the problem of poor positioning accuracy of the stopper and facilitate the installation of other connectors.
2. Transmit torque: Some pins can participate in the transmission of torque, transferring power from one component to another to ensure the normal operation of the gearbox. For example, in a wind power gearbox, the internal threaded cylindrical pin installed between the housing and the gear ring can transmit torque between the two to ensure the power transmission of the gearbox.
- Compatible models
7 SERIES WHEEL EXCAVATOR R170W7 R170W7A R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R450LC7 R450LC7A R500LC7 R500LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD510LC-7
- More other pin parts applicable for HYUNDAI machine
| 3904483 PIN-DOWEL |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7... |
| 3950549 PIN-PISTON |
| 180DE, 250D-9, 250DE, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R320LC7A, R320LC9, R330LC9A, R360LC7A, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9, R430LC9A |
| S491-060252 PIN-CLEVIS |
| 35D-9, 35D-9A, 35D-9K, 35D-9S, 60L-7A, DX20, HC25E, HC50E, HDF50-3, HDF80-3, R110-7, R140LC-7, R140W7, R160LC7, R170W7, R180LC7, R200W7, R210LC7, R210NLC7, R250LC7, R25Z-9A, R25Z-9AK, R25Z-9AKCA, R25Z... |
| 4083244 PIN-PISTON |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| XKDA-00480 PIN |
| R520LC9S |
| XKDA-00481 PIN |
| R520LC9S |
| XKDA-00490 PIN |
| R520LC9S |
| XKDA-00572 PIN |
| R520LC9S |
| XKDA-00573 PIN |
| R520LC9S |
| XKDA-00574 PIN |
| R520LC9S |
| XKDA-00575 PIN |
| R520LC9S |
| 61QD-00030 PIN WA |
| R800LC-9 |

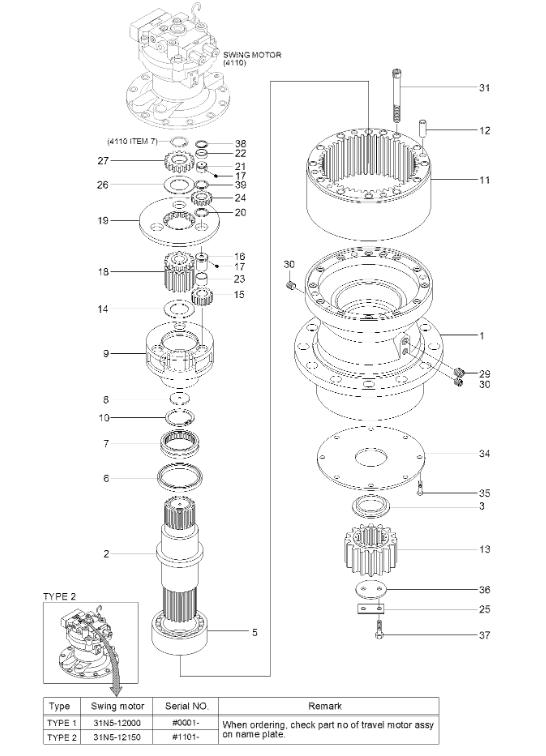

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | |
| *-2. | 31N6-10180 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 2 | XKAQ-00331 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 5 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00032 | [1] | SEAL-OIL | |
| 7 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00647 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00076 | [1] | PLATE-THRUST | |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00074 | [1] | RING-STOP | |
| 11 | XKAQ-00284 | [1] | GEAR-RING | |
| 11 | XKAQ-00779 | [1] | GEAR-RING | |
| 12 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13 | XKAQ-00781 | [1] | GEAR-PINION | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16 | XKAQ-00070 | [3] | PIN | INCL 23 |
| 17 | XKAQ-00048 | [6] | PIN-SPRING | |
| 18 | XKAQ-00011 | [1] | GEAR-SUN 2 | |
| 19 | XKAQ-00015 | [1] | CARRIER 1 | |
| 20 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 21 | XKAQ-00019 | [3] | PIN 1 | |
| 22 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| N23. | XKAQ-00533 | [3] | BUSHING 2 | |
| 24 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 26 | XKAQ-00068 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 29 | XKAQ-00049 | [1] | PLUG | |
| 30 | XKAQ-00066 | [2] | PLUG | |
| 31 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 34 | XKAQ-00031 | [1] | PLATE-COVER | |
| 35 | XKAQ-00064 | [8] | BOLT-HEX | |
| 36 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37 | XKAQ-00042 | [2] | BOLT-HEX | |
| 38 | XKAQ-00041 | [3] | RING-STOP | |
| 39 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4110 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
