XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
- XKAQ00123 XKAQ-00123 Planet Gear 2 Excavator Swing Gear For HYUNDAI R250LC7 R250LC7A
- Specifiion
| spare parts name | Planet gear 2 |
| Equipment Model | R250LC7 R250LC7A |
| Parts egory | HYUNDAI Excavator Swing gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Speed Reduction and Torque Increase: This is one of the main functions of planet gears. By means of the meshing relationship between the sun gear, planet gears, and ring gear, the high - speed and low - torque power from the engine or motor can be converted into low - speed and high - torque power, providing sufficient driving force for the movement of the excavator and the operation of various working devices, enabling it to complete heavy - duty operations.
2.Power Shunt: Planet gears can distribute the input power to multiple planet gears, and each planet gear shares the load. This not only improves the load - bearing capacity of the gear system but also makes the power transmission more balanced and stable, reducing the wear and tear of single gears and prolonging the service life of the entire transmission system.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S RB260LC9S
- More other gear parts applicable for HYUNDAI machine
| 3929027 GEAR-CRANKSHAFT |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| 4896380 GEAR-CAMSHAFT |
| HL760-7A, HL760-9, HL760-9SB, R200W7A, R210W-9, R210W9MH, R250LC7A |
| M230X-00671 GEAR ASSY |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 4893389 GEAR-FUEL PUMP |
| R200W7A, R210LC7A, R210LC9, R210NLC7A, R210NLC9, R250LC7A |
| 39Q5-12270 GEAR-PLANETARY 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| 39Q5-12320 GEAR-SUN 1 |
| HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S |
| ZGAQ-04882 GEAR-RING |
| R160W9A, R170W9, R180W9A, R180W9S |
| ZGAQ-01991 GEAR SHIFT SENSOR 1 |
| R200W7 |
| ZGAQ-01992 GEAR SHIFT SENSOR 3 |
| R200W7, R210W9S |
| XKAQ-00405 GEAR-SUN 2 |
| R210LC9 |
| ZGAQ-02404 GEAR SHIFT SENSOR 1 |
| R210W9S |

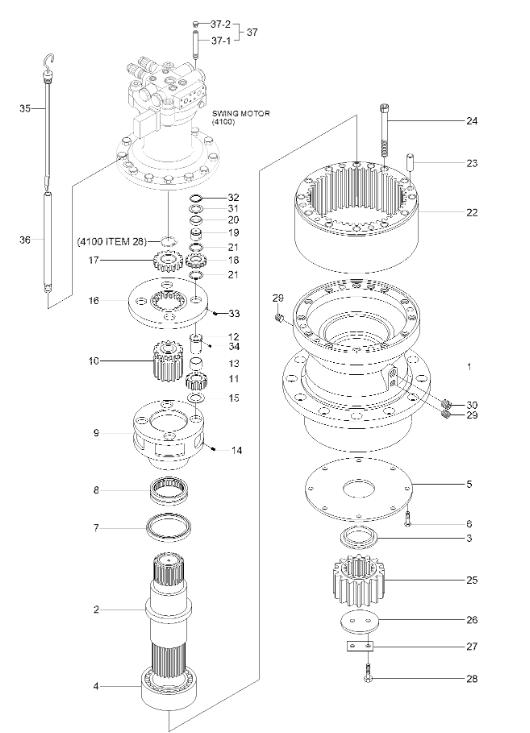

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31EN-10070 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31EN-10071 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00632 | [1] | CASING | |
| 1 | XKAQ-00633 | [1] | CASING | |
| 2 | XKAQ-00115 | [1] | SHAFT | |
| 3 | XKAQ-00116 | [1] | SPACER | |
| 4 | XKAQ-00117 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00118 | [1] | PLATE-COVER | |
| 6 | XKAQ-00064 | [8] | BOLT-HEX | |
| 7 | XKAQ-00119 | [1] | SEAL-OIL | |
| 8 | XKAQ-00120 | [1] | BEARING-ROLLER | |
| 9 | XKAQ-00121 | [1] | CARRIER 2 | |
| 10 | XKAQ-00122 | [1] | GEAR-SUN 2 | |
| 10 | XKAQ-00634 | [1] | GEAR-SUN 2 | |
| 11 | XKAQ-00123 | [4] | GEAR-PLANET 2 | |
| 12 | XKAQ-00124 | [4] | PIN 2 | |
| N13. | XKAQ-00533 | [4] | BUSHING 2 | |
| N34. | @ | [4] | PIN-SPRING | |
| 14 | XKAQ-00050 | [4] | PIN-SPRING | |
| 15 | XKAQ-00071 | [4] | WASHER-THRUST | |
| 16 | XKAQ-00126 | [1] | CARRIER 1 | |
| 17 | XKAQ-00127 | [1] | GEAR-SUN 1 | |
| 18 | XKAQ-00128 | [4] | GEAR-PLANET 1 | |
| 19 | XKAQ-00019 | [4] | PIN 1 | |
| 20 | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 21 | XKAQ-00129 | [4] | NEEDLE CAGE | |
| 22 | XKAQ-00635 | [1] | GEAR-RING | |
| 23 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 24 | XKAQ-00131 | [12] | BOLT-SOCKET | |
| 25 | XKAQ-00132 | [1] | GEAR-PINION | |
| 26 | XKAQ-00296 | [1] | PLATE-LOCK | |
| 27 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 28 | XKAQ-00042 | [2] | BOLT-HEX | |
| 29 | XKAQ-00066 | [2] | PLUG | |
| 30 | XKAQ-00049 | [1] | PLUG | |
| 31 | XKAQ-00040 | [4] | PLATE-SIDE 2 | |
| 32 | XKAQ-00041 | [4] | RING-STOP | |
| 33 | XKAQ-00048 | [4] | PIN-SPRING | |
| 34 | XKAQ-00133 | [1] | PIN-SPRING | |
| 35 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 35 | XKAQ-00034 | [1] | BAR-GAUGE | |
| 36 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 36 | XKAQ-00035 | [1] | PIPE-GAUGE | |
| 37 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 37-1. | @ | [1] | POST | |
| 37-2. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
