XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A
- XKAQ00212 XKAQ-0212 Motor Ring Excavator Final Drive For HYUNDAI R250LC7 R250LC7A
- Specifiion
| spare parts name | Motor ring |
| Equipment Model | R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7 |
| Parts egory | HYUNDAI Excavator Final Drive |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Prevent oil leakage: Oil seals are usually installed at the joints of the rotating shaft or other moving parts of the excavator. They can separate the parts that need lubriion from the outside world, prevent lubriing oil or hydraulic oil from leaking from these parts, avoid oil waste, and ensure the normal operation of the lubriion system and hydraulic system.
2.Maintain system pressure: In the hydraulic system of the excavator, oil seals help maintain the pressure in the system. Hydraulic oil drives each component to work under pressure. The oil seal prevents hydraulic oil leakage by forming a tight seal, so that the hydraulic system can maintain sufficient pressure to ensure the excavation force of the excavator and the normal operation of each action.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH
- More other carrier parts applicable for HYUNDAI machine
| XKAQ-00485 CARRIER-NO.2 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAQ-00495 CARRIER ASSY-NO.1 |
| R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| XKAQ-00787 CARRIER-NO.1 |
| R250LC7, R250LC7A |
| 39Q8-42190 CARRIER 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42270 CARRIER 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42180 CARRIER ASST KIT 1 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| 39Q8-42260 CARRIER ASST KIT 2 |
| HX260L, HX300L, HX330L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, RD340LC-7 |
| XKAQ-00965 CARRIER 3 ASSY |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |
| XKAQ-00966 CARRIER 3 |
| R250LC7, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC7, R300LC9A, R300LC9S, R300LC9SH, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R330LC9SH |

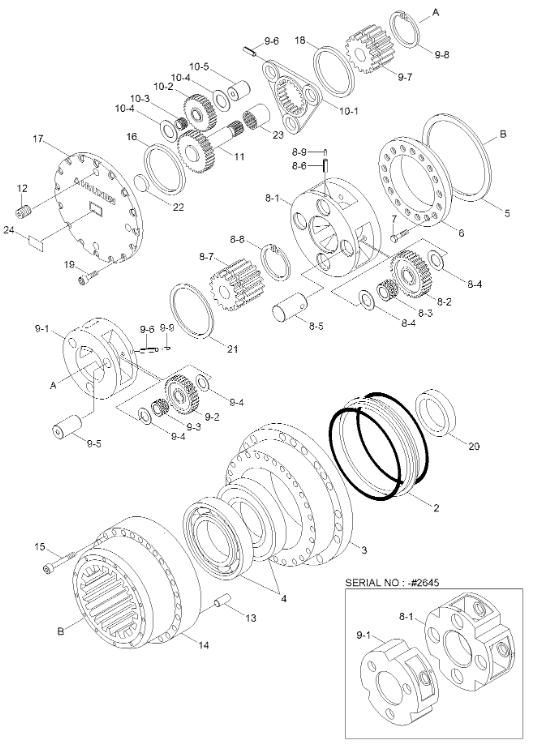

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31N8-40070 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40071BG | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40072 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40073 | [1] | T/REDUCTION GEAR | |
| *-2. | 31N8-40074 | [1] | T/REDUCTION GEAR | |
| 2 | XKAQ-00173 | [1] | SEAL-FLOATING | |
| 2 | XKAQ-00803 | [1] | SEAL-FLOATING | |
| 3 | XKAQ-00174 | [1] | HOUSING | |
| 3 | XKAQ-00802 | [1] | HOUSING | |
| 4 | XKAQ-00175 | [2] | BEARING-ANGULAR | |
| 4 | XKAQ-00175-AS | [2] | BEARING-ANGULAR | FOR AS ONLY |
| 5 | XKAQ-00176 | [1] | SHIM | STD |
| 5 | XKAQ-00992 | [1] | SHIM | 0.5T |
| 5 | XKAQ-00993 | [1] | SHIM | 0.9T |
| 5 | XKAQ-00994 | [1] | SHIM | 1.0T |
| 5 | XKAQ-00995 | [1] | SHIM | 1.2T |
| 6 | XKAQ-00177 | [1] | RETAINER | |
| 7 | XKAQ-00178 | [17] | BOLT-WRENCH | |
| 8 | XKAQ-00179 | [1] | CARRIER ASSY-NO.3 | |
| 8 | XKAQ-00398 | [1] | CARRIER 3 ASSY | |
| 8 | XKAQ-00965 | [1] | CARRIER 3 ASSY | |
| 8-1. | XKAQ-00180 | [1] | CARRIER-NO.3 | |
| 8-1. | XKAQ-00396 | [1] | CARRIER 3 | |
| 8-1. | XKAQ-00966 | [1] | CARRIER 3 | |
| 8-2. | XKAQ-00181 | [4] | GEAR-PLANETARY NO.3 | |
| 8-2. | XKAQ-00389 | [4] | GEAR 3-PLANETARY | |
| 8-3. | XKAQ-00182 | [72] | NEEDLE-NO.3 | |
| 8-3. | XKAQ-00390 | [72] | NEEDLE 3 | |
| 8-4. | XKAQ-00183 | [8] | WASHER-THRUST NO.3 | |
| 8-4. | XKAQ-00391 | [8] | WASHER 3-THRUST | |
| 8-5. | XKAQ-00184 | [4] | PIN 3 | |
| 8-6. | XKAQ-00185 | [4] | PIN 3-SPRING | |
| 8-6. | XKAQ-00967 | [4] | PIN 3-SPRING | |
| 8-7. | XKAQ-00186 | [1] | GEAR 3-SUN | |
| 8-8. | XKAQ-00187 | [1] | RING 3-SNAP | |
| 8-9. | XKAQ-00651 | [4] | PIN 3-SPRING | |
| 8-9. | XKAQ-00968 | [4] | PIN 3-SPRING | |
| 9 | XKAQ-00188 | [1] | CARRIER ASSY-NO.2 | |
| 9 | XKAQ-00399 | [1] | CARRIER ASSY 2 | |
| 9 | XKAQ-00969 | [1] | NO2 CARRIER ASS'Y | |
| 9-1. | XKAQ-00189 | [1] | CARRIER-NO.2 | |
| 9-1. | XKAQ-00397 | [1] | CARRIER 2 | |
| 9-1. | XKAQ-00970 | [1] | NO2 CARRIER | |
| 9-2. | XKAQ-00190 | [3] | GEAR-PLANETARY NO.2 | |
| 9-2. | XKAQ-00392 | [3] | GEAR 2-PLANETERY | |
| 9-3. | XKAQ-00191 | [45] | NEEDLE-NO.2 | |
| 9-3. | XKAQ-00393 | [45] | NEEDLE 2 | |
| 9-4. | XKAQ-00192 | [6] | WASHER-THRUST NO.2 | |
| 9-4. | XKAQ-00394 | [6] | WASHER 2-THRUST | |
| 9-5. | XKAQ-00193 | [3] | PIN 2 | |
| 9-6. | XKAQ-00194 | [6] | PIN 2-SPRING | |
| 9-6. | XKAQ-00971 | [6] | PIN 2-SPRING | |
| 9-7. | XKAQ-00195 | [1] | GEAR 2-SUN | |
| 9-8. | XKAQ-00196 | [1] | RING 2-SNAP | |
| 9-9. | XKAQ-00650 | [6] | PIN 2-SRPING | |
| 10 | XKAQ-00197 | [1] | CARRIER ASSY-NO.1 | |
| 10 | XKAQ-00400 | [1] | CARRIER 1 ASSY | |
| 10-1. | XKAQ-00198 | [1] | CARRIER 1 | |
| 10-2. | XKAQ-00199 | [3] | GEAR 1-PLANETARY | |
| 10-3. | XKAQ-00200 | [3] | BEARING-NEEDLE | |
| 10-4. | XKAQ-00201 | [6] | WASHER-THRUST NO.1 | |
| 10-4. | XKAQ-00395 | [6] | WASHER 1-THRUST | |
| 10-5. | XKAQ-00202 | [3] | PIN 1 | |
| 11 | XKAQ-00203 | [1] | GEAR 1-SUN | |
| 12 | XKAQ-00204 | [3] | PLUG | |
| 13 | XKAQ-00205 | [4] | PIN-LOCK | |
| 14 | XKAQ-00206 | [1] | GEAR-RING | |
| 14 | XKAQ-00762 | [1] | GEAR-RING | |
| 15 | XKAQ-00207 | [24] | BOLT-WRENCH | |
| 16 | XKAQ-00208 | [1] | RING-THRUST | |
| 17 | XKAQ-00209 | [1] | COVER | |
| 17 | XKAQ-00973 | [1] | COVER | |
| 18 | XKAQ-00210 | [AR] | RING 2-THRUST | |
| 19 | XKAQ-00211 | [16] | BOLT-WRENCH | |
| 20 | XKAQ-00212 | [1] | MOTOR-RING | |
| 21 | XKAQ-00213 | [1] | RING 3-THRUST | |
| 22 | XKAQ-00214 | [1] | PAD | |
| 23 | XKAQ-00215 | [1] | COUPLING | |
| 24 | XKAQ-00216 | [1] | NAME PLATE | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
