XKAQ-00649 XKAQ00649 Gear-Ring Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A R500LC7
- XKAQ-00649 XKAQ00649 Gear-Ring Excavator Swing Gear For HYUNDAI R450LC7 R450LC7A R500LC7
- Specifiion
| spare parts name | Gear-ring |
| Equipment Model | R450LC7 R450LC7A R500LC7 R500LC7A |
| Parts egory | HYUNDAI Excavator Swing Gear |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Power transmission for engine starting: The flywheel ring gear is installed on the outer edge of the flywheel. When the driver turns the key to start the vehicle, the gear in the starter rotates and meshes with the flywheel ring gear.
2.Energy and inertia storage: The engine's power output is discontinuous, and the power of each cylinder's working stroke is not continuous. The flywheel ring gear, together with the flywheel, can store the energy outside the engine's working stroke. W
- Compatible models
7-SERIES CRAWLER EXCAVATOR R450LC7 R450LC7A R500LC7 R500LC7A
9-SERIES CRAWLER EXCAVATOR R235LCR9 R480LC9 R520LC9
- More other gear parts applicable for HYUNDAI machine
| 3905427 GEAR-FLYWHEEL RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 42HDLL, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3C, HL730TM7,... |
| ZTAJ-00078 GEAR ASSY-1ST |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| ZTAJ-00080 GEAR ASSY-2ND |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| ZTAJ-00119 GEAR ASSY-3RD |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 39QB-42240 GEAR-PLANETARY NO.1 |
| HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 39QB-42270 GEAR-SUN NO.1 |
| HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 39QB-12110 GEAR-RING |
| HX235L, HX480L, HX520L, R450LC7, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 39QB-12240 GEAR-SUN NO.2 |
| HX235L, HX480L, HX520L, R450LC7, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 39QB-12270 GEAR-PLANETARY NO.1 |
| HX235L, HX480L, HX520L, R450LC7, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 39QB-12320 GEAR-SUN NO.1 |
| HX235L, HX480L, HX520L, R450LC7, R480LC9, R480LC9A, R480LC9S, R500LC7, R520LC9, R520LC9A, R520LC9S |
| 4903125 GEAR |
| R480LC9 |
| 4903124 GEAR-F/PUMPING |
| R480LC9 |
| XKAQ-00648 GEAR-SUN 1 |
| R235LCR9, R235LCR9A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| XKAQ-00646 GEAR-PLANET 1 |
| R235LCR9, R235LCR9A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9A, R520LC9S, RD510LC-7 |
| XJBN-01128 GEAR PUMP |
| R210NLC7A |
| XJBN-00747 GEAR PUMP |
| R210NLC7, R450LC7 |
| XJBN-01196 GEAR PUMP |
| HW210, HX220L, HX220NL, HX235L, HX260L, R210LC9, R210LC9BC, R210LC9BH, R220LC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD220LC9 |
| XJBN-01213 GEAR-1ST |
| HW210, HX220L, HX220NL, HX235L, HX260L, R210LC9, R220LC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A |

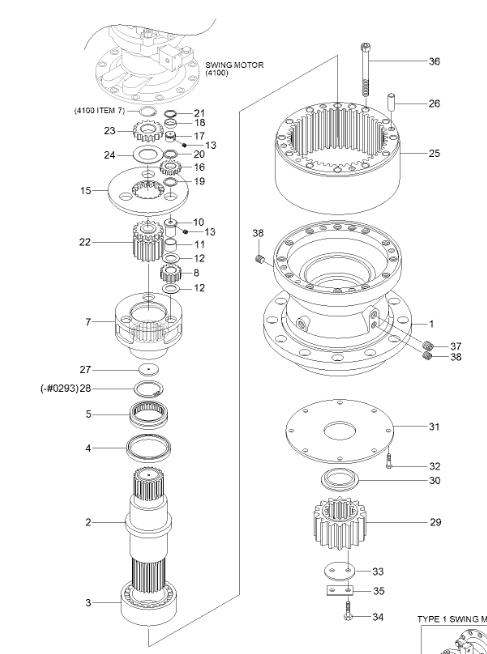

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | 31Q6-10160 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10161 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31Q6-10161AR | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00772 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 4 | XKAQ-00032 | [1] | SEAL-OIL | |
| 5 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 5 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00753 | [1] | CARRIER ASSY 2 | NOT SHOWN |
| 7 | XKAQ-00075 | [1] | CARRIER 2 | |
| 8 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 9 | XKAQ-00643 | [3] | PIN ASSY 2 | NOT SHOWN |
| 10 | XKAQ-00070 | [1] | PIN 2 | INCL 11 |
| N11. | XKAQ-00291 | [1] | BUSHING 2 | |
| 12 | XKAQ-00644 | [6] | WASHER-THRUST | |
| 13 | XKAQ-00048 | [3] | PIN-SPRING | |
| 14 | XKAQ-00754 | [1] | CARRIER ASSY 1 | NOT SHOWN |
| 13 | XKAQ-00048 | [3] | PIN-SPRING | |
| 15 | XKAQ-00531 | [1] | CARRIER 1 | |
| 16 | XKAQ-00646 | [3] | GEAR-PLANET 1 | |
| 17 | XKAQ-00415 | [3] | PIN 1 | |
| 18 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| 19 | XKAQ-00417 | [3] | PLATE 1-SIDE | |
| 20 | XKAQ-00416 | [3] | PLATE 2-SIDE | |
| 21 | XKAQ-00041 | [3] | RING-STOP | |
| 22 | XKAQ-00755 | [1] | GEAR-SUN 2 | |
| 23 | XKAQ-00648 | [1] | GEAR-SUN 1 | |
| 24 | XKAQ-00534 | [1] | PLATE-SIDE 3 | |
| 25 | XKAQ-00649 | [1] | GEAR-RING | |
| 25 | XKAQ-00779 | [1] | GEAR-RING | |
| 26 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 27 | XKAQ-00404 | [1] | PLATE-THRUST | |
| 28 | XKAQ-00074 | [1] | RING-STOP | |
| 29 | XKAQ-00769 | [1] | GEAR-PINION | |
| 30 | XKAQ-00018 | [1] | SPACER | |
| 31 | XKAQ-00031 | [1] | PLATE-COVER | |
| 32 | XKAQ-00064 | [8] | BOLT-HEX | |
| 33 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 34 | XKAQ-00042 | [2] | BOLT-HEX | |
| 35 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 36 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 37 | XKAQ-00049 | [1] | PLUG | |
| 38 | XKAQ-00066 | [2] | PLUG | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4100 |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
