XKAY-00535 XKAY00535 Piston Kit Excavator Swing Motor For HYUNDAI R200W7 R200W7A
- XKAY-00535 XKAY00535 Piston Kit Excavator Swing Motor Fitting For HYUNDAI R200W7 R200W7A
- Specifiion
| spare parts name | Piston kit |
| Equipment Model | R200W7 R200W7A |
| Parts egory | HYUNDAI Excavator Swing Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Force bearing and transmission: The piston is the main component that bears the gas pressure in the cylinder. When the fuel in the cylinder burns, it generates high - pressure gas, and the piston bears this pressure and transmits the force to the crankshaft through the piston pin and connecting rod, converting the linear motion of the piston into the rotational motion of the crankshaft, thus providing power for the excavator.
2.Combustion chamber formation: The top of the piston, together with the cylinder head and cylinder wall, forms the combustion chamber. The shape of the piston top affects the combustion efficiency and power output of the engine. A reasonable combustion chamber shape can make the fuel burn more fully and improve the performance of the excavator.
- Compatible models
7 SERIES WHEEL EXCAVATOR R200W7 R200W7A
7-SERIES CRAWLER EXCAVATOR R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R450LC7 R450LC7A R500LC7 R500LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD510LC-7
- More other piston parts applicable for HYUNDAI machine
| 39Q8-41321 PISTON ASSY |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| XKBN-01978 PISTON |
| R380LC9DM, R520LC9 |
| ZTAJ-00088 PISTON-BRAKE |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 31Y1-35586 PISTON |
| HX480L, HX520L, R500LC7, R800LC-9, R800LC7A, RD510LC-7 |
| XKBN-02658 PISTON |
| BREAKERS, R520LC9, R520LC9A, R520LC9S |
| ZUAC-00837 PISTON AND RING KIT |
| HX140L, HX160L |
| ZUAC-00838 PISTON AND RING KIT-O/S |
| HX140L, HX160L |
| ZUAC-00839 PISTON AND RING KIT-O/S |
| HX140L, HX160L |
| ZUAC-00840 PISTON RING KIT-OVERSIZE |
| HX140L, HX160L |
| ZUAC-00841 PISTON RING KIT-OVERSIZE |
| HX140L, HX160L |
| XKCC-01733 PISTON |
| HX235L, R235LCR9A |
| XKCC-01766 PISTON |
| HX235L, R235LCR9A |
| 09217-10011 PISTON-FEED PUMP |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 32A17-03300 PISTON-0.S 0.50 |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 32A17-03200 PISTON-0.S 0.25 |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |

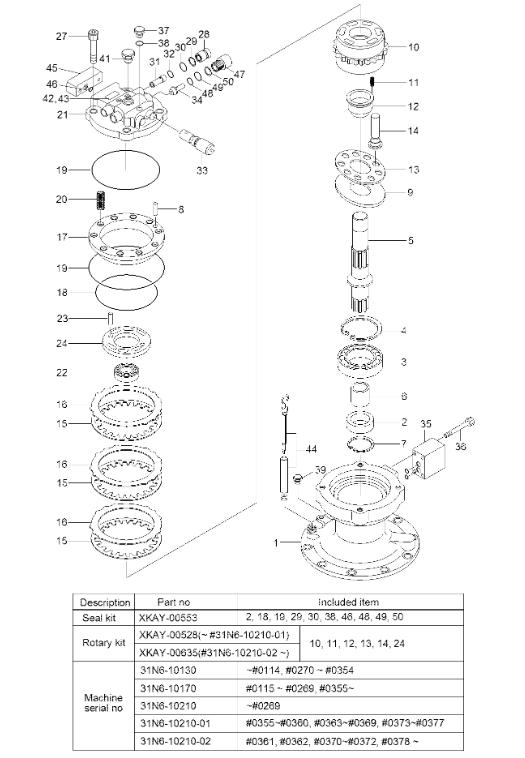

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| N*. | @ | [1] | SWING MOTOR ASSY | |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| *-1. | 31N6-10210 | [1] | SWING MOTOR | SEE ILLUST |
| 1 | XKAY-00520 | [1] | BODY | 31N6-10210-01 |
| 1 | XKAY-00637 | [1] | BODY | 31N6-10210-02 |
| 1 | XKAY-02096 | [1] | BODY | 31N6-10210-02 |
| K2. | XKAY-00521 | [1] | SEAL-OIL | |
| 3 | XKAY-00522 | [1] | BEARING-ROLLER | |
| 4 | XKAY-00523 | [1] | RING-SNAP | |
| 5 | XKAY-00524 | [1] | SHAFT | |
| 6 | XKAY-00525 | [1] | BUSHING | |
| 7 | XKAY-00526 | [1] | RING-STOP | |
| 8 | XKAY-00286 | [1] | PIN | 31N6-10210 |
| 8 | XKAY-00625 | [1] | PIN | 31N6-10210-01 |
| 9 | XKAY-00527 | [1] | PLATE-SHOE | |
| A. | XKAY-00528 | [1] | ROTARY KIT | 31N6-10210-01 |
| A. | XKAY-00635 | [1] | ROTARY KIT | 31N6-10210-02 |
| A-A. | XKAY-00529 | [1] | CYLINDER BLOCK KIT | 31N6-10210-01 |
| A-A. | XKAY-00634 | [1] | CYLINDER BLOCK KIT | 31N6-10210-02 |
| 10 | XKAY-00530 | [1] | CYLINDER BLOCK | 31N6-10210-01 |
| 10 | XKAY-00633 | [1] | BLOCK-CYLINDER | 31N6-10210-02 |
| 11 | XKAY-00531 | [9] | SPRING | |
| A-B. | XKAY-00532 | [1] | RETAINER KIT | |
| 12 | XKAY-00533 | [1] | GUIDE-BALL | |
| 13 | XKAY-00534 | [1] | PLATE-SET | |
| A-C. | XKAY-00535 | [1] | PISTON KIT | |
| N14. | XKAY-00536 | [9] | PISTON ASSY | |
| 15 | XKAY-00537 | [3] | PLATE-FRICTION | |
| 16 | XKAY-00538 | [3] | PLATE | |
| 17 | XKAY-00539 | [1] | PISTON-BRAKE | |
| 17 | XKAY-00631 | [1] | PISTON-BRAKE | 31N6-10210-01 |
| 17 | XKAY-00632 | [1] | PISTON-BRAKE | 31N6-10210-02 |
| K18. | XKAY-00468 | [1] | O-RING | |
| K19. | XKAY-00540 | [2] | O-RING | |
| 20 | XKAY-00541 | [20] | SPRING | |
| 21 | XKAY-00542 | [1] | COVER-REAR | 31N6-10210 |
| 21 | XKAY-00630 | [1] | COVER-REAR | 31N6-10210-01 |
| 22 | XKAY-00543 | [1] | BEARING-NEEDLE | |
| 23 | XKAY-00382 | [2] | PIN | |
| 24 | XKAY-00544 | [1] | PLATE-VALVE | |
| 27 | XKAY-00546 | [4] | BOLT-WRENCH | |
| 28 | XKAY-00309 | [2] | PLUG | |
| K29. | XKAY-00547 | [2] | RING-BACK UP | |
| K30. | XKAY-00310 | [2] | O-RING | |
| 31 | XKAY-00311 | [2] | SPRING | |
| 32 | XKAY-00312 | [2] | CHECK | |
| 33 | XKAY-00313 | [2] | RELIEF VALVE ASSY | |
| 34 | XKAY-00314 | [2] | VLV ASSY-REACTIONLESS | |
| 35 | XKAY-00315 | [1] | TIME DELAY VALVE ASSY | |
| 36 | XKAY-00149 | [3] | BOLT-WRENCH | |
| 37 | XKAY-00316 | [1] | PLUG | |
| K38. | XKAY-00151 | [3] | O-RING | |
| 39 | XKAY-00140 | [1] | PLUG | |
| 41 | XKAY-00548 | [1] | PLUG | |
| N42. | XKAY-00549 | [1] | NAME PLATE | |
| 43 | XKAY-00277 | [2] | RIVET | |
| 44 | XKAY-01986 | [1] | GAUGE-LEVEL | |
| 45 | XKAY-00551 | [1] | FLANGE | |
| K46. | XKAY-00552 | [2] | O-RING | |
| 47 | XKAY-00322 | [2] | PLUG | |
| K48. | XKAY-00324 | [2] | O-RING | |
| K49. | XKAY-00247 | [2] | O-RING | |
| K50. | XKAY-00248 | [2] | RING-BACK UP | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4111 |
| K. | XKAY-00553 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
