XKAY00207 XKAY-00207 Shaft Excavator Travel Motor For HYUNDAI R250LC7 R250LC7A R290LC7
- XKAY00207 XKAY-00207 Shaft Excavator Travel Motor For HYUNDAI R250LC7 R250LC7A R290LC7
- Specifiion
| spare parts name | Shaft |
| Equipment Model | R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7 |
| Parts egory | HYUNDAI Excavator Travel Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Power transmission: In the excavator's travel system, the travel motor generates power. The XKAY00207 shaft is an important component for power transmission. It can transmit the torque output by the travel motor to the crawler or wheel - type driving mechanism, converting the motor's rotational motion into the linear motion of the excavator, enabling it to move forward, backward, turn, etc.
2.Supporting components: It is used to support other components in the travel motor, such as gears, bearings, etc. By providing a stable support, it ensures the correct meshing and operation of these components, maintaining the normal operation of the travel motor and reducing component wear and vibration.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RD340LC-7
9-SERIES CRAWLER EXCAVATOR R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH
- More other shaft parts applicable for HYUNDAI machine
| 131155 SHAFT |
| R180LC3, R200NLC3, R210LC3, R210LC3H |
| 112568A SHAFT |
| R210ECONO, R210LC3, R210LC3H, R210LC3LL |
| 131134C SHAFT-CRANK |
| R210LC3, R210LC3H |
| 124568 SHAFT-DRIVING(F) |
| R210LC3H |
| 124569 SHAFT-DRIVING(R) |
| R210LC3H |
| 39Q6-12121 SHAFT-DRIVE |
| HW210, HX160L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W9A, R210W9AMH, R215LC7, R220LC9A, R2... |
| XKBH-01810 SHAFT-ROCKER |
| R210LC7H, R210LC9BH |
| XKBH-01793 SHAFT-CAM |
| R210LC7H, R210LC9BH |
| XKBH-01787 SHAFT-IDLER 1 |
| R210LC7H, R210LC9BH |

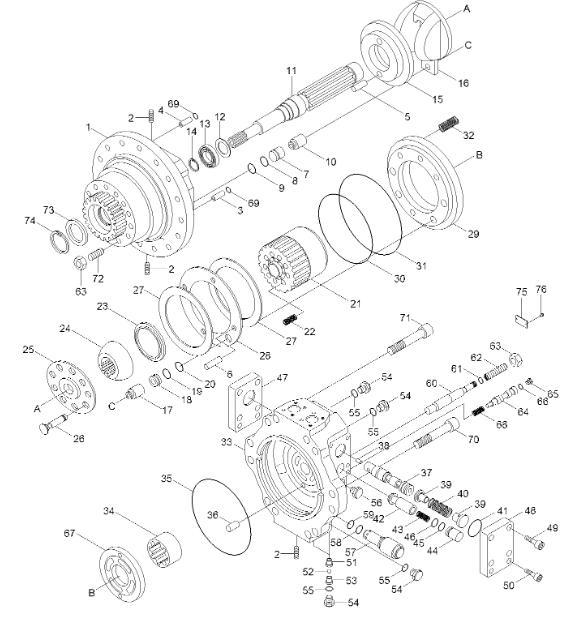

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N8-40050 | [1] | TRACK MOTOR | |
| *. | 31N8-40051 | [1] | TRACK MOTOR | |
| *. | 31N8-40051BG | [1] | TRACK MOTOR | |
| *. | 31N8-40053 | [1] | TRACK MOTOR | |
| *. | 31N8-40054 | [1] | TRACK MOTOR | |
| *. | 31N8-40055 | [1] | TRAVEL UNIT | |
| *-1. | 31N8-40060 | [1] | TRACK MOTOR UNIT | |
| *-1. | 31N8-40061 | [1] | TRACK MOTOR UNIT | |
| *-1. | 31N8-40061BG | [1] | TRACK MOTOR UNIT | |
| *-1. | 31N8-40062 | [1] | TRACK MOTOR UNIT | |
| *-1. | 31N8-40063 | [1] | TRACK MOTOR UNIT | |
| 1 | XKAY-00197 | [1] | CASING-SHAFT | |
| 1 | XKAY-00962 | [1] | CASING-SHAFT | |
| 1 | XKAY-02052 | [1] | CASING-SHAFT | |
| 2 | XKAY-00198 | [12] | PLUG | |
| 3 | XKAY-00199 | [2] | SCREW-ORIFICE | |
| 4 | XKAY-00200 | [1] | SCREW-ORIFICE | |
| 4 | XKAY-00199 | [1] | SCREW-ORIFICE | |
| 5 | XKAY-00201 | [2] | PIN-SUPPORT | |
| 6 | XKAY-00202 | [4] | PIN-BRAKE | |
| 7 | XKAY-00203 | [1] | STOPPER(S) | |
| 8 | XKAY-00204 | [4] | O-RING | |
| 9 | XKAY-00205 | [3] | RING-BACK UP | |
| 10 | XKAY-00206 | [1] | PISTON-SWASH | |
| 11 | XKAY-00207 | [1] | SHAFT | |
| 12 | XKAY-00208 | [1] | SPACER-BEARING | |
| 13 | XKAY-00209 | [1] | BEARING-ROLLER | |
| 14 | XKAY-00210 | [1] | RING-STOP | |
| *. | XKAY-00211 | [1] | SUPPORT KIT | |
| *. | XKAY-01070 | [1] | SUPPORT KIT | |
| N15. | XKAY-00212 | [1] | SUPPORT | |
| N16. | XKAY-00213 | [1] | PLATE-SWASH | |
| 17 | XKAY-00214 | [1] | PISTON-SWASH | |
| 18 | XKAY-00215 | [1] | STOPPER(L) | |
| 19 | XKAY-00216 | [1] | O-RING | |
| 20 | XKAY-00217 | [2] | RING-BACK UP | |
| *. | XKAY-00218 | [1] | ROTARY KIT | |
| *. | XKAY-01510 | [1] | ROTARY KIT | |
| *-1. | XKAY-00219 | [1] | CYLINDER BLOCK KIT | |
| *-1. | XKAY-01509 | [1] | CYLINDER BLOCK KIT | |
| N21. | XKAY-00220 | [1] | BLOCK-CYLINDER | |
| N21. | XKAY-01504 | [1] | BLOCK-CYLINDER | |
| 22 | XKAY-00221 | [9] | SPRING-CYLINDER | |
| 23 | XKAY-00222 | [1] | SPACER | |
| 67 | XKAY-00268 | [1] | PLATE-VALVE | |
| 67 | XKAY-01505 | [1] | PLATE-VALVE | |
| *-2. | XKAY-00223 | [1] | RETAINER KIT | |
| 24 | XKAY-00224 | [1] | GUIDE-BALL | |
| 25 | XKAY-00225 | [1] | SET-PLATE | |
| *-3. | XKAY-00226 | [1] | PISTON KIT | |
| N26. | XKAY-00227 | [9] | PISTON & SHOE ASSY | |
| 27 | XKAY-00228 | [2] | PLATE-FRICTION | |
| 28 | XKAY-00229 | [1] | PLATE-SEPARATOR | |
| 29 | XKAY-00230 | [1] | RING-PISTON | |
| 29 | XKAY-01071 | [1] | BRAKE-PISTON | |
| 29 | XKAY-00973 | [1] | BRAKE-PISTON | |
| 30 | XKAY-00231 | [1] | RING-PISTON 252 | |
| 31 | XKAY-00232 | [1] | RING-PISTON 278 | |
| 32 | XKAY-00233 | [10] | SPRING-BRAKE | |
| 33 | XKAY-00234 | [1] | O-RING | |
| 33 | XKAY-01072 | [1] | CASING-VALVE | |
| 33 | XKAY-01506 | [1] | CASING-VALVE | |
| 34 | XKAY-00235 | [1] | BEARING-NEEDLE | |
| 35 | XKAY-00236 | [1] | O-RING | |
| 36 | XKAY-00237 | [2] | PIN-VALVE PLATE | |
| *. | XKAY-00238 | [1] | SPOOL KIT-C/BLC VALVE | |
| 37 | XKAY-00239 | [1] | SPOOL-C/BLC VALVE | |
| 38 | XKAY-00240 | [2] | SCREW-ORIFICE | |
| 39 | XKAY-00241 | [2] | DAMPING CHECK ASSY | |
| 40 | XKAY-00242 | [2] | SPRING-C/BLC VALVE | |
| 41 | XKAY-00247 | [2] | O-RING | |
| 42 | XKAY-00244 | [2] | PLUNGER-C/BLC VALVE | |
| 43 | XKAY-00245 | [2] | SPRING-CHECK | |
| 44 | XKAY-00246 | [2] | STOPPER-CHECK | |
| 45 | XKAY-00247 | [4] | O-RING | |
| 46 | XKAY-00248 | [4] | RING-BACK UP | |
| 47 | XKAY-00249 | [1] | CAP-C/BLC VALVE(R) | |
| 48 | XKAY-00250 | [1] | CAP-C/BLC VALVE(L) | |
| 49 | XKAY-00136 | [8] | BOLT-SOCKET | |
| 50 | XKAY-00251 | [4] | BOLT-SOCKET | |
| 51 | XKAY-00252 | [2] | SEAT | |
| 52 | XKAY-00253 | [2] | BALL-STEEL | |
| 53 | XKAY-00254 | [2] | STOPPER | |
| 54 | XKAY-00255 | [7] | PLUG-HP | |
| 55 | XKAY-00256 | [7] | O-RING | |
| 56 | XKAY-00257 | [2] | PLUG-HP | |
| 57 | XKAY-00258 | [2] | VALVE ASSY-RELIEF | |
| 57 | XKAY-01073 | [2] | VALVE ASSY-RELIEF | |
| 58 | XKAY-00259 | [2] | O-RING | |
| 59 | XKAY-00260 | [2] | RING-BACK UP | |
| 60 | XKAY-00261 | [1] | ROD-SWASH | |
| 61 | XKAY-00262 | [1] | O-RING | |
| 62 | XKAY-00263 | [1] | SCREW-LOCK | |
| 62 | XKAY-01074 | [1] | SCREW-LOCK | |
| 63 | XKAY-00279 | [2] | NUT-HEX | |
| 64 | XKAY-00265 | [1] | SPOOL-SWASH | |
| 65 | XKAY-00266 | [1] | PLUG | |
| 66 | XKAY-00267 | [1] | O-RING | |
| 68 | XKAY-00269 | [1] | SPRING-SWASH | |
| 69 | XKAY-00270 | [3] | O-RING | |
| 70 | XKAY-00271 | [8] | BOLT-WRENCH | |
| 71 | XKAY-00272 | [4] | BOLT-SOCKET | |
| 72 | XKAY-00273 | [1] | SCREW-LOCK | |
| 73 | XKAY-00274 | [1] | SEAL-OIL | |
| 74 | XKAY-00275 | [1] | RING-LOCK | |
| 75 | XKAY-02051 | [1] | NAME PLATE | |
| 76 | XKAY-00277 | [2] | RIVET | |
| K. | XKAY-00278 | [1] | SEAL KIT | SEE ILLUST |
| *-2. | @ | [1] | T/REDUCTION GEAR | |
| N. | @ | [1] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
