XKAY00462 XKAY-00462 Plate Set Excavator Travel Motor For HYUNDAI R140LC-7 R160LC7
- XKAY00462 XKAY-00462 Plate Set Excavator Travel Motor For HYUNDAI R140LC-7 R160LC7
- Specifiion
| spare parts name | Plate set |
| Equipment Model | R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 |
| Parts egory | HYUNDAI Excavator Travel Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Fuction
1.Fixing components: In the hydraulic system of the excavator, it can be used to fix key components such as pistons, preventing them from moving randomly during the operation of the excavator, ensuring that each component is in the correct position, and thus enabling the hydraulic system to work properly.
2.Maintaining structural stability: It can enhance the overall structural stability of the relevant parts of the excavator. By firmly connecting and fixing each part, it can evenly distribute the force during the operation of the excavator, reduce the stress concentration phenomenon, and prevent the parts from being damaged due to excessive vibration or force, which is helpful to prolong the service life of the excavator.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R140LC9 R140LC9A R140LC9S R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R250LC9 R250LC9A R260LC9S RB160LC9S RB220LC9S RB260LC9S RD220LC9
- More other plate parts applicable for HYUNDAI machine
| 24L3-30710 PLATE |
| 100D-7, 110D-7E, 15BT-9, 16B-9, 180D-9, 22B-9, 22BH-9, 250D-9, 40B-9, 50D-7A, 50D-7K, 50DE, 50DEACE, 50DF, 80D-9, 80DE, 80DEACE, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL7303, HL7303C, HL730T... |
| 21EM-45070 PLATE-VANE |
| 33HDLL, 42HDLL, HX180L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC3, R160LC7, ... |
| 71K5-51160 PLATE |
| HX140L, HX160L |
| 71K5-51180 PLATE |
| HX140L, HX160L |
| 11K4-77441 PLATE WA |
| HX160L, HX180L |
| 21K4-10411 PLATE |
| HX160L, HX180L |
| 71K8-21020 PLATE-MIDDLE |
| HX160L |
| 41K5-10120 PLATE |
| HX160L |
| 21K8-20080 PLATE-CLAMP |
| HX160L, HX180L, HX300L, HX480L, HX520L |
| 21QB-20080Y7 PLATE-CLAMP |
| R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC9BC, R210LC9BH, R210W9S, RB... |
| 21Q7-48300 PLATE |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| 21Q7-48200 PLATE-CLIP |
| R140LC9A, R140W9A, R160LC9A, R160W9A, R180LC9A, R180W9A, R210W9A, R220LC9A, R250LC9A, R300LC9A, R330LC9A, R380LC9A, R480LC9A, R520LC9A |
| XKAY-00457 PLATE-END |
| HX140L, HX160L, R140LC-7, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, ... |
| XKAH-00436 PLATE-THRUST |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC3H, R210LC7, R210LC7A, R210LC7H, R250LC7, R250LC7A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520LC9,... |

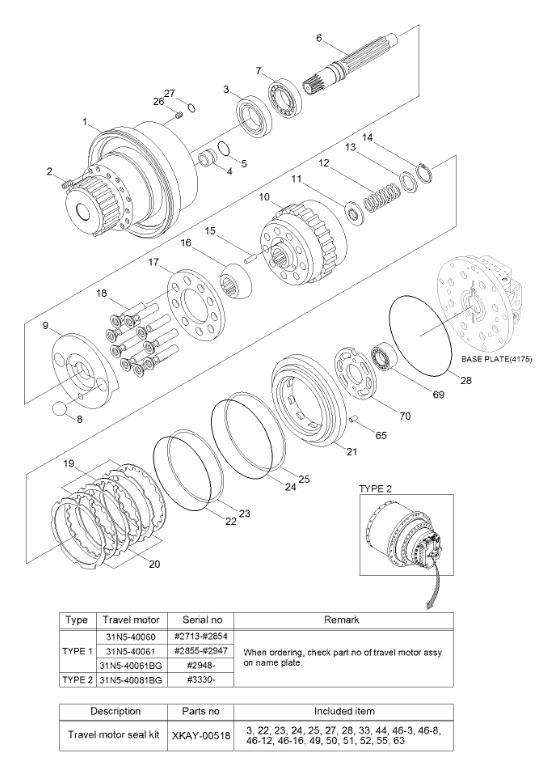

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4175 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | |
| 1 | XKAY-00965 | [1] | CASING-SHAFT | |
| 2 | XKAY-00443 | [10] | PLUG | |
| K3. | XKAY-00444 | [1] | SEAL-OIL | |
| A. | XKAY-00445 | [2] | SWASH PISTON KIT | INCL 4,5 |
| N4. | XKAY-00446 | [1] | SWASH PISTON | |
| N5. | XKAY-00447 | [1] | RING-PISTON | |
| 6 | XKAY-00448 | [1] | SHAFT | |
| 7 | XKAY-00449 | [1] | BEARING | |
| 8 | XKAY-00450 | [2] | BALL-STEEL | |
| 9 | XKAY-01320 | [1] | SWASH PLATE | |
| B. | XKAY-00452 | [1] | ROTARY KIT | INCL B-A,B,C |
| B-A. | XKAY-00453 | [1] | CYLINDER BLOCK KIT | INCL 10-15,70 |
| N10. | XKAY-00824 | [1] | CYLINDER BLOCK | |
| 11 | XKAY-00455 | [1] | SEAT-SPRING | |
| 12 | XKAY-00456 | [1] | SPRING | |
| 13 | XKAY-00457 | [1] | PLATE-END | |
| 14 | XKAY-00458 | [1] | RING-SNAP | |
| 15 | XKAY-00459 | [3] | PIN | |
| B-B. | XKAY-00460 | [1] | RETAINER KIT | INCL 16,17 |
| 16 | XKAY-00461 | [1] | GUIDE-BALL | |
| 17 | XKAY-00462 | [1] | PLATE-SET | |
| B-C. | XKAY-00463 | [1] | PISTON KIT | INCL 18 |
| N18. | XKAY-00464 | [9] | PISTON ASSY | |
| 19 | XKAY-00465 | [3] | PLATE-FRICTION | |
| 20 | XKAY-00466 | [3] | PLATE | |
| 21 | XKAY-00467 | [1] | PISTON-PARKING | |
| K22. | XKAY-00468 | [1] | O-RING | |
| K23. | XKAY-00469 | [1] | RING-BACK UP | |
| K24. | XKAY-00470 | [1] | O-RING | |
| K25. | XKAY-00471 | [1] | RING-BACK UP | |
| 26 | XKAY-00472 | [1] | ORIFICE | |
| K27. | XKAY-00473 | [3] | O-RING | |
| K28. | XKAY-00474 | [1] | O-RING | |
| 65 | XKAY-00509 | [4] | PIN | |
| 69 | XKAY-00513 | [1] | BEARING | |
| 70 | XKAY-00964 | [1] | PLATE-VALVE | |
| K. | XKAY-00518 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
