XKAY00464 XKAY-00464 Piston Assy Excavator Travel Motor For HYUNDAI R140LC-7 R160LC7
- XKAY00464 XKAY-00464 Piston Assy Excavator Travel Motor For HYUNDAI R140LC-7 R160LC7
- Specifiion
| spare parts name | Piston assy |
| Equipment Model | R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7H R210NLC7 RC215C7 RC215C7H |
| Parts egory | HYUNDAI Excavator Travel Motor |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Force bearing and transmission: The piston is the main component that bears the gas pressure in the cylinder. When the fuel in the cylinder burns, it generates high - pressure gas, and the piston bears this pressure and transmits the force to the crankshaft through the piston pin and connecting rod, converting the linear motion of the piston into the rotational motion of the crankshaft, thus providing power for the excavator.
2.Combustion chamber formation: The top of the piston, together with the cylinder head and cylinder wall, forms the combustion chamber. The shape of the piston top affects the combustion efficiency and power output of the engine. A reasonable combustion chamber shape can make the fuel burn more fully and improve the performance of the excavator.
- Compatible models
7-SERIES CRAWLER EXCAVATOR R140LC-7 R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7H R210NLC7 RC215C7 RC215C7H
9-SERIES CRAWLER EXCAVATOR R140LC9 R140LC9A R140LC9S R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R220LC9A R220NLC9A RB160LC9S RD220LC9
- More other piston parts applicable for HYUNDAI machine
| 39Q8-41321 PISTON ASSY |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| XKBN-01978 PISTON |
| R380LC9DM, R520LC9 |
| ZTAJ-00088 PISTON-BRAKE |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| 31Y1-35586 PISTON |
| HX480L, HX520L, R500LC7, R800LC-9, R800LC7A, RD510LC-7 |
| XKBN-02658 PISTON |
| BREAKERS, R520LC9, R520LC9A, R520LC9S |
| ZUAC-00837 PISTON AND RING KIT |
| HX140L, HX160L |
| ZUAC-00838 PISTON AND RING KIT-O/S |
| HX140L, HX160L |
| ZUAC-00839 PISTON AND RING KIT-O/S |
| HX140L, HX160L |
| ZUAC-00840 PISTON RING KIT-OVERSIZE |
| HX140L, HX160L |
| ZUAC-00841 PISTON RING KIT-OVERSIZE |
| HX140L, HX160L |
| XKCC-01733 PISTON |
| HX235L, R235LCR9A |
| XKCC-01766 PISTON |
| HX235L, R235LCR9A |
| 09217-10011 PISTON-FEED PUMP |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 32A17-03300 PISTON-0.S 0.50 |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |
| 32A17-03200 PISTON-0.S 0.25 |
| R160LC7, R160LC9S, R170W7, R170W9S, R180LC7, R180LC9S, R180W9S |

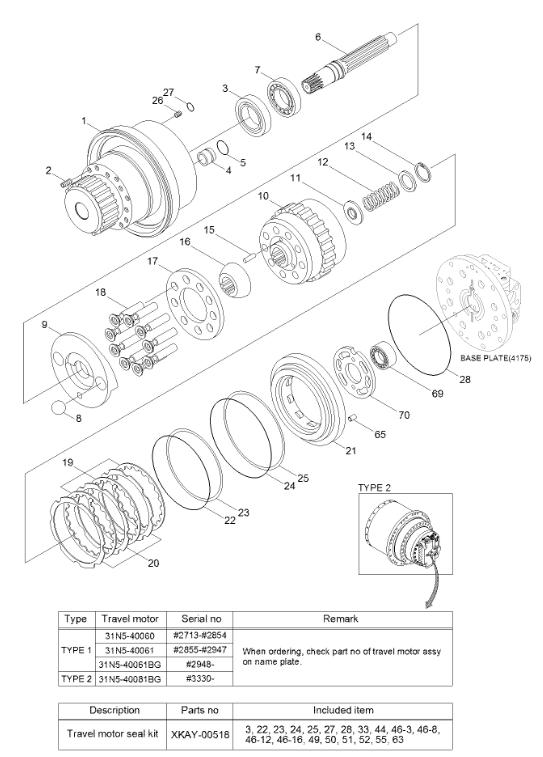

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4175 |
| *-1. | @ | [1] | TRAVEL MOTOR UNIT | |
| 1 | XKAY-00965 | [1] | CASING-SHAFT | |
| 2 | XKAY-00443 | [10] | PLUG | |
| K3. | XKAY-00444 | [1] | SEAL-OIL | |
| A. | XKAY-00445 | [2] | SWASH PISTON KIT | INCL 4,5 |
| N4. | XKAY-00446 | [1] | SWASH PISTON | |
| N5. | XKAY-00447 | [1] | RING-PISTON | |
| 6 | XKAY-00448 | [1] | SHAFT | |
| 7 | XKAY-00449 | [1] | BEARING | |
| 8 | XKAY-00450 | [2] | BALL-STEEL | |
| 9 | XKAY-01320 | [1] | SWASH PLATE | |
| B. | XKAY-00452 | [1] | ROTARY KIT | INCL B-A,B,C |
| B-A. | XKAY-00453 | [1] | CYLINDER BLOCK KIT | INCL 10-15,70 |
| N10. | XKAY-00824 | [1] | CYLINDER BLOCK | |
| 11 | XKAY-00455 | [1] | SEAT-SPRING | |
| 12 | XKAY-00456 | [1] | SPRING | |
| 13 | XKAY-00457 | [1] | PLATE-END | |
| 14 | XKAY-00458 | [1] | RING-SNAP | |
| 15 | XKAY-00459 | [3] | PIN | |
| B-B. | XKAY-00460 | [1] | RETAINER KIT | INCL 16,17 |
| 16 | XKAY-00461 | [1] | GUIDE-BALL | |
| 17 | XKAY-00462 | [1] | PLATE-SET | |
| B-C. | XKAY-00463 | [1] | PISTON KIT | INCL 18 |
| N18. | XKAY-00464 | [9] | PISTON ASSY | |
| 19 | XKAY-00465 | [3] | PLATE-FRICTION | |
| 20 | XKAY-00466 | [3] | PLATE | |
| 21 | XKAY-00467 | [1] | PISTON-PARKING | |
| K22. | XKAY-00468 | [1] | O-RING | |
| K23. | XKAY-00469 | [1] | RING-BACK UP | |
| K24. | XKAY-00470 | [1] | O-RING | |
| K25. | XKAY-00471 | [1] | RING-BACK UP | |
| 26 | XKAY-00472 | [1] | ORIFICE | |
| K27. | XKAY-00473 | [3] | O-RING | |
| K28. | XKAY-00474 | [1] | O-RING | |
| 65 | XKAY-00509 | [4] | PIN | |
| 69 | XKAY-00513 | [1] | BEARING | |
| 70 | XKAY-00964 | [1] | PLATE-VALVE | |
| K. | XKAY-00518 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
