XKAY01918 XKAY-01918 Plug Kit Excavator Spare Parts For HYUNDAI R1200-9 R125LCR-9A
- XKAY01918 XKAY-01918 Plug Kit Excavator Spare Parts For HYUNDAI R1200-9 R125LCR-9A
- Specifiion
| spare parts name | Plug kit |
| Equipment Model | R1200-9 R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A |
| Parts egory | HYUNDAI Excavator Spare Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Electrical connection: It can establish a reliable electrical connection between the throttle motor and relevant electrical components, such as the excavator's control circuit board. By transmitting electrical signals, it enables the control system to precisely control the speed and operation of the throttle motor, so as to adjust the engine speed and meet the power requirements of different working conditions.
2.Signal transmission and conversion: The plug kit can accurately transmit the control signals from the excavator operator or the control system to the throttle motor. At the same time, it may also perform certain signal conversion and amplifiion functions to ensure that the throttle motor can correctly respond to the received signals and make corresponding actions.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R1200-9 R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A
- More other plug parts applicable for HYUNDAI machine
| 3920706 PLUG-EXPANSION |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF35A-2, HDF50A, HL17C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9S, HL7303C, HL730TM-9, HL73... |
| 3900958 PLUG-EXPANSION |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HL17C, HL720-3C, HL730-7, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-9B, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL750, HL750-3, HL750TM3, HL757-7, HL757-7S... |
| 3910248 PLUG/O-RING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 33HDLL, 35D-9, 42HDLL, 50D-9, 80D-9, H70, H80, HDF50A, HL17C, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303... |
| 3915787 PLUG-THREADED |
| 100D-7, 33HDLL, H70, H80, HDF35A-2, HDF50A, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL... |
| 3013786 PLUG-PIPE |
| 110D-7E, 33HDLL, HL35C, HL760-7, HL770, HL770-3, HL770-3ATM, HL770-7, HL770-7A, HL770-9A, HL780-3, HL780-7A, HL780-9, HL780-9S, HL7803A, R170W3, R180LC3, R200W2, R210LC3, R210LC3LL, R300LC9S, R320LC, ... |
| P220-110102 PLUG-HEX |
| 10BR-9, 10BTR-9, 14BRJ-9, 15BR-9E, 15BT-9, 16B-9, 16B-9F, 20BC-9, 20BRJ-9, 22B-9, 22B-9F, 22BH-9, 250D-9, 250DE, 25BR-9, 33HDLL, 35D-9, 35D-9A, 35D-9S, 35DS-7, 50DF, 80D-7, DX20, HBF15-3, HC50E, HDF35... |
| P220-110104 PLUG-HEX |
| 180DE, 250DE, 33HDLL, 35D-9S, 35L-7A, 42HDLL, DX20, H70, H80, HL720-3, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL7303, HL7303C, HL730TM-9, HL730TM-9A, HL730TM3, HL730TM3C,... |
| 3008470 PLUG-PIPE |
| 42HDLL, HL25C, HL35C, HL760, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL770-7, HL780-3, HL780-7A, HL780-9, HL780-9S, HL7803A, R280LC, R290LC, R290LC3, R290LC3LL, R290LC7, R300LC9S, R305LC7, R3... |
| 3032693 PLUG |
| 180DE, 250D-9, 250DE, 42HDLL, HL25C, HL760, HL760-3, HL760-3ATM, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX260L, HX330L, HX380L, HX430L, R280LC, R290LC, R290LC3, R290LC7, R305LC7, R320LC3, R32... |

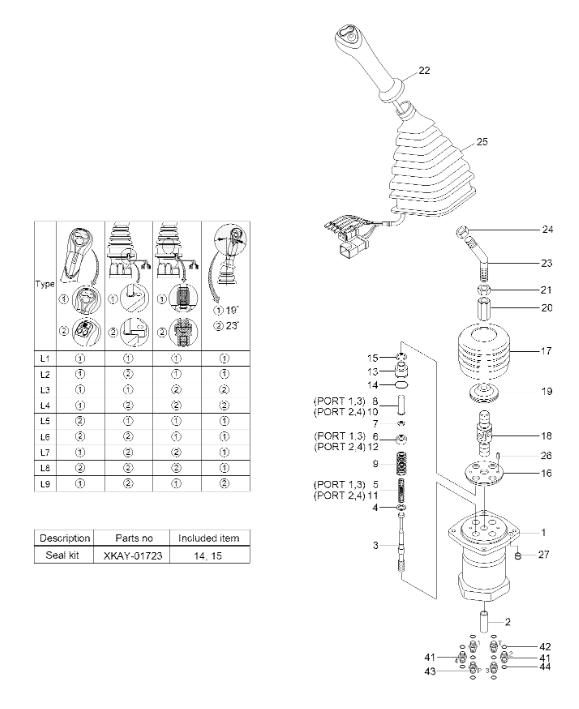

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q6-20013 | [1] | RCV SUB ASSY-LH | |
| *. | 31Q6-20023 | [1] | RCV SUB ASSY-RH | |
| *-1. | 31Q6-21013 | [1] | RCV LEVER -LH | |
| *-1. | 31Q6-21023 | [1] | RCV LEVER -RH | |
| 1 | XKAY-01706 | [1] | CAASE | |
| 2 | XKAY-01708 | [1] | BUSHING | |
| *-2. | XKAY-01709 | [2] | SPOOL KIT(1,3) | PORT 1,3 |
| *-2. | XKAY-01973 | [2] | SPOOL KIT(2,4) | PORT 2,4 |
| N3. | XKAY-01711 | [1] | SPOOL | |
| N4. | XKAY-00772 | [AR] | SHIM | |
| N5. | XKAY-01420 | [1] | SPRING(1,3) | PORT 1,3 |
| N6. | XKAY-00436 | [1] | SEAT-SPRING(1,3) | PORT 1,3 |
| N7. | XKAY-00058 | [1] | STOPPER | 4 SET |
| N8. | XKAY-00052 | [1] | ROD-PUSH(1,3) | |
| N9. | XKAY-01749 | [1] | SPRING | |
| *-3. | XKAY-01918 | [2] | PLUG KIT(1,3) | PORT 1,3 |
| *-3. | XKAY-01974 | [2] | PLUG KIT(2,4) | PORT 2,4 |
| N10. | XKAY-00439 | [1] | ROD-PUSH(2,4) | PORT 2,4 |
| N11. | XKAY-00781 | [1] | SPRING(2,4) | PORT 2,4 |
| N12. | XKAY-00059 | [1] | SEAT-SPRING(2,4) | PORT 2,4 |
| N13. | XKAY-01714 | [1] | PLUG | |
| KN14. | XKAY-00785 | [1] | O-RING | |
| KN15. | XKAY-01715 | [1] | SEAL-ROD | |
| 16 | XKAY-01716 | [1] | PLATE | |
| 17 | XKAY-00786 | [1] | BOOT | |
| 18 | XKAY-01717 | [1] | JOINT ASSY | |
| 19 | XKAY-01066 | [1] | PLATE-SWASH | |
| 20 | XKAY-00047 | [1] | NUT-HEX | |
| *-4. | XKAY-01718 | [1] | HANDLE KIT-LH | |
| *-4. | XKAY-01719 | [1] | HANDLE KIT-RH | |
| N21. | XKAY-00046 | [1] | NUT-LOCK | |
| N22. | XKAY-01720 | [1] | HANDLE ASSY-LH | |
| N22. | XKAY-01721 | [1] | HANDLE ASSY-RH | |
| N23. | XKAY-01722 | [1] | BAR-HANDLE | |
| N24. | XKAY-00811 | [1] | NUT | |
| N25. | XKAY-01083 | [1] | BOOT | |
| N26. | XKAY-00662 | [2] | PIN-SPRING | |
| 27 | XKAY-00074 | [1] | BUSHING | |
| 41 | XKAY-00798 | [5] | CONNECTOR-ORFS | |
| 42 | XKAY-00793 | [6] | O-RING | |
| 43 | XKAY-00799 | [1] | FILTER-LAST GUARD | |
| 44 | XKAY-00800 | [6] | O-RING | |
| K. | XKAY-01723 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
