XKCH-00017 XKCH00017 Coil Excavator Electric Parts For HYUNDAI R125LCR-9A R140LC9
- XKCH-00017 XKCH00017 Coil Excavator Electric Parts For HYUNDAI R125LCR-9A R140LC9
- Specifiion
| spare parts name | Coil |
| Equipment Model | R125LCR-9A R140LC9 R140LC9A R140LC9S R145CR9 R145CR9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R480C9MH R480LC9S R520LC9S RB140LC9S RB160LC9S RB220LC9S RB260LC9S RD220LC9 |
| Parts egory | HYUNDAI Excavator Electric Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Spark generation: The ignition coil is responsible for generating the high - voltage sparks required to ignite the air - fuel mixture in the engine cylinders. If the ignition coil malfunctions, the engine may misfire or fail to start.
2.Timing and precision: It plays a crucial role in maintaining the precise timing and synchronization of spark ignition. By delivering high - voltage pulses to the spark plugs at the right moment, it ensures optimal combustion and engine performance.
- Compatible models
9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9 R140LC9A R140LC9S R145CR9 R145CR9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R290LC9 R290LC9MH R300LC9A R300LC9S R300LC9SH R320LC9 R330LC9A R330LC9S R330LC9SH R480C9MH R480LC9S R520LC9S RB140LC9S RB160LC9S RB220LC9S RB260LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX140L HX160L HX180L HX220L HX235L HX260L HX300L
- More other coil parts applicable for HYUNDAI machine
| XJAF-00540 COIL ASSY |
| 35DS-7, 35DS-7E, 50DS-7E, 80D-7, HDF50-7S, R110-7, R110-7A, R140LC-7A, R140LC9, R140W7A, R145CR9, R160LC7A, R160LC9, R170W7A, R180LC7A, R180LC9 |
| XKAL-00050 COIL |
| HL730-7, HL730TM7, HL740-7, HL740TM-7, HL757-7, HL757TM7, HL760-7, HL770-7, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R... |
| ZGAW-00008 COIL |
| HL730-9, HL730-9A, HL730TM-9, HL730TM-9A, HL740-9, HL740-9A, HL740-9B, HL740-F, HL740TM-9, HL740TM-9A, HL740TM-F, HL757-9, HL757-9A, HL757-F, HL757TM-9, HL757TM-9A, HL757TM-F, HL760-9, HL760-9A, HL760... |
| LTC-0627V-MD/DT COIL |
| HL757TM7, HL757TM7A, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R... |
| XKBN-01627 COIL-HEIL |
| BREAKERS, HX160L, HX180L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, RB160LC9S |
| XKBN-00888 COIL-HELI |
| BREAKERS, HW210, HX220L, HX220NL, HX235L, HX260L, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, ... |
| XKBN-00919 COIL-HELI |
| BREAKERS, HW210, HX220L, HX220NL, HX235L, HX260L, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R210W9A, R210W9S, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, ... |
| XKBN-00985 COIL-HELI |
| BREAKERS, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R360LC9, R380LC9A, R380LC9SH, R390LC9, R430LC9, R430LC9A, R430... |
| XKBN-01131 COIL-HELI |
| BREAKERS, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R360LC9, R380LC9A, R380LC9SH, R390LC9, R430LC9, R430LC9A, R430... |

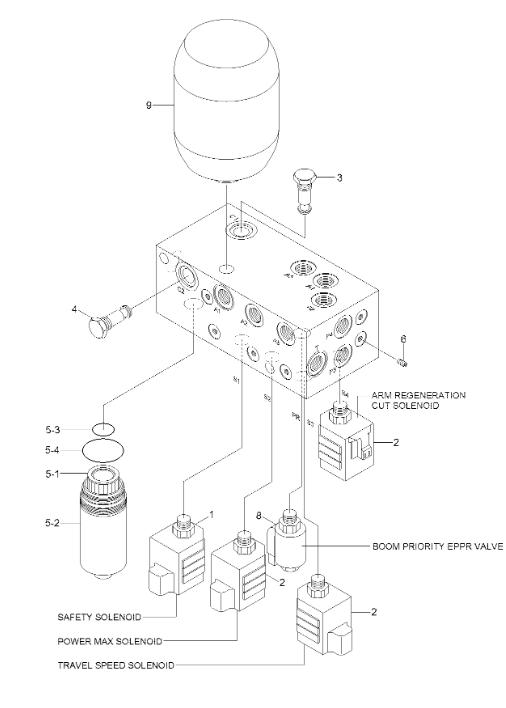

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q6-20062 | [1] | 5-CARTRIDGE VALVE | 5 CARTRIDGE |
| 1 | XKCH-00022 | [1] | M-SOLENOID VLV ASSY | WITH COIL |
| 1-1. | XKCH-00020 | [1] | COIL | NOT SHOWN |
| 2 | XKCH-00025 | [3] | SOLENOID VALVE ASSY | WITH COIL |
| 2-1. | XKCH-00020 | [1] | COIL | NOT SHOWN |
| 3 | XKCH-00014 | [1] | VALVE-CHECK | |
| 4 | XKCH-00015 | [1] | VALVE-CHECK | |
| 5 | XKCH-00045 | [1] | LINE FILTER ASSY | |
| 5-1. | 31Q6-20340 | [1] | ELEMENT-LINE FILTER | NOT SHOWN |
| 5-2. | XKCH-00012 | [1] | HOUSING-FITLER | |
| 5-3. | XKCH-00043 | [1] | O-RING | |
| 5-4. | XKCH-00044 | [1] | O-RING | |
| 6 | XKCH-00011 | [9] | PLUG-WRENCH | |
| 8 | 31QA-20041 | [1] | VALVE ASSY-EPPR | WITH COIL |
| 8-1. | XKCH-00017 | [1] | COIL | NOT SHOWN |
| 9 | 31Q6-20510 | [1] | ACCUMULATOR |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
