8101575 Muffler Exhaust Pipe HITACHI Excavator Spare Parts Fitting For ZX470H-3 ZX500LC-3
- 8101575 Muffler Exhaust Pipe HITACHI Excavator Spare Parts Fitting For ZX470H-3 ZX500LC-3
- Specifiion
| Name | Exhaust Pipe |
| Parts No | 8101575 |
| Machine Model | ZX450-3 ZX470H-3 ZX500LC-3 ZX500LC-3F ZX520LCH-3 |
| egory | HITACHI Spare Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
1.Protecting vehicle components: Some muffler exhaust pipes are equipped with heat - insulation layers, which can prevent the heat of high - temperature exhaust gas from being transferred to other components of the vehicle, avoiding damage to other components caused by high temperature and protecting the overall performance and safety of the vehicle.
2.Ensuring exhaust system sealing: The muffler exhaust pipe is usually connected to other components of the exhaust system through a connecting nut. The connecting nut is equipped with a sealing ring, which can ensure the tight connection between the exhaust pipe and the muffler, prevent exhaust gas leakage, and ensure the sealing and integrity of the entire exhaust system.
- Compatible models
EXCAVATORS PZX450-HCME ZX450-3 ZX450-3F ZX470H-3 ZX470H-3-HCMC ZX470H-3F ZX470R-3 ZX470R-3F ZX500LC-3 ZX500LC-3F ZX520LCH-3 ZX520LCH-3F ZX520LCR-3 ZX520LCR-3F HITACHI
- More other pipe parts fit for HITACHI machine
| 5154112231 PIPE; JOINT |
| 135C RTS JD, 225CL RTS JD, 270C LC JD, 330C LC JD, 370C JD, 470G LC, 600C LC JD, 670G LC, 870G LC, CD1500, CD2000, CG45, CP215, CP220-3, CX1000, CX1000-C, CX1100, CX1800, CX2000, CX650-2, DX40-C, DX40... |
| 7055668 PIPE |
| PZX450-HCME, ZX450-3, ZX450-3F, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX500LC-3, ZX500LC-3F, ZX520LCH-3, ZX520LCH-3F, ZX520LCR-3, ZX520LCR-3F |
| 8109098 PIPE |
| ZX400R-3, ZX520LCR-3 |
| 8097054 PIPE |
| ZX450, ZX450-3, ZX450H, ZX470H-3, ZX480LCK-3 |
| 9767876 PIPE |
| ZX470H-3, ZX470LCH-5B, ZX480LCK-3 |
| 7053802 PIPE |
| ZX120-3, ZX130K-3, ZX200-3, ZX210H-3, ZX210K-3, ZX225USR-3, ZX225USRK-3, ZX240-3, ZX250H-3, ZX250K-3, ZX330-3, ZX350H-3, ZX350K-3, ZX450-3, ZX470H-3 |
| 8118103 PIPE |
| ZX450-3 |
| 8110617 PIPE |
| ZX470H-3, ZX480LCK-3 |
| 8111512 PIPE |
| PZX450-HCME, ZX450-3, ZX450-3F, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX500LC-3, ZX500LC-3F, ZX520LCH-3, ZX520LCH-3F, ZX520LCR-3, ZX520LCR-3F |
| 7053882 PIPE |
| PZX450-HCME, ZX450-3, ZX450-3F, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX500LC-3, ZX500LC-3F, ZX520LCH-3, ZX520LCH-3F, ZX520LCR-3, ZX520LCR-3F |
| 9767838 PIPE |
| ZX450-3, ZX470H-3 |
| 8114084 PIPE |
| ZX470H-3, ZX480LCK-3 |
| 8095688 PIPE |
| EX8000, EX8000-6 |
| 8094417 PIPE |
| ZX1000K-3, ZX870H-3 |
| 8092303 PIPE |
| ZX230, ZX240H, ZX240K, ZX250-HCME |
| 8089780 PIPE |
| ZX210W, ZX210W-AMS |
| 8089510 PIPE |
| ZX450-3, ZX470H-3 |
| 8087302 PIPE |
| ZX30U |
| 8113481 PIPE |
| ZX250K-3 |
| 8112074 PIPE |
| ZX170WM-3 |
| 8109077 PIPE |
| ZX450-3, ZX470H-3, ZX480LCK-3 |
| 8107252 PIPE |
| ZX210K-3, ZX225USRK-3 |
| 8105871 PIPE;SUCTION |
| ZX10U-2, ZX8-2, ZX8U-2 |
| 8104713 PIPE |
| EX2500-6, EX2600-6BH, EX2600-6LD |

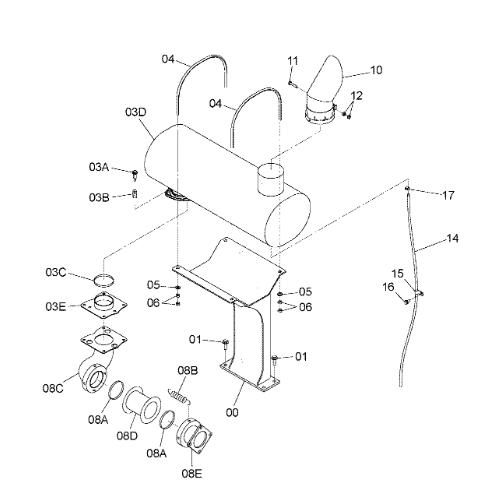

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 6023871 | [1] | BRACKET | |
| 1 | J281250 | [4] | BOLT;SEMS | |
| 01A. | J901250 | [1] | BOLT | |
| 01B. | 4249324 | [1] | WASHER | |
| 3 | 4638628 | [1] | MUFFLER | |
| 03A. | 4711619 | [3] | BOLT | |
| 03B. | 4711618 | [3] | SPRING | |
| 03C. | 4711033 | [1] | SEAL | |
| 03D. | +++++++ | [1] | CAASE | |
| 03E. | +++++++ | [1] | FLANGE | |
| 4 | 4637836 | [2] | BOLT;U | |
| 5 | J222012 | [4] | WASHER | |
| 6 | M520012 | [8] | NUT | |
| 8 | 4638671 | [1] | PIPE;EXHAUST | |
| 08A. | 4711033 | [2] | SEAL | |
| 08B. | 4711034 | [4] | SPRING | |
| 08C. | +++++++ | [1] | PIPE | |
| 08D. | +++++++ | [1] | PIPE | |
| 08E. | +++++++ | [1] | FLANGE | |
| 10 | 8101575 | [1] | PIPE;EXHAUST | |
| 11 | J921050 | [1] | BOLT | |
| 12 | M520010 | [2] | NUT | |
| 14 | 4639683 | [1] | TUBE | |
| 15 | 4344303 | [1] | CLIP | |
| 16 | J271025 | [1] | BOLT;SEMS | |
| 16A. | J901025 | [1] | BOLT | |
| 16B. | J222010 | [1] | WASHER | |
| 17 | 4508575 | [1] | CLAMP;HOSE |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
