ZGAQ-00986 ZGAQ00986 Disc-Clutch Excavator Spare Parts For HYUNDAI R140W7 R170W7 R200W7
- ZGAQ-00986 ZGAQ00986 Disc-Clutch Excavator Spare Parts For HYUNDAI R140W7 R170W7 R200W7
- Specifiion
| spare parts name | Disc-Clutch |
| Equipment Model | R140W7 R170W7 R200W7 |
| Parts egory | HYUNDAI Excavator Spare Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Power transmission: The clutch disc is loed between the engine flywheel and the clutch pressure plate. When the driver releases the clutch pedal, the pressure plate presses the clutch disc against the flywheel. Due to the friction between them, the power of the engine is transmitted to the input shaft of the transmission, enabling the vehicle to obtain power and move forward.
2.Power disconnection: When the driver steps on the clutch pedal, the separation bearing pushes the clutch release lever, causing the pressure plate to loosen the clutch disc. At this time, the clutch disc is separated from the flywheel, and the power transmission between the engine and the transmission is cut off, which is convenient for the driver to shift gears.
- Compatible models
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R200W7
- More other disc parts applicable for HYUNDAI machine
| ZGAQ-02220 DISC-O/CLUTCH |
| HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| ZGAQ-02330 DISC-I/CLUTCH(2.5) |
| HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| ZGAQ-02331 DISC-I/CLUTCH(2.0) |
| HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| ZGAQ-02332 DISC-I/CLUTCH(3.0) |
| HW210, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180W9A, R180W9S, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| ZGAQ-02221 DISC-O/CLUTCH(2.5) |
| R170W7, R170W7A, R170W9S, R180W9S |
| ZGAQ-02222 DISC-O/CLUTCH(2.0) |
| R170W7, R170W7A, R170W9S, R180W9S |
| ZGAQ-02223 DISC-O/CLUTCH(3.0) |
| R170W7, R170W7A, R170W9S, R180W9S |
| ZGAQ-01298 DISC-O/CLUTCH(2.0) |
| R200W7 |
| ZGAQ-01296 DISC-O/CLUTCH(2.5) |
| R200W7 |
| ZGAQ-01297 DISC-O/CLUTCH(3.0) |
| R200W7 |
| ZGAQ-01299 DISC-I/CLUTCH |
| R200W7 |
| ZGAQ-01369 DISC-O/CLUTCH |
| R200W7 |

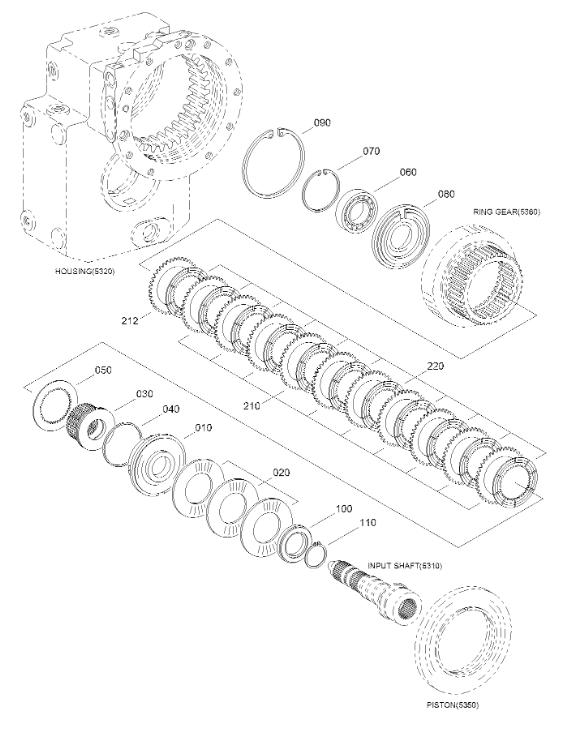

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRANSMISSION | SEE 5300 |
| 10 | ZGAQ-00972 | [1] | PISTON | |
| 20 | ZGAQ-00973 | [1] | SPRING-CUP | |
| 30 | ZGAQ-00974 | [1] | CARRIER-DISC | |
| 40 | ZGAQ-00975 | [1] | GASKET | |
| 50 | ZGAQ-00976 | [1] | SHEET | |
| 60 | ZGAQ-00977 | [1] | BEARING-BALL | |
| 70 | ZGAQ-00978 | [1] | RETAINER RING | |
| 80 | ZGAQ-00979 | [1] | DISC-CENTERING | |
| 90 | ZGAQ-00499 | [1] | RING-RETAINING | |
| 100 | ZGAQ-00980 | [1] | SHIM-SUPPORT | |
| 110 | ZGAQ-00981 | [1] | RETAINER RING | |
| 210 | ZGAQ-00982 | [10] | DISC-O/CLUTCH(1.2) | |
| 212 | ZGAQ-00983 | [1] | DISC-O/CLUTCH(1.4) | |
| 212 | ZGAQ-00984 | [1] | DISC-O/CLUTCH(1.0) | |
| 212 | ZGAQ-00982 | [1] | DISC-O/CLUTCH(1.2) | |
| 212 | ZGAQ-00985 | [1] | DISC-O/CLUTCH(1.8) | |
| 220 | ZGAQ-00986 | [11] | DISC-CLUTCH |
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
