56B-22-32770 56B2232770 Bearing KOMATSU Dump Truck Spare Parts For HM400-3
- 56B-22-32770 56B2232770 Bearing KOMATSU Dump Truck Spare Parts Fitting For HM400-3
- Specifiion
| Name | Bearing |
| Parts No | 56B-22-32770 56B2232770 |
| Machine Model | HM400-3 HM400-3R HM400-3M0 |
| egory | Center Axle, Final drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Failure Modes and Troubleshooting
1.Common Issues:
Wear and Fatigue: Caused by inadequate lubriion or overloading. Symptoms include metallic noise or increased vibration.
Corrosion: Accelerated by exposure to saltwater or acidic environments. Inspect seals and apply rust inhibitors during maintenance.
Misalignment: Leads to uneven load distribution and premature failure. Recheck alignment with a laser alignment tool.
2.Diagnostic Steps:
Thermography: Identify hotspots indiing excessive friction.
Ultrasonic Testing: Detect internal cracks or material degradation.
- Compatible models
DUMP TRUCKS HM400 Komatsu
- More other bearing parts fit for KOMATSU machine
| 708-27-12880 BEARING |
| PC1000, PC1000SE, PC1000SP, PC1600, PC1600SP, PC300, PC300HD, PC310, PC400, PC400HD, PC410, PC650, PC650SE, PC710, PC710SE |
| 569-27-71960 BEARING |
| HD465, HD605 |
| 175-963-1250 BEARING ASS'Y |
| D85A, D85E |
| 3EB-24-05100 BEARING KIT,KING PIN |
| FD20/25, FD20H/25H, FD20N/25N, FD30, FD30H, FD30N, FG20/25, FG20H/25H, FG20L/25L, FG20N/25N, FG30, FG30H, FG30N |
| 423-15-13390 BEARING |
| 538, WA350, WA380 |
| 06307-06206 BEARING |
| BUCKET, PC18MR |
| 708-8H-32140 BEARING |
| BR550JG, BR580JG, D155AX, D475A, D475ASD, GC380F, PC100L, PC200, PC210, PC220, PC230, PC240, PC250, PC250HD, PC270, PC290, PC300, PC300SC, PC340, PC350, WA900, WA900L |
| 307-15-11930 BEARING |
| FD35/40, FD35Z/40Z, FD45, FD50A, FG35/40, FG35Z/40Z, FG45, FG50A |
| 561-22-62990 Bearing |
| HD785 |
| 417-15-12850 BEARING |
| 512, 518, WA100, WA100SS, WA100SSS, WA120, WA150, WA180, WR11, WR11SS |
| ST5544 BEARING |
| GD555, GD655, GD675, PF3W, PW100, PW100N, PW100NS, PW100S, PW128UU, PW150, PW20, PW200, PW210, PW30, PW30T, WA20, WA200, WA200PT, WA30, WA40 |
| 708-8F-12151 BEARING |
| BP500, BR120T, BR200J, BR200R, BR200S, BR200T, BR250RG, BR300J, BR300S, BR310JG, BR350JG, BR380JG, BR480RG, BR580JG, CS360, CS360SD, D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85MS, D85PX, DRAWBAR |

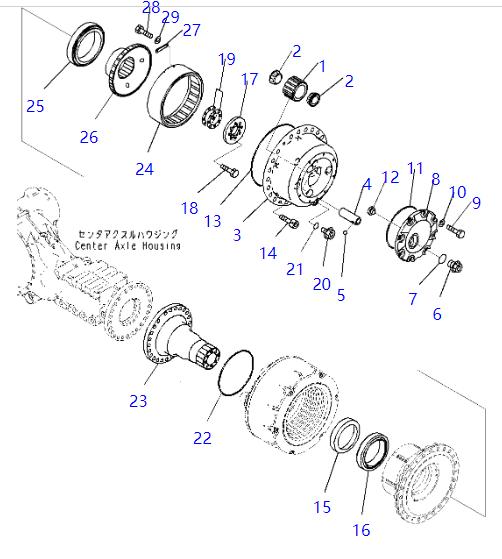

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 56B-23-30000 | [1] | Axle Assembly, Center Komatsu China | ||
| ["SN: 3001-UP"] |$0. | ||||
| 56B-23-32000 | [1] | Final Drive Assembly Komatsu China | ||
| ["SN: 3001-UP"] |$1. | ||||
| 56B-23-34000 | [1] | Final Drive Assembly, L.H. Komatsu China | ||
| ["SN: 3001-UP"] |$2. | ||||
| 1 | 56B-22-32530 | [3] | Gear, Planetary Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 2 | 56B-22-32770 | [6] | Bearing Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 3 | 56B-22-32610 | [1] | Carrier Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 4 | 56B-22-32510 | [3] | Shaft Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 5 | 04260-01587 | [3] | Ball, Steel Komatsu | 0.018 kg. |
| ["SN: 3001-UP"] | ||||
| 6 | 07044-13620 | [1] | Plug Komatsu | 0.496 kg. |
| ["SN: 3001-UP"] analogs:["0704403620"] | ||||
| 7 | 07002-13634 | [1] | O-ring Komatsu China | 0.013 kg. |
| ["SN: 3001-UP"] analogs:["0700203634"] | ||||
| 8 | 56B-22-32620 | [1] | Cover Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 9 | 01010-61235 | [8] | Bolt Komatsu | 0.048 kg. |
| ["SN: 3001-UP"] analogs:["01010E1235", "0101031235", "M018011200356"] | ||||
| 10 | 01643-31232 | [8] | Washer Komatsu | 0.027 kg. |
| ["SN: 3001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 11 | 07000-15280 | [1] | O-ring Komatsu China | 0.033 kg. |
| ["SN: 3001-UP"] analogs:["0700005280"] | ||||
| 12 | 286-22-12630 | [1] | Button Komatsu | 0.3 kg. |
| ["SN: 3001-UP"] | ||||
| 13 | 07000-15410 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 3001-UP"] analogs:["0700005410"] | ||||
| 14 | 01252-A1025 | [3] | Bolt, Hexagon Socket Head Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 15 | 56B-22-12631 | [1] | Retainer Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 16 | 23W-22-22350 | [1] | Bearing Komatsu | 6.545 kg. |
| ["SN: 3001-UP"] analogs:["56D2222350"] | ||||
| 17 | 56B-22-32220 | [1] | Retainer Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 18 | 01010-61455 | [8] | Bolt Komatsu | 0.091 kg. |
| ["SN: 3001-UP"] analogs:["0101081455"] | ||||
| 19 | 56B-22-32290 | [2] | Shim, T=1.0mm Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 19 | 56B-22-32280 | [1] | Shim, T=0.3mm Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 19 | 56B-22-32270 | [2] | Shim, T=0.2mm Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 19 | 56B-22-32260 | [2] | Shim, T=0.05mm Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 20 | 07044-12412 | [1] | Plug Komatsu | 0.09 kg. |
| ["SN: 3001-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 21 | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 3001-UP"] analogs:["0700202434", "0700213434"] | ||||
| 22 | 07000-15300 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 3001-UP"] analogs:["0700005300"] | ||||
| 23 | 56B-23-33210 | [1] | Tube Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 24 | 56B-22-32540 | [1] | Gear, Ring Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 25 | 56B-22-32790 | [1] | Bearing Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 26 | 56B-22-32340 | [1] | Hub Komatsu China | |
| ["SN: 3001-UP"] | ||||
| 27 | 421-22-12360 | [6] | Plate Komatsu | 0.085 kg. |
| ["SN: 3001-UP"] | ||||
| 28 | 01010-60820 | [12] | Bolt Komatsu | 0.013 kg. |
| ["SN: 3001-UP"] analogs:["01010E0820", "0101030820"] | ||||
| 29 | 01643-30823 | [12] | Washer Komatsu | 0.004 kg. |
| ["SN: 3001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] |
