ZGAQ02908 ZGAQ-02908 Thrust Washer Excavator Spare Parts For HYUNDAI R140W9
- ZGAQ02908 ZGAQ-02908 Thrust Washer Excavator Spare Parts Fitting For HYUNDAI R140W9
- Specifiion
| spare parts name | Thrust washer |
| Equipment Model | R140W9 R140W9A R140W9S |
| Parts egory | HYUNDAI Excavator Spare Parts |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
- Function
1.Protecting the connected - part surface: The washer is placed between the nut and the connected part. It can prevent the nut from scratching the surface of the connected part during the tightening process, thus playing a protective role and ensuring the integrity and appearance quality of the connected - part surface.
2.Distributing load: It can increase the contact area between the nut and the connected part, making the pressure of the nut on the connected part more evenly distributed. This is especially important when the connected part is made of soft materials or has a large - size hole, which can avoid local over - pressure of the connected part and prevent the connected part from being damaged.
- Compatible models
9-SERIES WHEEL EXCAVATOR R140W9 R140W9A R140W9S
F-SERIES WHEEL EXCAVATOR HW140
- More other washer parts applicable for HYUNDAI machine
| S441-240006 WASHER-HARDENED |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 110DE, 15G, 15G-7M, 15L, 15L-7A, 15L-7M, 15LC, 15LC-7A, 15LC-7M, 16B, 16B-9, 16B-9F, 180D-9, 180DE, 20BC-7, 20BC-9, 20G, 20L, 20LC, 22B-7, 22B-9, 22B-9F, 22BH-9, 22BH... |
| S411-100002 WASHER-SPRING |
| 100D-7, 110D-7E, 15D, 15G, 15G-7A, 15L, 15L-7A, 15LC-7M, 15P-7, 20BH-7, 20D-7, 20D-7E, 20G, 20L, 20LC, 22D-9T, 250DE, 25L-7A, 25LC-7A, 33HDLL, 35D-7, 35DS-7, 35DS-7E, 35L, 42HDLL, DX20, H70, H80, HBF1... |
| S411-060006 WASHER-SPRING |
| 100D-7, 10BOP-7, 10BR, 10BR-9, 10BTR-9, 14BR, 14BRJ-7, 14BRJ-9, 15BR-9E, 15BRP-7, 15BRP-9, 15BT, 15BT-9, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, 15LC, 15LC-7A, 15LC-7M, 15P-7, 15... |
| S411-120006 WASHER-SPRING |
| 100D-7, 10BOP-7, 10BR, 10BR-9, 10BTR-9, 110D-7A, 110D-7E, 110D-9, 110DE, 14BR, 14BRJ-7, 14BRJ-9, 15BR-9E, 15BRP-7, 15BRP-9, 15BT, 15BT-9, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, ... |
| S411-100006 WASHER-SPRING |
| 100D-7, 10BOP-7, 10BR, 10BR-9, 10BTR-9, 110D-7A, 110D-7E, 110D-9, 110DE, 14BR, 14BRJ-7, 14BRJ-9, 15BR-9E, 15BRP-7, 15BRP-9, 15BT, 15BT-9, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, ... |
| S411-160002 WASHER-SPRING |
| 100D-7, 10BR, 110D-7A, 110D-7E, 14BR, 15BT, 15BT-9, 15LC-7M, 20BC-7, 20BC-9, 20BH-7, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 20LC, 22B-7, 22BHA-7, 25GC-7S, 25L-7A, 25LC-7A, 25LC-7M, 25LC-7S, 25LF, 33HDLL... |
| 3900269 WASHER-PLAIN |
| 100D-7, 180DE, 250DE, 33HDLL, 42HDLL, H70, H80, HDF50A, HL17C, HL25C, HL720-3C, HL730-7, HL730-7A, HL730-9, HL730-9S, HL730-9SB, HL7303C, HL730TM-9, HL730TM3C, HL730TM7, HL730TM7A, HL740-3, HL740-3ATM... |
| S403-08500B WASHER-PLAIN |
| 10BOP-7, 10BR, 10BR-9, 10BTR-9, 14BR, 15BR-9E, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, 15LC, 15LC-7A, 15LC-7M, 20BR, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 20LC, 22D-9, 22D-9E, 22D... |
| S441-160006 WASHER-HARDENED |
| 10BOP-7, 110D-7A, 110D-7E, 110D-9, 110DE, 14BRJ-7, 15D, 15L, 15LC, 15LC-7A, 16B, 16B-9, 16B-9F, 180D-9, 180DE, 20BC-7, 20BC-9, 20BH-7, 20BRJ-7, 20D-7, 20D-7E, 20DF |

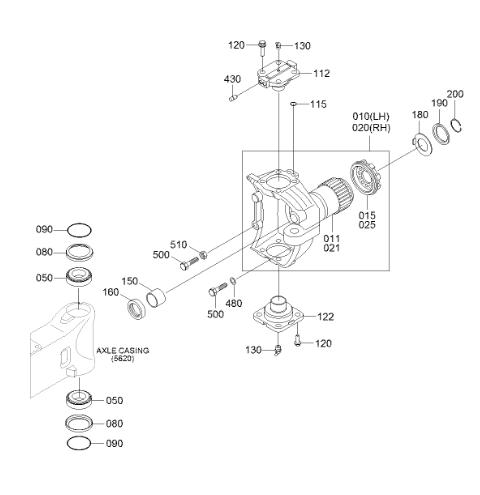

- Parts list diagram
| Pos. | Part No | Qty | Parts name | Comments |
| 10 | ZGAQ-02898 | [1] | JOINT HOUSING-LH | |
| 11 | ZGAQ-04048 | [1] | JOINT HOUSING-LH | |
| 15 | ZGAQ-02899 | [1] | NUT-SLOTED | |
| 20 | ZGAQ-02900 | [1] | JOINT HOUSING-RH | |
| 21 | ZGAQ-04049 | [1] | JOINT HOUSING-RH | |
| 25 | ZGAQ-02899 | [1] | NUT-SLOTED | |
| 50 | ZGAQ-02901 | [4] | BEARING-TAPER ROLLER | |
| 58 | ZGAQ-03518 | [4] | COMPOUND-SEAL | NOT SHOWN |
| 80 | ZGAQ-02902 | [4] | CAP-SEALING | |
| 90 | ZGAQ-04050 | [4] | O-RING | |
| 112 | ZGAQ-02904 | [2] | PIN-BEARING | |
| 115 | ZGAQ-01254 | [4] | O-RING | |
| 120 | ZGAQ-02905 | [16] | SCREW-LOCKING | |
| 122 | ZGAQ-02906 | [2] | PIN-BEARING | |
| 130 | ZGAQ-02261 | [4] | NIPPLE-LUBRIC | |
| 150 | ZGAQ-02891 | [2] | BUSHING | |
| 160 | ZGAQ-02892 | [2] | SEAL-SHAFT | |
| 180 | ZGAQ-02907 | [2] | WASHER(2.0)-THRUST | |
| 190 | ZGAQ-02908 | [2] | WASHER(6.0)-THRUST | |
| 200 | ZGAQ-02909 | [2] | RING-RETAINER | |
| 430 | ZGAQ-02200 | [2] | VALVE-VENT | |
| 480 | ZGAQ-04051 | [2] | WASHER-STOP(2.0) | |
| 480 | ZGAQ-04052 | [2] | WASHER-STOP(3.0) | |
| 480 | ZGAQ-04053 | [2] | WASHER-STOP(4.0) | |
| 480 | ZGAQ-04054 | [2] | WASHER-STOP(5.0) | |
| 480 | ZGAQ-02266 | [2] | WASHER-STOP(6.0) | |
| 480 | ZGAQ-02267 | [2] | WASHER-STOP(6.5) | |
| 480 | ZGAQ-04055 | [2] | WASHER-STOP(7.0) | |
| 480 | ZGAQ-04056 | [2] | WASHER-STOP(7.5) | |
| 480 | ZGAQ-02274 | [2] | WASHER-STOP(8.0) | |
| 480 | ZGAQ-04057 | [2] | WASHER-STOP(8.5) | |
| 480 | ZGAQ-02275 | [2] | WASHER-STOP(9.0) | |
| 480 | ZGAQ-04058 | [2] | WASHER-STOP(9.5) | |
| 480 | ZGAQ-02276 | [2] | WASHER-STOP(10.0) | |
| 480 | ZGAQ-04059 | [2] | WASHER-STOP(10.5) | |
| 480 | ZGAQ-02277 | [2] | WASHER-STOP(11.0) | |
| 480 | ZGAQ-04060 | [2] | WASHER-STOP(11.5) | |
| 480 | ZGAQ-02278 | [2] | WASHER-STOP(12.0) | |
| 480 | ZGAQ-04061 | [2] | WASHER-STOP(12.5) | |
| 480 | ZGAQ-02279 | [2] | WASHER-STOP(13.0) | |
| 480 | ZGAQ-04062 | [2] | WASHER-STOP(13.5) | |
| 480 | ZGAQ-02280 | [2] | WASHER-STOP(14.0) | |
| 480 | ZGAQ-04063 | [2] | WASHER-STOP(1.5) | |
| 480 | ZGAQ-04064 | [2] | WASHER-STOP(1.3) | |
| 480 | ZGAQ-04065 | [2] | WASHER-STOP(1.2) | |
| 480 | ZGAQ-04066 | [2] | WASHER-STOP(1.0) | |
| 500 | ZGAQ-02362 | [4] | SCREW-STOP | |
| 510 | ZGAQ-02910 | [2] | NUT-HEX |
|
- Advantage
2. The engine parts are supplied strictly according to the genuine parts alog.
3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.
4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
- Packing & Delivery
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
