706-7K-91350 706-7K-91340 7067K91350 Disc KOMATSU Excavator Spare Parts For PC300-8 PC350-8
- 706-7K-91350 706-7K-91340 7067K91350 Disc KOMATSU Excavator Spare Parts For PC300-8 PC350-8
- Specifiion
| Name | Disc |
| Parts No | 706-7K-91350 706-7K-91340 7067K91350 |
| Machine Model | HB205 HB215 PC1250 PC PC200 PC2000 PC220LL PC270LL PC300 |
| egory | Swing Machinery and Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
1.Transmit Torque: Engage and disengage the swing motor’s gears to control the excavator’s rotation.
2.Regulate Movement: Provide friction to stabilize the upper structure during stops or directional changes, preventing sudden jerks or slippage .
3.Absorb Shock: Cushion mechanical stress during high-load operations, reducing wear on gears and hydraulic components.
- Compatible models
EXCAVATORS HB205 HB215 PC1250 PC1250SP PC200 PC2000 PC220LL PC270LL PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL PC360 PC380 PC390 PC390LL PC400 PC450 PC490 PC550 Komatsu
- More other disc parts fit for KOMATSU machine
| 232-10-14120 DISC |
| GD30, GD31, GD37 |
| 565-10-12112 DISC |
| HD180 |
| 145-14-12710 DISC |
| D65A, D65S |
| 281-15-12711 DISC |
| WS16 |
| 565-10-12113 DISC |
| HD180 |
| 175-15-12716 DISC |
| D135A, D155A, D155W, D355C, HD465, HD680, HD785 |
| 120-22-31232 DISC |
| D31P, D31PL, D31PLL, D31Q, D31S, D40A, D40AM, D40P, D40PF, D40PL, D40PLL, D41A, D41P |
| 100-22-15101 DISC |
| D20A, D20P, D20PL, D20Q, D20S, D21A, D21P, D21PL, D21Q, D21S |
| 708-7R-15122 DISC |
| PC27MR, PC27MRX, PC30MR, PC30MRX, PC30UU, PC35MR, PC35MRX, PC38UU, PC40MR, PC40MRX, PC45MR, PC45MRX, PC50MR, PC55MR, PC58UU |
| 566-33-41242 DISC,BRAKE (RED) |
| 568, HD205, HD325, WA400, WA420, WA450, WA470, WA500, WA600, WD600 |
| 708-8F-35120 DISC |
| BP500, BR200J, BR200R, BR200S, BR200T, BR250RG, BR300J, BR300S, BR310JG, BR350JG, BR380JG, BR480RG, CS360, CS360SD, HB205, HB215, PC100L, PC158, PC158US, PC160, PC180, PC190, PC200, PC200CA, PC210, PC... |
| 708-8H-35120 DISC |
| BR550JG, BR580JG, PC100L, PC200, PC210, PC220, PC230, PC240, PC250, PC250HD, PC270, PC290, PC300, PC300SC, PC340, PC350 |

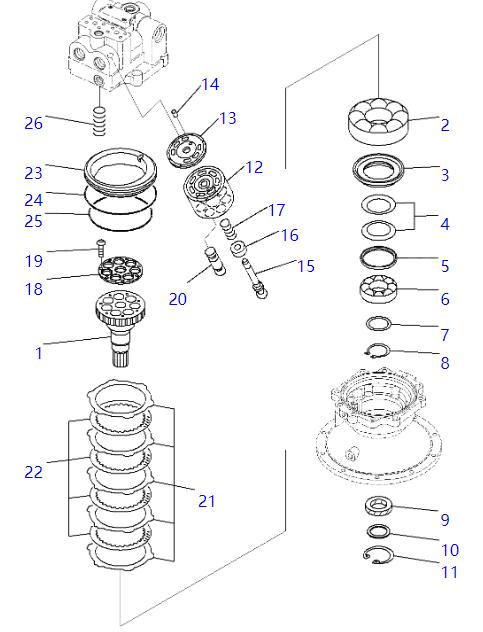

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 706-7K-01040 | [1] | Swing Motor Assembly Komatsu | 123.8 kg. | |
| ["SN: 60001-61500"] analogs:["7067K01170", "7067K01070"] |$0. | ||||
| 706-7K-03030 | [1] | Motor Subassembly Komatsu China | ||
| ["SN: 60001-61500"] |$1. | ||||
| 1 | 706-7K-41610 | [1] | Shaft Komatsu | 8.062 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 2 | 706-77-43880 | [1] | Bearing Komatsu | 5.5 kg. |
| ["SN: 60001-61500", "SCC: C2"] analogs:["7067743890"] | ||||
| 3 | 706-7K-41810 | [1] | Spacer Komatsu | 0.8 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 4 | 706-77-42051 | [2] | Spring Komatsu | 0.14 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 5 | 706-77-42041 | [1] | Seat Komatsu | 0.1 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 6 | 706-77-42890 | [1] | Bearing Komatsu | 1.185 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 7 | 706-77-05010 | [1] | Spacer Kit Komatsu | 0.172 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 7 | 706-77-42440 | [2] | Spacer, T=2.3mm Komatsu | 0.172 kg. |
| ["SN: 60001-61500"] analogs:["7067705010"] | ||||
| 7 | 706-77-42450 | [2] | Spacer, T=2.5mm Komatsu | 0.172 kg. |
| ["SN: 60001-61500"] analogs:["7067705010"] | ||||
| 7 | 706-77-42460 | [2] | Spacer, T=2.7mm Komatsu | 0.172 kg. |
| ["SN: 60001-61500"] analogs:["7067705010"] | ||||
| 8 | 04064-06525 | [1] | Ring, Snap, for Shaft Side Komatsu China | 0.021 kg. |
| ["SN: 60001-61500"] | ||||
| 9 | 706-7K-41650 | [1] | Seal, Oil Komatsu | 0.1 kg. |
| ["SN: 60001-61500"] | ||||
| 10 | 706-7K-41920 | [1] | Spacer Komatsu | 0.04 kg. |
| ["SN: 60001-61500"] | ||||
| 11 | 04065-07525 | [1] | Ring, Snap, for Hole Side Komatsu | 0.021 kg. |
| ["SN: 60001-61500"] | ||||
| 12 | 706-7K-41210 | [1] | Cylinder Block Komatsu | 5.2 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 13 | 706-7K-41710 | [1] | Plate Komatsu | 0.9 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 14 | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 15 | 706-7K-41120 | [1] | Shaft Komatsu | 0.62 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 16 | 706-77-42130 | [1] | Ring Komatsu | 0.1 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 17 | 706-7K-41140 | [1] | Spring Komatsu | 0.21 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 17 | 706-7K-05010 | [1] | Retainer Kit Komatsu | 0.45 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 20 | 706-7K-41160 | [7] | Piston Subassembly Komatsu | 6.78 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 21 | 706-7K-91340 | [5] | Plate Komatsu | 1 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 22 | 706-7K-91350 | [4] | Disc Komatsu | 0.24 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 23 | 706-7K-91111 | [1] | Brake Piston Komatsu | 3.99 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 24 | 07000-15230 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 60001-61500", "SCC: C2"] analogs:["0700005230"] | ||||
| 25 | 708-8H-15220 | [1] | O-ring Komatsu | 0.025 kg. |
| ["SN: 60001-61500", "SCC: C2"] | ||||
| 26 | 706-7K-91360 | [6] | Spring Komatsu | 0.17 kg. |
| ["SN: 60001-61500", "SCC: C2"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
