498-4576 4984576 Spring Excavator Spare Parts For C4.4 C7.1 320 323 324
- 498-4576 4984576 Spring Excavator Spare Parts Fitting For C4.4 C7.1 320 323 324
- Specifiion
| Name | Spring |
| Parts No | 498-4576 4984576 |
| Machine Model | 320 323 324 325 326 330 333 336 336F 340 345 |
| egory | Hood & Guard |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Features
Smooth, controlled movement to prevent hood slamming.
Locking mechanism secures the hood in a fixed position during maintenance.
High wear resistance for long service life.
- Compatible models
Excavators 320, 323, 324, 325, 326, 330, 333, 336, 336F, 340, 345, 349, 352, 373, 374, 528, 538, 548, 558, MH3032, MH3040
Drills MD6640
Material Handlers MH3040 C.ater.pillar.
- More other spring parts fit for C A T machine
| 4906496 SPRING-PIN |
| C A T |
| 4666545 SPRING |
| C A T |
| 4596310 SPRING-SPACER |
| C A T |
| 4567022 SPRING-FREEWHEEL |
| C A T |
| 4331724 SPRING |
| C A T |
| 3937498 SPRING-GUIDE |
| C A T |
| 5214922 SPRING |
| C A T |
| 5204598 SPRING |
| C A T |
| 5193647 SPRING |
| C A T |
| 5193644 SPRING |
| C A T |
| 5075985 SPRING-RETURN |
| C A T |
| 5005639 SPRING |
| C A T |

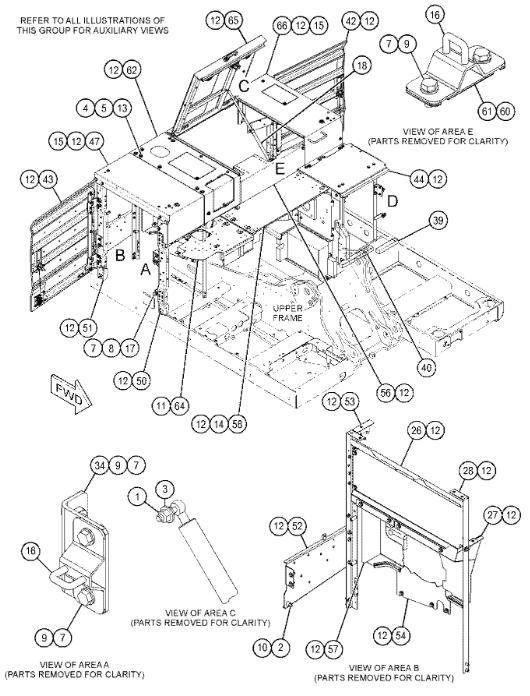

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5C-7261 M | [2] | NUT (M8X1.25-THD) | |
| 2 | 5P-1076 | [1] | WASHER-HARD (13.5X30X4-MM THK) | |
| 3 | 5P-4116 | [2] | WASHER-HARD (8.8X20.5X2-MM THK) | |
| 4 | 7Y-2853 | [8] | SPACER (13X38X5-MM THK) | |
| 5 | 7Y-2854 | [6] | SPACER (24X38X3-MM THK) | |
| 6 | 7Y-8990 | [2] | SPACER (24X38X1.5-MM THK) | |
| 7 | 8T-4121 | [20] | WASHER-HARD (11X21X2.5-MM THK) | |
| 8 | 8T-4133 M | [6] | NUT (M10X1.5-THD) | |
| 9 | 8T-4136 M | [14] | BOLT (M10X1.5X25-MM) | |
| 10 | 8T-4184 M | [1] | BOLT (M12X1.75X45-MM) | |
| 11 | 135-8573 | [4] | BOLT AS | |
| 12 | 135-8575 | [119] | BOLT AS | |
| 13 | 135-8577 | [8] | BOLT AS | |
| 14 | 170-3016 | [8] | SPACER (19X32X2-MM THK) | |
| 15 | 170-9360 | [2] | GROMMET | |
| 16 | 327-2886 | [4] | STRIKER AS | |
| 17 | 343-2465 | [6] | BUMPER | |
| 18 | 498-4576 | [1] | SPRING AS-GAS (ENGINE HOOD) | |
| 265-8463 | [2] | STUD-BALL (M8X1.25X16-MM) | ||
| 549-4357 | [1] | FILM-WARNING (HIGH PRESSURE, READ OMM) | ||
| 19 | 505-7110 | [1] | SUPPORT AS | |
| 20 | 505-7116 | [1] | SUPPORT AS | |
| 21 | 505-7118 | [1] | SUPPORT AS | |
| 22 | 505-7119 | [1] | SUPPORT AS | |
| 23 | 505-7125 | [1] | SUPPORT AS | |
| 24 | 505-7126 Y | [1] | SHEET AS-SOUND SUPPRESSION | |
| 25 | 505-7131 Y | [1] | SHEET AS-SOUND SUPPRESSION | |
| 26 | 505-7180 | [1] | SHEET AS | |
| 27 | 505-7183 | [1] | SHEET AS | |
| 101-9848 D | SEAL (0.3-M) | |||
| 28 | 505-7185 | [1] | SUPPORT AS | |
| 29 | 505-7186 | [1] | SUPPORT AS | |
| 30 | 505-7187 | [1] | SUPPORT AS | |
| 508-9686 | [1] | LINER | ||
| 31 | 508-9554 | [1] | SUPPORT AS | |
| 32 | 508-9555 | [1] | SHEET AS | |
| 508-9692 | [1] | LINER | ||
| 33 | 508-9560 Y | [1] | SHEET AS-SOUND SUPPRESSION | |
| 34 | 508-9583 | [2] | BRACKET AS | |
| 35 | 508-9584 | [1] | BRACKET AS | |
| 36 | 508-9683 | [1] | BRACKET | |
| 37 | 508-9685 | [1] | LINER | |
| 38 | 508-9728 | [3] | ROD | |
| 39 | 516-7545 | [1] | LINER | |
| 40 | 516-7546 | [1] | LINER | |
| 41 | 524-7408 | [3] | CLIP | |
| 42 | 525-0749 Y | [1] | DOOR GP-ACCESS (RADIATOR) | |
| 43 | 525-0751 Y | [1] | DOOR GP-ACCESS (PUMP COMPARTMENT) | |
| 44 | 526-2620 Y | [1] | COVER AS-SOUND SUPPRESSION | |
| 45 | 526-3220 Y | [1] | SHEET AS-SOUND SUPPRESSION | |
| 46 | 526-3222 | [1] | SHEET AS | |
| 508-9701 | [1] | LINER | ||
| 47 | 526-3244 | [1] | COVER AS | |
| 48 | 526-3983 | [1] | SUPPORT AS | |
| 49 | 526-3984 | [1] | SUPPORT AS | |
| 50 | 526-3985 | [1] | SUPPORT AS | |
| 51 | 526-3986 | [1] | SUPPORT AS | |
| 52 | 526-3990 | [1] | SUPPORT AS | |
| 53 | 526-5208 | [1] | SUPPORT AS-HOOD | |
| 54 | 526-9415 | [1] | SHEET | |
| 55 | 527-0507 | [1] | SUPPORT AS | |
| 56 | 527-0545 | [1] | COVER AS | |
| 57 | 527-0639 | [1] | SHEET AS | |
| 527-9199 | [1] | LINER | ||
| 101-9848 D | SEAL (0.2-M) | |||
| 58 | 527-1760 | [1] | COVER AS | |
| 59 | 527-6534 | [1] | LINER | |
| 60 | 527-7804 B | [2] | SHIM (1-MM THK) | |
| 61 | 527-7805 B | [2] | SHIM (2-MM THK) | |
| 62 | 528-3453 Y | [1] | COVER GP-HOOD | |
| 63 | 538-4073 | [1] | SHEET AS | |
| 101-9848 D | SEAL (0.5-M) | |||
| 64 | 541-9809 Y | [1] | COVER AS-SOUND SUPPRESSION | |
| 65 | 541-9810 Y | [1] | HOOD GP-ENGINE (HINGED) | |
| 66 | 551-1662 Y | [1] | COVER GP-SOUND SUPPRESSION | |
| B | USE AS REQUIRED | |||
| D | ORDER BY THE METER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
