540-7019 5407019 Hydraulic Tank Breather Excavator Spare Parts For C9.3B 336 340 330
- 540-7019 5407019 Hydraulic Tank Breather Excavator Spare Parts Fitting For C9.3B 336 340 330
- Specifiion
| Name | Breather |
| Parts No | 540-7019 5407019 |
| Machine Model | 336 340 330 349 |
| egory | Hydraulic Tank |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
It keeps the air in the tank connected to the atmosphere, allowing air to flow in and out of the tank as the fluid level in the tank changes, which helps to balance the pressure inside and outside the tank. At the same time, it has a filtering function to prevent dust, moisture and other pollutants in the air from entering the hydraulic tank, avoiding hydraulic oil pollution and ensuring the normal operation of the hydraulic system.
- Compatible models
EXCAVATOR 336 340 330 349 C.ater.pillar.
- More other breather parts fit for C A T machine
| 5271368 BREATHER |
| C A T |
| 5070646 BREATHER AS |
| C A T |
| 5070644 BREATHER AS |
| C A T |
| 4528104 BREATHER GP |
| C A T |
| 3669277 BREATHER |
| C A T |
| 3637651 BREATHER GP |
| C A T |
| 0005244 BREATHER |
| C A T |
| 3256033 BREATHER-AS-YM |
| C A T |
| 3611716 BREATHER-YM |
| C A T |
| 4354789 BREATHER-YM |
| C A T |
| 5126456 BREATHER-AS-YM |
| C A T |

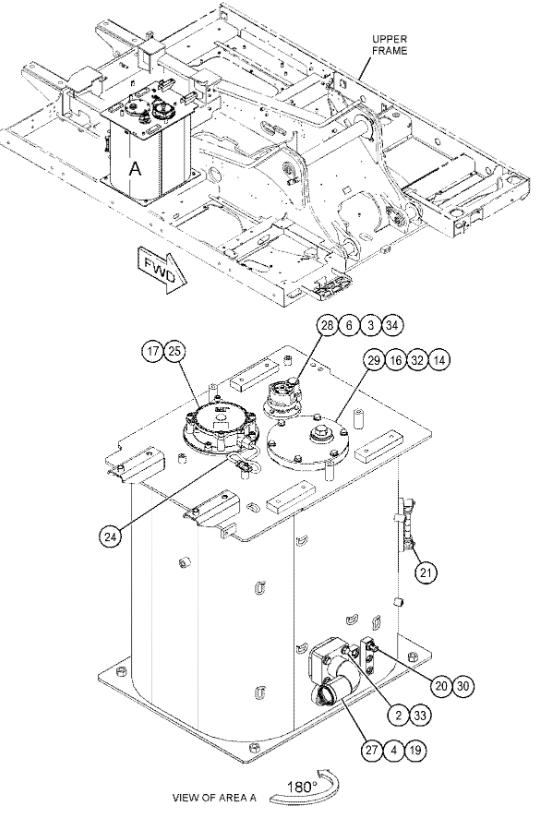

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4196 M | [2] | BOLT (M10X1.5X35-MM) | |
| 2 | 8T-4910 M | [4] | BOLT (M12X1.75X60-MM) | |
| 3 | 5C-9553 M | [3] | BOLT (M6X1X16-MM) | |
| 4 | 175-7896 | [1] | SEAL-O-RING | |
| 5 | 1U-2827 | [1] | GUIDE-VALVE (HYDRAULIC TANK DRAIN) | |
| 6 | 4J-0527 | [1] | SEAL-O-RING | |
| 7 | 5M-2057 | [1] | SEAL-O-RING | |
| 8 | 6D-9157 | [1] | SEAL-O-RING | |
| 9 | 7B-3039 | [1] | SPRING | |
| 10 | 8J-8782 | [1] | BODY-DRAIN VALVE (HYDRAULIC TANK) | |
| 11 | 8J-8783 | [1] | VALVE-DRAIN (HYDRAULIC TANK) | |
| 12 | 8T-0267 M | [2] | BOLT-SOCKET HEAD (M6X1X12-MM) | |
| 13 | 8T-3298 | [1] | SEAL-RECTANGULAR | |
| 14 | 8T-4121 | [8] | WASHER-HARD (11X21X2.5-MM THK) | |
| 15 | 9J-7031 | [1] | PLUG-DRAIN (HYDRAULIC TANK) | |
| 16 | 095-1730 | [1] | SEAL-O-RING | |
| 17 | 105-3484 M | [4] | BOLT-SOCKET HEAD (M10X1.5X25-MM) | |
| 18 | 165-3256 | [1] | PIPE AS | |
| 19 | 175-6176 | [1] | SEAL-O-RING | |
| 20 | 256-6453 | [1] | SENSOR-TEMPERATURE (2-PIN)(HYDRAULIC TANK OIL) | |
| 21 | 347-6081 Y | [1] | GAUGE GP-SIGHT (HYDRAULIC OIL LEVEL) | |
| 22 | 491-6075 | [1] | FILTER GP-OIL (HYDRAULIC CAASE DRAIN)(HYDRAULIC TANK) | |
| 6K-6307 | [1] | SEAL-O-RING | ||
| 23 | 448-1376 Y | [1] | SCREEN GP-HYDRAULIC | |
| 24 | 504-9586 | [1] | SWITCH AS-DIFF PRESSURE (RETURN FILTER) | |
| 8T-8729 | [2] | PIN-CONNECTOR (16-GA TO 18-GA) | ||
| 192-7510 | [1] | SEAL-O-RING | ||
| 512-4914 | [1] | SEAL-FACE | ||
| 25 | 504-9687 Y | [1] | FILTER GP-OIL (HYDRAULIC RETURN)(HYDRAULIC TANK) | |
| 26 | 525-4107 | [1] | PIPE | |
| 27 | 528-5916 | [1] | PIPE AS | |
| 28 | 540-7019 Y | [1] | BREATHER GP (HYDRAULIC TANK) | |
| 29 | 519-8217 | [1] | COVER AS | |
| 30 | 3K-0360 | [1] | SEAL-O-RING | |
| 32 | 8T-4137 M | [6] | BOLT (M10X1.5X20-MM) | |
| 33 | 8T-4223 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 34 | 9X-8256 | [3] | WASHER (6.6X12X2-MM THK) | |
| 35 | 556-7339 | [1] | TANK GP-HYDRAULIC | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
