703-08-93771 7030893771 Swivel Joint Cover KOMATSU Excavator Spare Parts For PC160LC-8 PC190LC-8
- 703-08-93771 7030893771 Swivel Joint Cover KOMATSU Excavator Spare Parts For PC160LC-8 PC190LC-8
- Specifiion
| Name | Swivel Joint Cover |
| Parts No | 703-08-93771 7030893771 |
| Machine Model | HB205 HB215 PC160 PC180 PC190 PC200 PC210 PC220 PC228 |
| egory | Swivel Joint, Inner Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
The swivel joint is a key component in excavators, which is responsible for ensuring the unobstructed oil circuit between the rotating part and the fixed part of the hydraulic system, allowing the excavator to rotate horizontally. The swivel joint cover can prevent debris, dirt, and other external substances from entering the swivel joint, avoiding damage to internal components, reducing wear and tear, and thus extending the service life of the swivel joint. It also helps to maintain the normal operation of the swivel joint, ensuring the smooth rotation and maneuverability of the excavator.
- Compatible models
EXCAVATORS HB205 HB215 PC160 PC180 PC190 PC200 PC210 PC220 PC220LL PC228 PC228US PC230NHD PC240 PC270 PC290 PC300 PC300HD PC308 PC350 PC350HD PC360 PC390 PC390LL PC400 PC450 PC490 PC550 Komatsu
- More other cover parts fit for KOMATSU machine
| 154-911-7851 Cover Assembly |
| D85EX, D85PX |
| 711-59-11251 COVER |
| WA600 |
| 23S-05-57490 COVER |
| LW250 |
| 235-54-31820 COVER |
| GD825A |
| 415-04-11230 COVER |
| WA100M, WA120, WA50, WA70, WA80, WR8 |
| 566-06-84730 Cover |
| HD325, HD405, HD465, HD605 |
| 21T-06-71920 COVER |
| PC1800 |
| 6215-61-2113 COVER |
| EGS1000, EGS1050, EGS1200, HD785, SA12V140, SAA12V140E, SDA12V140, SDA12V140E, WA800, WA900 |
| 6610-71-3060 COVER ASS'Y |
| N, NH, NHC, NT, NTA, NTC, NTO |

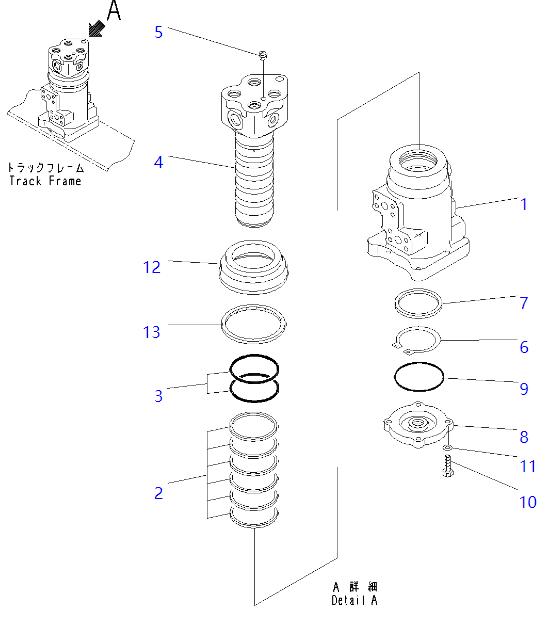

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 703-08-33631 | [1] | Swivel Joint Assembly Komatsu | 37 kg. | |
| ["SN: 350001-UP"] analogs:["7030833610", "7030833630"] |$0. | ||||
| 2. | 703-08-95620 | [6] | Seal, Oil Komatsu China | 0.01 kg. |
| ["SN: 350001-UP"] analogs:["7030895611"] | ||||
| 3. | 07000-15080 | [2] | O-ring Komatsu China | 0.009 kg. |
| ["SN: 350001-UP"] analogs:["0700005080"] | ||||
| 5 | 703-08-98930 | [1] | Plug Komatsu China | |
| ["SN: 350001-UP"] | ||||
| 6. | 04064-07525 | [1] | Ring, Snap, for Shaft Side Komatsu | 0.026 kg. |
| ["SN: 350001-UP"] | ||||
| 7. | 703-08-94510 | [1] | Ring Komatsu | 0.09 kg. |
| ["SN: 350001-UP"] | ||||
| 8. | 703-08-93170 | [1] | Cover Komatsu | 0.36 kg. |
| ["SN: 350001-UP"] | ||||
| 9. | 07000-12105 | [1] | O-ring Komatsu OEM | 0.004 kg. |
| ["SN: 350001-UP"] analogs:["0700002105"] | ||||
| 10. | 01010-80835 | [4] | Bolt Komatsu | 0.019 kg. |
| ["SN: 350001-UP"] | ||||
| 11. | 01643-30823 | [4] | Washer Komatsu | 0.004 kg. |
| ["SN: 350001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 12. | 703-08-93771 | [1] | Cover Komatsu China | |
| ["SN: 350001-UP"] | ||||
| 13. | 703-08-95770 | [1] | Seal, Dust Komatsu OEM | 0.05 kg. |
| ["SN: 350001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
