25/220998 Solenoid Valve Assembly Backhoe Loader Spare Parts Fit For 216 217 3C 3CX 3D
- 25/220998 Solenoid Valve Assembly Backhoe Loader Spare Parts Fit For 216 217 3C 3CX 3D
- Specifiion
| Name | Solenoid Valve |
| Parts No | 25/220998 |
| Machine Model | 1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D |
| egory | Transmission |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
The solenoid valve assembly controls the on - off of the hydraulic oil circuit by energizing and de - energizing the coil. When the coil is energized, it generates a magnetic field to drive the internal valve core to move, thereby realizing the switching of the hydraulic oil flow path, and then controlling the front - drive system of the vehicle to connect or disconnect, so as to meet the different working requirements of the equipment.
- Compatible models
BACKHOE LOADERS 1400B 1550B 1600B 1700B 214 215 216 217 3C 3CX 3D JCB
- More other valve parts fit for JCB machine
| 25/220991 Valve Solenoid 3 Way-2 Position |
| JCB |
| 17/305211 Valve overflow |
| JCB |
| 15/916700 Valve Brake Charge single circuit |
| JCB |
| 20/902617 Valve pilot DFR1 |
| JCB |
| 20/208204 Valve |
| JCB |
| 20/208203 Valve inching |
| JCB |
| 333/Y1972 Valve Non-Return |
| JCB |
| 25/222316 Valve |
| JCB |
| 333/P2389 Valve chrck 10 bar |
| JCB |
| 25/221216 Valve check |
| JCB |
| 20/925383 Valve Priority Steer |
| JCB |
| 25/221359 Valve Solenoid (90 Deg Connectors) |
| JCB |

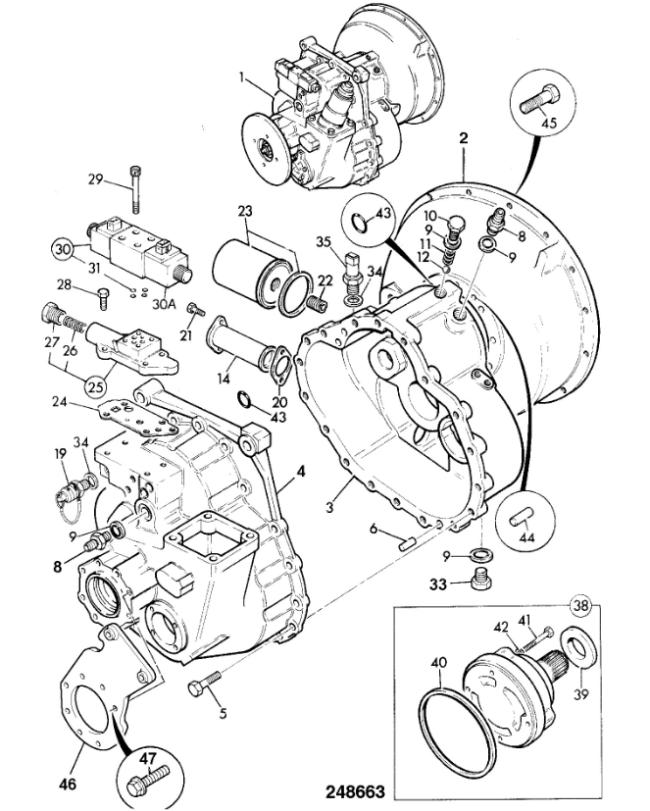

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 445/80190 | [1] | Gearbox assembly | |
| 2 | 445/76504 | [1] | Housing flywheel | |
| 3 | 459/30371 | [1] | Casing front | |
| 4 | 459/30377 | [1] | Casing rear | |
| 5 | 826/01417 | [18] | Setscrew flanged M10 x 30 | |
| 8 | 1606/0017 | [2] | Adapter 5/8" x 1/2" M/M | |
| 9 | 1406/0018 | [5] | Washer Bonded (1/2" BSP) | |
| 11 | 814/00222 | [1] | Spring | |
| 12 | 916/00008 | [2] | Bearing 14diameter Ball | |
| 13 | 816/80031 | [5] | Plug | |
| 14 | 32/902200 | [1] | Strainer Suction | |
| 19 | 45/905000 | [1] | Adapter Pressure Test 1/4BSP Male | |
| 20 | 813/50027 | [1] | Gasket | |
| 21 | 1321/0303Z | [2] | Screw M8 x 16 | |
| 22 | 816/15184 | [1] | Adapter 1/2"BSPx1"UNF | |
| 23 | 581/18063 | [1] | Element Transmission Filter 94mm Long | |
| 23 | 581/M7012 | [1] | Element Transmission Filter 94mm Long | |
| 24 | 813/10175 | [1] | Gasket Valve Block | |
| 25 | 445/07300 | [1] | Adapter Block Assembly | |
| 25B. | 816/60286 | [1] | Adapter | |
| 25C. | 1406/0008 | [1] | Seal Washer | |
| 26 | 814/00407 | [1] | Spring | |
| 27 | 816/80061 | [1] | Plug | |
| 28 | 1392/3207Z | [4] | Capscrew M6 x 25mm | |
| 29 | 1391/3108Z | [4] | Capscrew M5 X 30mm | |
| 30 | 25/220998 | [1] | Valve Solenoid Assembly | |
| 30A. | 477/00824 | [1] | Coil | |
| 31 | 35/100801 | [1] | Kit-seal solenoid valve | |
| 33 | 816/80041 | [1] | Plug 1/2"BSP 25.65mm A/F | |
| 34 | 1406/0011 | [2] | Washer Bonded (1/4") | |
| 35 | 701/80319 | [1] | Switch oil pressure,M12 green body,Deutsch | |
| 37 | 816/80052 | [1] | Plug Taper 1/4" BSP | |
| 38 | 20/925327 | [1] | Pump | |
| 39 | 20/915901 | [1] | Seal oil trans pump | |
| 40 | 813/50041 | [1] | Seal Rear | |
| 41 | 1315/3311Z | [1] | Bolt (M8 X 45) | |
| 42 | 823/00291 | [4] | Washer Copper M8 | |
| 43 | 828/10222 | [1] | O Ring 20 x 1.6mm | |
| 44 | 445/14001 | [2] | Dowel | |
| 45 | 1315/0409Z | [12] | Setscrew M10 x 35 | |
| 46 | 331/16159 | [1] | Bracket brake caliper mount Hayes caliper | |
| 47 | 826/01080 | [7] | Bolt |
