295-9433 2959433 Cylinder Block Swing Motor Fit For Excavator Spare Parts 374DL 374FL 390FL
- 295-9433 2959433 Cylinder Block Swing Motor Fit For Excavator Spare Parts 374DL 374FL 390FL
- Specifiion
| Name | Cylinder Block |
| Parts No | 295-9433 2959433 |
| Machine Model | 374D L 374F L 390F L |
| Category | Swing Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Design & engineering
| Precision Machining: Made from high-strength, heat-treated steel to tight tolerances for perfect piston fit and zero internal leakage. |
| Pressure & Wear Resistance: Built to withstand extreme hydraulic pressures (often 300–350 bar) and continuous high-load rotation. |
| Porting & Valving: Features precisely machined oil passages and valve plate interfaces to direct flow and enable smooth, bidirectional rotation. |
- Compatible models
- More other cylinder block parts fit for C A T machine
| 1850251 BARREL |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 966G, 966G II, 972G, 972G II, 980G |
| 1915675 BARREL AS |
| 365B II, 365C, 365C L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B |
| 1241530 BARREL AS |
| 330C, 330D L, 330D MH, 345B II, 345B II MH, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG, 349E L VG, 349F L, 374D L, 374F L |
| 2959549 BARREL |
| 345D, 345D L, 345D L VG, 349D, 349D L, 365C L, 374D L |
| 3421846 BARREL AS |
| 365C, 365C L, 365C L MH, 374D L |
| 3421849 BARREL AS |
| 365B, 365B II, 365C, 365C L, 365C L MH, 374D L |
| 3421858 BARREL AS-PUMP |
| 374D L |
| 1801197 BARREL AS |
| M325B |
| 1987405 BARREL |
| 365B, 365B II |
| 1709976 BARREL |
| 345B II, 345B II MH, 345B L, W345B II |
| 1559113 BARREL |
| 330D L, 330D LN, 330D MH, 345B, 345B II, 345B II MH, 345B L, W345B II |
| 7I8179 BARREL AS |
| 350 |
| 7I8180 BARREL AS |
| 350 |
| 0965911 BARREL PLATE ASSY. |
| E200B |
| 0964373 BARREL PLATE ASSY. |
| E200B |
| 4I9473 BARREL PLATE ASSY. RE. |
| E180, E200B, E240, E240C, EL240B |
| 4I9472 BARREL PLATE ASSY. FR |
| E180, E200B, E240, E240C, EL240B |
| 1028295 BARREL AS |
| 325 LN |
| 3421858 BARREL AS-PUMP |
| 374D L |

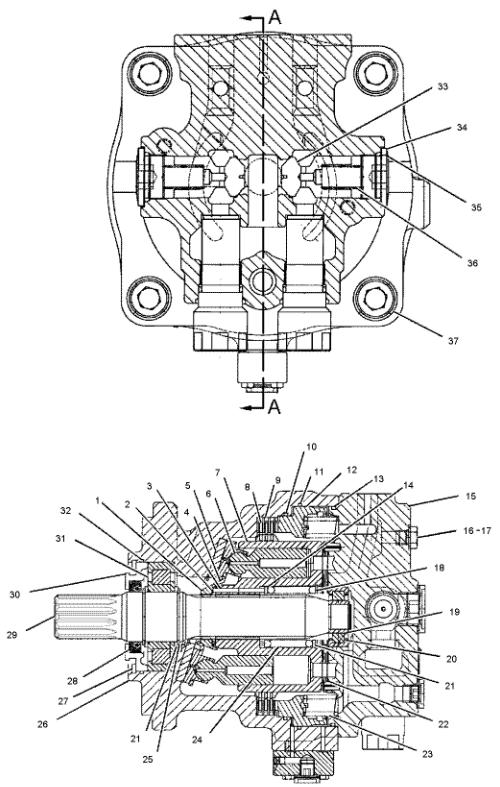

- Catalog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 158-8967 | [1] | BUSHING | |
| 2 | 158-8970 | [1] | SPACER (47X58X1.5-MM THK) | |
| 3 | 158-8969 | [12] | PIN | |
| 4 | 242-6922 | [1] | PLATE | |
| 5 | 158-8973 | [1] | PLATE | |
| 6 | 158-9009 | [1] | PISTON AS | |
| 7 | 295-9433 | [1] | BARREL | |
| 8 | 158-8981 | [3] | PLATE-FRICTION | |
| 9 | 158-8982 | [4] | PLATE-SEPARATOR | |
| 10 | 7Y-4277 J | [1] | SEAL-O-RING | |
| 11 | 8F-5900 J | [1] | SEAL-O-RING | |
| 12 | 185-0325 | [1] | PISTON-BRAKE | |
| 13 | 158-8978 J | [1] | SEAL-O-RING | |
| 14 | 158-8971 | [1] | SPACER (47X61X3-MM THK) | |
| 15 | 177-2550 | [1] | HEAD GP-MOTOR | |
| 16 | 110-5525 | [2] | PLUG | |
| 17 | 3J-1907 J | [2] | SEAL-O-RING | |
| 18 | 8T-9598 | [1] | RING-RETAINING | |
| 19 | 4I-5850 | [1] | RING | |
| 20 | 7Y-4269 | [1] | BEARING AS-ROLLER | |
| 21 | 158-8965 | [3] | SPACER (50X61X3-MM THK) | |
| 22 | 234-4543 | [1] | PLATE | |
| 23 | 123-2139 | [20] | SPRING | |
| 24 | 158-8968 | [1] | SPRING | |
| 25 | 8T-4241 | [2] | RING-RETAINING | |
| 26 | 234-4542 | [1] | BODY | |
| 27 | 095-0946 | [1] | RING-RETAINING | |
| 28 | 158-8979 J | [1] | SEAL-OIL | |
| 29 | 158-8964 | [1] | SHAFT | |
| 30 | 158-8976 | [1] | RETAINER | |
| 31 | 295-9432 | [1] | BEARING AS | |
| 32 | 095-1716 J | [1] | SEAL-O-RING | |
| 33 | 170-9985 | [2] | VALVE-PISTON | |
| 34 | 170-9996 | [2] | PLUG | |
| 35 | 095-1600 J | [2] | SEAL-O-RING | |
| 36 | 170-9986 | [2] | SPRING | |
| 37 | 161-7611 M | [4] | BOLT-SOCKET HEAD (M22X2.5X45-MM) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 177-2547 J | KIT-SEAL (SWING MOTOR) | |||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
