158-8973 1588973 Plate Excavator Swing Motor Parts For C9.3 C15 C18 374FL 385BL 390FL
- 158-8973 1588973 Plate Excavator Swing Motor Parts For C9.3 C15 C18 374FL 385BL 390FL
- Specifiion
| Name | Plate |
| Parts No | 158-8973 1588973 |
| Machine Model | 374FL 385BL 390FL |
| egory | Swing Motor |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
1.Thrust plates are crucial components in construction machinery, mainly used to bear axial forces and prevent components from moving axially. They are usually installed in parts such as gearboxes, final drives, or hydraulic pumps.
2.In a gear pump, the thrust plate provides support and axial positioning for the gear pump assembly, distributing the axial or thrust loads generated by the gears. It can enhance the reliability and durability of the gear pump by reducing wear and tear caused by axial forces, helping to transfer external forces to the housing to ensure the stability of the gears.
- Compatible models
EXCAVATOR 365B 365B II 365B L 365C 365C L 365C L MH 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C 5090B
MOBILE HYD POWER UNIT 365C L 385C 385C L C.ater.pillar.
- More other plate parts fit for C A T machine
| 1559134 PLATE |
| 120H, 12H, 135H, 140H, 143H, 160H, 163H, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 385B... |
| 1559119 PLATE |
| 330D L, 330D LN, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B, 797, W345B II, W345C MH |
| 1583960 PLATE |
| 330C, 345C, 345C L, 345D L, 345D L VG, 365B, 365B II, 365B L, 365C, 365C L, 374D L, 374F L, 375, 375 L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F L, 5080 |
| 1588981 PLATE-FRICTION |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B |
| 1588982 PLATE-SEPARATOR |
| 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B |
| 4I5005 PLATE |
| 324D, 325C, 330B L, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L, 340D L, 340D2 L, 345... |
| 1348952 PLATE |
| 324D L, 325D L, 328D LCR, 329D L, 330D, 330D L, 330D LN, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E H, 336E L, 336E LN, 340D L, 340D2 L, 345B II, 345B L, 345C, 345C L, 345D, 345D L, 345D L VG, ... |
| 3415272 PLATE |
| 324D, 329D LN, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E, 336E L, 336E LN, 336F L, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L,... |
| 1955479 PLATE |
| 345C, 345C L, 345C MH, 345D L, 365B, 365B II, 365B L, 365C, 365C L, 385B, 385C, 385C L, PIN GRAB, W345C MH |
| 2426922 PLATE |
| 365B, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L |

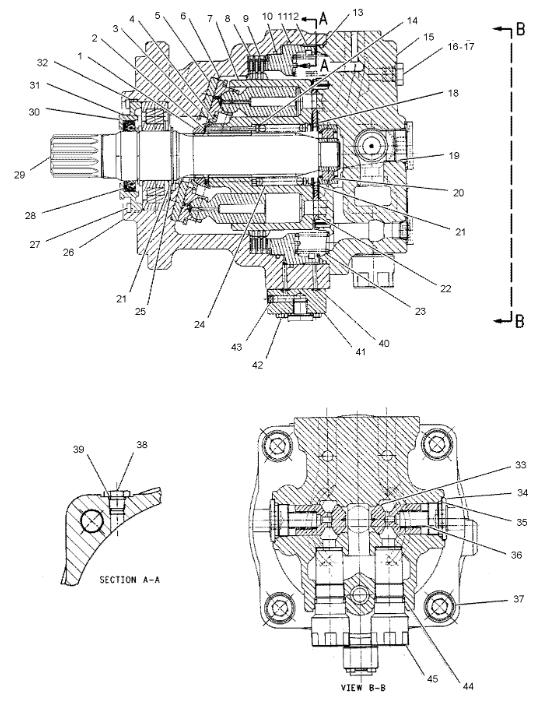

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 158-8967 | [1] | BUSHING | |
| 2 | 158-8970 | [1] | SPACER (47X58X1.5-MM THK) | |
| 3 | 158-8969 | [12] | PIN | |
| 4 | 158-8972 | [1] | PLATE | |
| 5 | 158-8973 | [1] | PLATE | |
| 6 | 158-9009 | [1] | PISTON AS | |
| 7 | 158-8966 | [1] | BARREL | |
| 8 | 158-8981 | [3] | PLATE-FRICTION | |
| 9 | 158-8982 | [4] | PLATE-SEPARATOR | |
| 10 | 7Y-4277 J | [1] | SEAL-O-RING | |
| 11 | 8F-5900 J | [1] | SEAL-O-RING | |
| 12 | 185-0325 | [1] | PISTON-BRAKE | |
| 13 | 158-8978 J | [1] | SEAL-O-RING | |
| 14 | 158-8971 | [1] | SPACER (47X61X3-MM THK) | |
| 15 | 177-2550 | [1] | HEAD GP-MOTOR | |
| 16 | 110-5525 | [2] | PLUG | |
| 17 | 3J-1907 J | [2] | SEAL-O-RING | |
| 18 | 8T-9598 | [1] | RING-RETAINING | |
| 19 | 4I-5850 | [1] | RING | |
| 20 | 7Y-4269 | [1] | BEARING AS-ROLLER | |
| 21 | 158-8965 | [3] | SPACER (50X61X3-MM THK) | |
| 22 | [1] | PLATE-VALVE | ||
| 23 | 7Y-4291 | [24] | SPRING-BRAKE | |
| 24 | 158-8968 | [1] | SPRING | |
| 25 | 8T-4241 | [2] | RING-RETAINING | |
| 26 | 158-8975 | [1] | BODY | |
| 27 | 095-0946 | [1] | RING-RETAINING | |
| 28 | 158-8979 J | [1] | SEAL-OIL | |
| 29 | 158-8964 | [1] | SHAFT | |
| 30 | 158-8976 | [1] | RETAINER | |
| 31 | [1] | BEARING AS | ||
| 32 | 095-1716 | [1] | SEAL-O-RING | |
| 33 | 170-9985 | [2] | VALVE-PISTON | |
| 34 | 170-9996 | [2] | PLUG | |
| 35 | 095-1600 | [2] | SEAL-O-RING | |
| 36 | 170-9986 | [2] | SPRING | |
| 37 | 161-7611 M | [4] | BOLT-SOCKET HEAD (M22X2.5X45-MM) | |
| 38 | 7Y-4274 | [1] | PLUG | |
| 39 | 095-1579 | [1] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 177-2547 J | [1] | KIT-SEAL | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
