VOE11110731 11110731 Fan Excavator Spare Parts Fit For D7D D12D EC330B EC330C EC360B
- VOE11110731 11110731 Fan Excavator Spare Parts Fit For D7D D12D EC330B EC330C EC360B
- Specifiion
| Name | Fan |
| Parts No | VOE11110731 11110731 |
| Machine Model | EC330B EC330C EC360B EC360C EC380D EC460B EC460C EC480D |
| egory | Cooling Fan Mounting, Hydraulic System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
This fan is usually installed near the engine and radiator. When the engine coolant temperature rises to a preset upper - limit value, typically around 90°C or 95°C, the thermostat activates, powering on the fan. As the fan blades rotate, they generate a high - speed air current that carries away the heat from the coolant in the radiator, thus cooling the engine.
- Compatible models
EXCAVATOR EC330B EC330C EC360B EC360C EC360CHR EC380D EC460B EC460C EC460CHR EC480D PL4608 PL4611 Vo.Lvo.
- More other fan parts fit for V O L V O machine
| VOE14624857 Fan shroud |
| EC340D, EC380D, EC380DHR, EC480D, EC480DHR |
| VOE14614051 Fan Shroud |
| EC480D, EC480DHR, PL4809D |
| VOE14619773 Fan shroud |
| EC340D, EC380D, EC380DHR |
| VOE14533496 Fan motor |
| EC330B, EC330C, EC340D, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, ECR145C, ECR145D, ECR145E, PL4608, PL4611, PL4809D |
| VOE14533831 Fan shroud |
| EC330B, EC330C, EC360B, EC360C, EC360CHR, EC460B, EC460C, EC460CHR, PL4608, PL4611 |
| VOE14579928 Fan shroud |
| EC360C, EC360CHR, EC460C, EC460CHR |
| VOE11110732 Fan |
| EC330B, EC330C, EC360B, EC360C, EC360CHR |
| VOE14624895 Fan |
| EC480D, PL4809D |
| VOE14624894 Fan shroud |
| EC380D, EC480D, PL4809D |
| VOE14621923 Fan shroud |
| EC380D |
| VOE14632741 Fan shroud |
| EC380D |
| VOE21146752 Fan hub |
| A35F, A35F FS, EC340D, EC380DHR, EC480D, EC480DHR, L150G, L180G, L180G HL, L220G, L250G |
| VOE14376724 Fan motor |
| EW140B, EW160B, EW180B, EW200B |
| VOE11988590 Fan |
| EC160, EW140, EW140B, EW160, EW160B, EW180B, EW200B, EW210C, EW230C |
| VOE14569758 Fan motor |
| EC330C, EC340D, EC360C, EC360CHR, EC380D, EC380DHR, EC460C, EC460CHR, EC480D, EC480DHR, ECR145C, ECR145E |
| VOE14519708 Fan |
| EC160B, EC180B, EW145B |
| VOE14519826 Fan |
| EC160B, EC180B |
| VOE20459039 Fan |
| EC140B, EC160B, EC180B, EC210B, EC240B, EC290B, EW140B, EW145B, EW160B, EW180B, EW200B, L40, L40B, L45, L45B |
| VOE11006157 Fan housing |
| L110E, L120D, L120E, L150D, L150E, L180D, L180E, L220D, L220E, L330D, L330E, L50D, L50E, L60E, L70D, L70E, L90D, L90E |
| VOE14545463 Fan Shroud |
| EC460B, EC460C, EC460CHR, PL4608, PL4611 |
| RM43856319 Fan guard |
| SD100/SD105, SD115D/SD115F, SD116DX/SD116F, SD122, SD130/D/DX/F, SD160/SD190/SD200 |
| VOE3827491 Fan |
| EW230C, G900 MODELS, G900B, G900C, L110E, L110F, L110G, L110H, L120E, L120F, L120G, L120GZ, L120H, L60E, L60F, L60G, L60GZ, L60H, L70E, L70F, L70G, L70H, L90E, L90F, L90G, L90GZ, L90H, SD115, SD135 |
| VOE11175764 Fan hub |
| L110E, L110F, L110G, L110H, L120E, L120F, L120G, L120GZ, L120H, L60E, L60F, L60G, L60GZ, L60H, L70E, L70F, L70G, L70H, L90E, L90F, L90G, L90GZ, L90H |

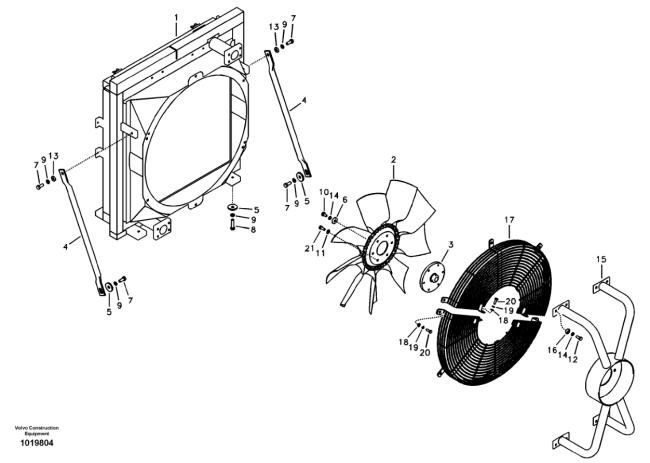

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE14523879 | [1] | Oil cooler | |
| 2 | VOE11110731 | [1] | Fan | |
| 3 | VOE14531657 | [1] | Flange | |
| 4 | VOE14527372 | [2] | Stay | |
| 5 | VOE14532476 | [6] | Washer | |
| 6 | VOE14522862 | [1] | Washer | |
| 7 | VOE997446 | [4] | Hexagon screw | |
| 8 | VOE980755 | [4] | Hexagon screw | SER NO 11515-11576 SER NO 80001-80076 |
| VOE978933 | [4] | Hexagon screw | SER NO 11577- SER NO 80077- | |
| 9 | VOE955923 | [8] | Spring washer | |
| 10 | VOE993038 | [1] | Hexagon screw | |
| 11 | VOE992040 | [6] | Plain washer | |
| 12 | VOE983251 | [8] | Hexagon screw | |
| 13 | VOE992042 | [2] | Plain washer | |
| 14 | VOE955922 | [9] | Spring washer | |
| 15 | VOE14533841 | [1] | Bracket | |
| 16 | VOE14536063 | [8] | Washer | |
| 17 | VOE14541905 | [2] | Guard | |
| 18 | VOE993835 | [10] | Plain washer | |
| 19 | VOE955921 | [10] | Spring washer | |
| 20 | VOE983243 | [10] | Hexagon screw | |
| 21 | VOE983251 | [6] | Hexagon screw | SER NO 11515-11636 SER NO 80001-80177 |
| VOE997434 | [0006] | Hexagon screw | SER NO 11637- SER NO 80178- |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
