K9007391 Sun Gear DOOSAN Excavator Spare Parts Fit For DX225LC DX235LCR DX255LC-3
- K9007391 Sun Gear DOOSAN Excavator Spare Parts Fit For DX225LC DX235LCR DX255LC-3
- Specifiion
| Name | Sun Gear |
| Parts No | K9007391 |
| Machine Model | DX210 DX220AF DX225LCB DX225LC DX235LCR DX255LC-3 |
| egory | Boom Puping, Cabin Parts, Travel Reduction Gear |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
In the final drive system, the sun gear works in conjunction with planetary gears and ring gears. It transmits power from the transmission to the drive wheels, playing a key role in speed reduction and torque increase. By meshing with planetary gears, it realizes the power distribution and speed - torque conversion in the planetary gear mechanism, ensuring the normal operation of the excavator's traveling system.
- Compatible models
EXCAVATORS DX210 DX220AF DX225LCB DX225LC DX225LC-3 DX235LCR DX255LC-3 Doosan
- More other gear parts fit for DOOSAN machine
| K9007391 GEAR;SUN |
| Doosan |
| 4472 319 166 GEAR;RING |
| Doosan |
| FRP-0965-09 GEAR;S1 |
| Doosan |
| FZD-8272-1-06 GEAR;B1 |
| Doosan |
| FRP-0961-08 GEAR;S1 |
| Doosan |
| FZD-8100-1-07 GEAR;B2 |
| Doosan |
| 1100039132 GEAR |
| Doosan |
| 7514-192 GEAR(2) |
| Doosan |
| 7514-190 GEAR;SUN |
| Doosan |
| 65.02115-0007 GEAR;CRANK SHAFT |
| Doosan |
| 65.38502-0004 GEAR;IDLE P.T.O |
| Doosan |
| K9007390 GEAR;DRIVE |
| Doosan |

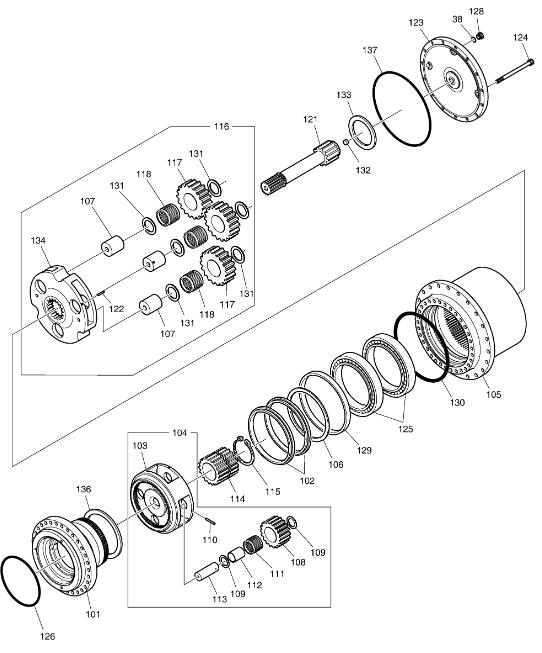

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| -. | K9007404 | [1] | REDUCTION GEAR | 170402-00028 |
| -. | 170402-00028 | [1] | ||
| 101 | K9007383 | [1] | SPINDLE | K9007383A |
| 101 | K9007383A | [1] | ||
| 102 | 1.180-00512 | [1] | SEAL;FLOATING | |
| 103 | *NA00325 | [1] | ||
| 104 | K9007412 | [1] | CARRIER NO 2 ASSY | |
| 105 | K9007384 | [1] | HUB | |
| 105 | 900122-00079 | [1] | ||
| 106 | 1.540-00003 | [1] | PIECE;DISTANCE | |
| 107 | K9007388 | [3] | BEARING;SHAFT | |
| 108 | K9007393 | [4] | GEAR;PLANETARY | |
| 109 | K9007394 | [8] | WASHER;THRUST | |
| 110 | S5740960 | [4] | PIN;SPRING | |
| 111 | K9007402 | [4] | BEARING;NEEDLE | |
| 112 | K9007396 | [4] | BUSH;FLOATING | |
| 113 | K9007392 | [4] | SHAFT | |
| 114 | K9007391 | [1] | GEAR;SUN | |
| 115 | S6500750 | [1] | RING;RETAINING | |
| 116 | K9007411 | [1] | CARRIER NO 1 ASSY | |
| 117 | K9007387 | [3] | GEAR;PLANETARY | |
| 118 | 1.216-00017 | [3] | CAGE,NEEDLE | |
| 121 | K9007390 | [1] | GEAR;DRIVE | |
| 122 | S5740770 | [3] | PIN;SPRING | |
| 123 | K9007385 | [1] | COVER | |
| 123 | 110508-09675 | [1] | ||
| 124 | S2212266 | [16] | BOLT | |
| 125 | K9007403 | [2] | BEARING;ANGULAR BALL | |
| 126 | S8012300 | [1] | O-RING | |
| 128 | 2181-1890D4 | [3] | PLUG | |
| 129 | K9007386 | [1] | RING;SEAL | K9007386A |
| 129 | K9007386A | [1] | ||
| 130 | 1.180-00144 | [1] | O-RING | |
| 131 | K9007389 | [6] | WASHER;THRUST | |
| 132 | K9004304 | [1] | WASHER;THRUST | |
| 133 | 1.412-00157 | [1] | PLATE;THRUST | |
| 134 | *NA00324 | [1] | ||
| 136 | K9007395 | [2] | PLATE;SHIM | K9007395A |
| 136 | K9007395A | [2] | ||
| 137 | 401002-00739 | [1] | ||
| 38 | S8000181 | [3] | O-RING |
