420-00467A 42000467A Pedal Valve DOOSAN Excavator Spare Parts Fit For DX340LC DX350LC DX380LC
- 420-00467A 42000467A Pedal Valve DOOSAN Excavator Spare Parts Fit For DX340LC DX350LC DX380LC
- Specifiion
| Name | Pedal Valve |
| Parts No | 420-00467A 42000467A |
| Machine Model | DX300LL DX300LC DX340LCA DX340LC DX350LC DX380LC |
| egory | Heater Cover, Oil Filter & Oil Cooler, Pilot Piping |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
This pedal valve is used to control the excavator's walking function. By stepping on the pedal, the operator can precisely control the walking speed and direction of the excavator, enabling it to move forward, backward, turn, etc. It converts the mechanical force of the operator's foot into a hydraulic control signal, and then transmits it to the relevant hydraulic components of the walking motor, so as to realize the accurate control of the excavator's walking.
- Compatible models
EXCAVATORS DX140LC DX160LC DX180LC DX210 DX225LC DX300LL DX300LC DX340LCA DX340LC DX350LC DX380LC Doosan
- More other valve parts fit for DOOSAN machine
| 426-00278 VALVE;DRAIN |
| Doosan |
| 420-00467 VALVE;PEDAL |
| Doosan |
| K9001804 VALVE;MAIN RELIEF |
| Doosan |
| K1012576 VALVE;SOLENOID |
| Doosan |
| K1000555H VALVE;REMOCON(R.H) |
| Doosan |
| K1000555G VALVE;REMOCON(R.H) |
| Doosan |
| 420-00430 VALVE;SOLENOID |
| Doosan |
| K1007197 VALVE;BYPASS |
| Doosan |
| K1002341 VALVE;BYPASS |
| Doosan |
| 420-00428 VALVE;PILOT SUPPLY |
| Doosan |
| 422-00055 VALVE;GREASE |
| Doosan |
| K9002065 VALVE;CHECK |
| Doosan |

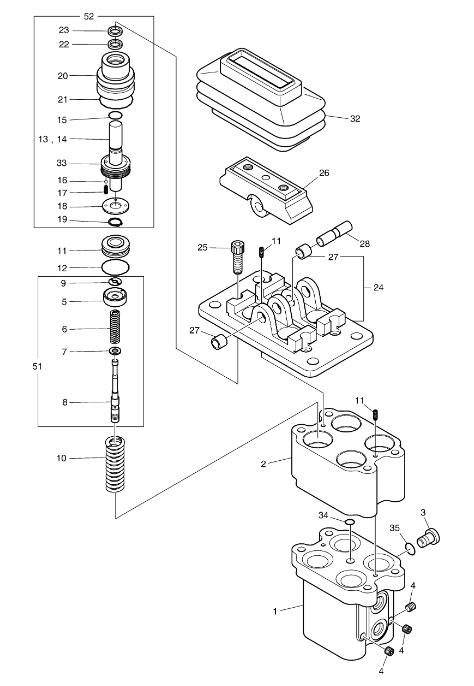

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| -. | 420-00467A | [1] | VALVE,PEDAL | |
| 1 | *NA00079 | [1] | BODY | |
| 10 | K9006860 | [4] | SPRING | |
| 11 | S5740600 | [4] | PIN;SPRING | |
| 12 | S8000261 | [4] | O-RING | |
| 13 | *NA01013 | [4] | ROD;PUSH | |
| 14 | S5740480 | [4] | PIN;SPRING | |
| 15 | *NA01076 | [4] | SEAL | |
| 16 | 148-00012 | [4] | BALL;STEEL | |
| 17 | 129-00043 | [4] | SPRING | |
| 18 | 159-00017 | [4] | PLATE | |
| 19 | 115-00042 | [4] | RING;SNAP | |
| 2 | *NA00079 | [1] | BODY | |
| 20 | *NA00843 | [4] | PLUG | |
| 21 | S8010251 | [4] | O-RING | |
| 22 | 180-00198 | [4] | SEAL;ROD | |
| 23 | 180-00199 | [4] | SEAL;DUST | |
| 24 | K9006865 | [1] | KIT;COVER | |
| 25 | S2210071 | [4] | BOLT | |
| 26 | K9006866 | [2] | KIT;CAM | |
| 27 | 2110-1184D7 | [4] | BUSH | |
| 28 | K9006861 | [2] | SHAFT;CAM | |
| 3 | 420-00112 | [1] | PLUG | |
| 32 | K9006862 | [2] | BELLOWS | |
| 33 | 1.409-00225 | [4] | PISTON | |
| 34 | S8000081 | [1] | O-RING | |
| 35 | S8000111 | [1] | O-RING | |
| 4 | 2181-1116D1 | [3] | PLUG | |
| 5 | 429-00004 | [4] | SEAT;SPRING | |
| 51 | K9006863 | [4] | KIT;SPOOL | |
| 52 | K9006864 | [4] | KIT;PLUG | |
| 6 | K9001141 | [4] | SPRING | |
| 7 | 429-00005 | [4] | SEAT;SPRING | |
| 8 | 424-00042 | [4] | SPOOL | |
| 9 | 161-00080 | [4] | STOPPER |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
