723-40-56800 7234056800 Relief Valve KOMATSU Excavator Spare Parts Fit For PC300-8 PC350-8
- 723-40-56800 7234056800 Relief Valve KOMATSU Excavator Spare Parts Fit For PC300-8 PC350-8
- Specifiion
| Name | Relief Valve |
| Parts No | 723-40-56800 7234056800 |
| Machine Model | PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL PC360 PC390 PC390LL PC400 PC450 PC490 PC550 |
| egory | Main Control Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
As a kind of pressure - control valve, its main function is to control the pressure in the hydraulic system. When the system pressure exceeds the set value of the relief valve, the valve will open, and part of the hydraulic oil will flow back to the oil tank, thus reducing the system pressure and preventing the hydraulic system from being damaged due to excessive pressure. It can also play a role in stabilizing the system pressure, ensuring the stable operation of each hydraulic component.
- Compatible models
EXCAVATORS PC300 PC300HD PC300LL PC340 PC350 PC350HD PC350LL PC360 PC390 PC390LL PC400 PC450 PC490 PC550
MOBILE CRUSHERS AND RECYCLERS BR580JG Komatsu
- More other valve parts fit for KOMATSU machine
| 714-12-15012 VALVE ASS'Y,UPPER |
| WA350 |
| 714-12-15011 VALVE ASS'Y,UPPER |
| WA350, WA380 |
| 709-75-92600 VALVE ASS'Y |
| PC200, PC210, PC220, PC240 |
| 723-40-71800 VALVE ASS'Y |
| AIR, PC200, PC228, PC228US, PC270, PC300, PC350, PC400, PC450, PC550, PRESSURE, RAIN |
| 702-16-09410 VALVE ASS'Y |
| HB205, HB215, PC130, PC160, PC180, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC300, PC400, PC450, PRESSURE, RAIN |
| 1240 194 H1 VALVE, PRESSURE RELIEF |
| KOMATSU |
| 723-41-08900 VALVE SUB ASS'Y |
| PC200, PC200LL, PC210MH, PC220, PC220LL, PC270 |
| 845910001 VALVE |
| WB140, WB140PS, WB150, WB150AWS, WB150PS, WB150WSC, WB70A, WB91R, WB93R, WB95R, WB97R, WB97S, WB98A |
| 714-17-25401 VALVE ASS'Y |
| WA430 |
| 714-17-25400 VALVE ASS'Y |
| WA430 |
| 709-70-75300 VALVE ASS'Y |
| BR550JG, PC200, PC200SC, PC200Z, PC210, PC220, PC228, PC228US, PC230, PC250, PC270, PC300, PC340 |
| 723-15-12101 VALVE ASS'Y,L.H. |
| GD655, GD675 |

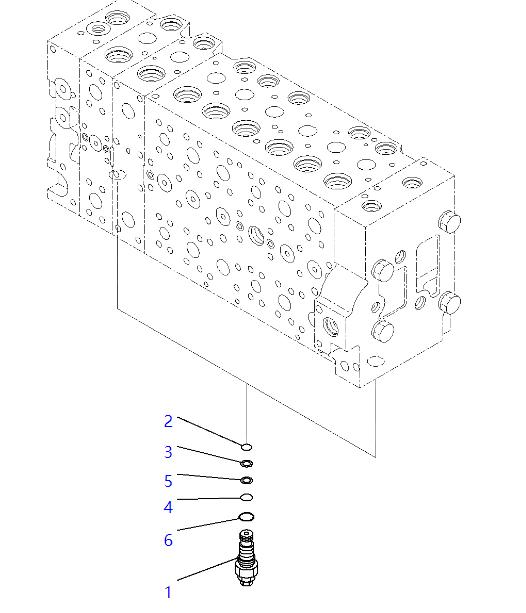

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 723-48-26501 | [1] | Valve Assembly, Control Komatsu | 257 kg. | |
| ["SN: 61510-UP"] analogs:["7234826500"] |$0. | ||||
| 723-48-26500 | [1] | Valve Assembly, Control Komatsu | 257 kg. | |
| ["SN: 60001-61509", "SCC: A2"] analogs:["7234826501"] |$1. | ||||
| 1. | 723-40-56800 | [2] | Valve Assembly, Unloader Komatsu | 0.6 kg. |
| ["SN: 60001-UP"] | ||||
| 2 | 07000-12014 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 60001-UP"] analogs:["0700002014"] | ||||
| 3 | 723-40-56350 | [1] | Ring, Back-up Komatsu | 0.001 kg. |
| ["SN: 60001-UP"] | ||||
| 4 | 07000-12016 | [1] | O-ring Komatsu | 0.001 kg. |
| ["SN: 60001-UP"] analogs:["YM24311000160", "0700002016"] | ||||
| 5 | 723-60-22230 | [1] | Ring, Back-up Komatsu | 0.001 kg. |
| ["SN: 60001-UP"] | ||||
| 6 | 07002-12434 | [1] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 60001-UP"] analogs:["0700202434", "0700213434"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
