238-0120 2380120 Speed Sensor Excavator Electric Parts Fitting For 311D LRR 312D
-
238-0120 2380120 Speed Sensor Excavator Electric Parts Fitting For 311D LRR 312D
-
Specifiion
| Appliion | C A T excavator electric parts |
| Name | Speed Sensor |
| Parts No | 238-0120 2380120 |
| Model |
311D LRR 312D 312D L 313D 314D CR 314D LCR 315D L 318D L 319D 319D L 319D LN 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 321D LCR 323D L 323D LN 323D SA |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Function
1.Measuring Speed: It can accurately measure the rotational speed of components such as the engine crankshaft or transmission output shaft. By detecting the change of the magnetic field, the sensor converts the rotational speed information of the shaft into an electrical signal, and this signal is proportional to the rotational speed.
2.Providing Signals for the Control System: The speed signal is transmitted to the engine control unit (ECU) or other control systems. The control system uses this signal to monitor and regulate various functions of the equipment.
- Applicable models
BACKHOE LOADER 416F 420E 420F 428F 430E 430F 432F 434F 444F 450E 450F
COMPACT WHEEL LOADER 914G
EXCAVATOR 311D LRR 312D 312D L 312E 312E L 313D 314D CR 314D LCR 314E CR 314E LCR 315D L 316E L 318D L 318E L 319D 319D L 319D LN 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320E 320E L
- More sensor parts supplied to C A T machine
| 1352336 SENSOR-TEMPERATURE |
| 311B, 312B, 315B, 315C, 317B LN, 318B, 320B, 320B L, 321B |
| 2382227 SENSOR AS-FUEL LEVEL |
| 305.5, 306, 307B, 307C, 311C, 320C, 320D LRR, 320D RR, 325C, 345B II |
| 3244131 SENSOR GP-SPEED |
| 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN... |
| 1967975 SENSOR GP-TEMPERATURE |
| 311C, 312C, 312C L, 314C, 315C, 318C, 319C, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 1636700 SENSOR GP-FUEL LEVEL |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 312C, 312C L, 312D, 315C, 315D L, 318C, 319C, 319D, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D L, 320D LN, 321C, 321D LCR, 322C, 322C F... |
| 1967973 SENSOR GP-SPEED |
| 315C, 320C |
| 2905825 SENSOR GP-PRESSURE |
| 924G, 924GZ, 924H, 924HZ, 928H, 928HZ, 930G, AP-600D, AP-655D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, CW-34, IT28G, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318... |
| 2380118 SENSOR GP-PRESSURE |
| 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA |
| 3669312 SENSOR AS-PRESSURE |
| 311D LRR, 311F LRR, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D ... |
| 4343436 SENSOR AS-PRESSURE |
| 311D LRR, 311F LRR, 312D, 312D L, 312D2, 314D CR, 314D LCR, 315D L, 318D2 L, 319D L, 319D LN, 320D, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 321D LCR, 323D L, 323D LN, 32... |

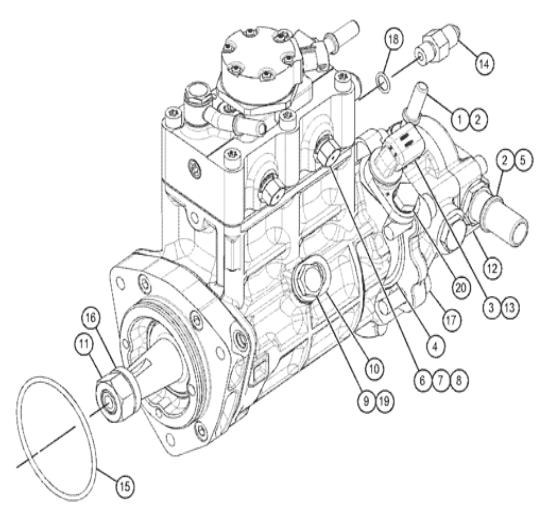

- alog part list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 228-0172 | [1] | FITTING-FUEL | |
| 2 | 228-7100 | [3] | SEAL-O-RING | |
| 3 | 238-0120 | [1] | SENSOR GP-SPEED (SECONDARY, TIMING) | |
| 4 | 247-6019 | [1] | SEAL-O-RING | |
| 5 | 248-1066 | [1] | FITTING-FUEL | |
| 6 | 257-2381 | [2] | PIN | |
| 7 | 257-2382 | [2] | PLUG | |
| 8 | 258-8149 | [2] | SPRING | |
| 9 | 294-3031 | [1] | BOLT-SPECIAL | |
| 10 | 294-3032 | [1] | WASHER-SPECIAL | |
| 11 | 295-4801 M | [1] | NUT (M14X1.5-THD) | |
| 12 | 426-4806 | [1] | PUMP GP-FUEL TRANSFER | |
| 13 | 117-1385 | [1] | SEAL-O-RING | |
| 14 | 287-7272 | [1] | CONNECTOR | |
| 3E-4296 | [1] | SEAL-O-RING | ||
| 15 | 334-2932 | [1] | SEAL-O-RING | |
| 16 | 3B-4509 | [1] | LOCKWASHER | |
| 17 | 5A-3604 M | [5] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 18 | 8C-3076 | [1] | SEAL-O-RING | |
| 19 | 8L-2779 | [1] | SEAL-O-RING | |
| 20 | 8T-4200 M | [1] | BOLT (M8X1.25X16-MM) | |
| M | METRIC PART | |||
- Other hot selling parts
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
