4034175 Turbocharger Actuator HYUNDAI Excavator Spare Parts Fit For HW140 HW210 HX220L HX220NL
- 4034175 Turbocharger Actuator HYUNDAI Excavator Spare Parts Fit For HW140 HW210 HX220L HX220NL
- Specifiion
| Name | Turbocharger Actuator |
| Parts No | 4034175 |
| Machine Model | HW140 HW210 HX220L HX220NL HX260L HX300L |
| egory | Turbocharger |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Its main function is to control the opening and closing of the waste - gate in the turbocharger. By adjusting the opening degree of the waste - gate, it controls the amount of exhaust gas flowing through the turbine, thereby regulating the rotation speed of the turbocharger and then achieving precise control of the boost pressure. This can prevent the boost pressure from being too high and damaging the engine, and at the same time, enable the turbocharger to maintain continuous and effective operation within a wide range of engine speeds, improving the power performance and fuel economy of the engine.
- Compatible models
9-SERIES FORK LIFT-DIESEL 110D-9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL HX260L HX300L
F-SERIES WHEEL EXCAVATOR HW140 HW210
F-SERIES WHEEL LOADER HL740-F HL740TM-F HL757-F HL757TM-F HL760-F Hyundai
- More other turbo actuator parts fit for HYUNDAI machine
| 4955365 KIT-PISTON |
| 110D-7A, HL730-9A, HL730TM-9A, HL740-9A, HL740-F, HL740TM-9A, HL740TM-F, HL757-9A, HL757-F, HL757TM-9A, HL757TM-F, HL760-9A, HL760-9AW, HL760-F, HW140, HW210, HX220L, HX260L, HX300L, R140W9A, R160W9A,... |
| 4309386 KIT-PISTON |
| 110D-9 |
| 4309447 KIT-PISTON |
| 110D-9 |
| 4352153 KIT-TURBOCHARGER |
| 110D-9 |
| 4034136 KIT-MOUNTING |
| 110D-9 |
| YUAY-00009 KIT-GUIDE |
| HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HL770-F, HL780-F |
| 4352163NX KIT-TURBOCHARGER |
| HW140 |
| 4034185 KIT-TURBO SENSOR |
| HW140, HW210, HX220L, HX220NL, HX260L, HX300L |
| 4352162NX KIT-TURBOCHARGER |
| HW210, HX220L, HX220NL, HX260L |
| 4034185NX KIT-TURBO SENSOR |
| HW210, HX220L, HX260L |
| 91K6-25100 KIT-LIFTING CHART |
| HX220NL |
| 4352162 KIT-TURBOCHARGER |
| HX220NL, HX300L |
| 4352153 KIT-TURBOCHARGER |
| 110D-9 |
| 4309447 KIT-PISTON |
| 110D-9 |
| 4309386 KIT-PISTON |
| 110D-9 |
| 91N1-82300 KIT-LIFTING CHART |
| RD80-7 |
| 91N1-82200 KIT-LIFTING CHART |
| RD80-7 |
| 91N3-18400 KIT-LIFTING CHART |
| RD110-7 |
| 91N3-17400 KIT-LIFTING CHART |
| RD110-7 |
| 93Q7-64100 KIT-LIFTING CHART |
| RB260LC9S |
| 93Q7-63100 KIT-LIFTING CHART |
| RB260LC9S |
| 93Q7-62100 KIT-LIFTING CHART |
| RB260LC9S |
| 91Q1-17500 KIT-LIFTING CHART |
| R80CR-9 |
| 91Q1-17400 KIT-LIFTING CHART |
| R80CR-9 |
| 4034136 KIT-MOUNTING |
| 110D-9 |
| XKCA-00120 KIT-SEAL |
| 20DT |
| XKCA-00121 KIT-SEAL |
| 20DT |
| 4309117 KIT-MAIN BEARING |
| 35D-9, 50D-9, 80D-9 |
| 4376189 KIT-PISTON RING |
| 35D-9 |
| 5321627 KIT-TURBOCHARGER |
| 35D-9 |
| 2881748 KIT-ENGINE PISTON |
| 50D-9, 80D-9 |
| 5290099 KIT-ENGINE PISTON |
| 50D-9, 80D-9 |
| 5290100 KIT-ENGINE PISTON |
| 50D-9, 80D-9 |
| YUAY-00009 KIT-GUIDE |
| HL740-F, HL740TM-F, HL757-F, HL757TM-F, HL760-F, HL770-F, HL780-F |
| 4352163NX KIT-TURBOCHARGER |
| HW140 |
| 4034185 KIT-TURBO SENSOR |
| HW140, HW210, HX220L, HX220NL, HX260L, HX300L |

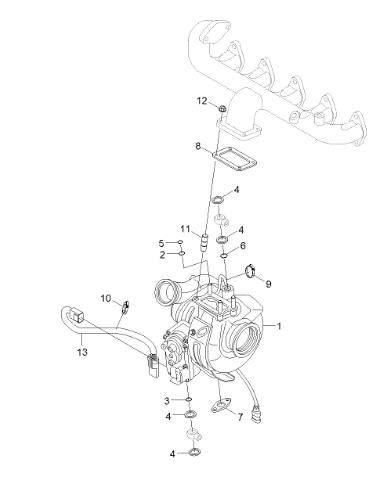

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 11WD-00100 | [1] | ENGINE ASSY | PP90325-01 |
| *-1. | 4352166 | [1] | TURBOCHARGER KIT | |
| N1. | 3789629 | [1] | TURBOCHARGER | |
| 2 | 3678603 | [1] | SEAL/O-RING | |
| 3 | 3678912 | [1] | SEAL/O-RING | |
| 4 | 3684284 | [4] | WASHER-SEALING | |
| 5 | 3922794 | [1] | SEAL/O-RING | |
| 6 | 4994273 | [1] | SEAL-RECTANGULAR RING | |
| 7 | 5264568 | [1] | GASKET-OIL DRAIN | |
| 8 | 5266419 | [1] | GASKET | |
| 9 | 3965617 | [2] | CLIP-WIRE RETAINING | |
| 10 | 3965618 | [2] | CLIP-WIRE | |
| 11 | 4931642 | [4] | STUD-D/END PLAIN | |
| 12 | 5263462 | [4] | NUT-TWELVE PIONT | |
| 13 | 5316909 | [1] | HARNESS-WIRING | |
| *-2. | 4032806 | [1] | TURBO SENSOR KIT | |
| *-3. | 4034175 | [1] | TURBO ELEC ACTUATOR KIT | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
