241-5645 2415645 Oil Filler Cap Articulated Truck Spare Parts Fitting For C11 3176C 725 730
- 241-5645 2415645 Oil Filler Cap Articulated Truck Spare Parts Fitting For C11 3176C 725 730
- Specifiion
| Name | Cap |
| Parts No | 241-5645 2415645 |
| Machine Model | 120H 12H 12K 12M 135H 140G 140K 140K 2 140M 160K 16M 725 730 |
| egory | Engine Oil Filler |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
Its primary function is to seal the oil filler port of the engine or other lubriion systems, preventing dust, dirt, and moisture from entering the system, which could cause component wear and corrosion. Additionally, during maintenance, it facilitates easy access for oil filling, and during normal operation, it helps maintain the proper pressure and cleanliness within the lubriion system.
- Compatible models
ARTICULATED TRUCK 725 730
CHALLENGER 75C 85C
EJECTOR TRUCK 730
INDUSTRIAL ENGINE C-9 C15 C7 C9
LOAD HAUL DUMP R1600H
MARINE ENGINE 3126B 3406E C7
MOTOR GRADER 120H 12H 12K 12M 135H 140G 140K 140K 2 140M 160K 16M
PETROLEUM ENGINE C15 C7 C9
PETROLEUM PACKAGE CX31-C9I TH35-C15T
PETROLEUM TRANSMISSION TH31-E61
PIPELAYER 561N
SOIL COMPACTOR 815B
TRACK LOADER 953C 963C
TRACK-TYPE TRACTOR D5N D6N
TRUCK ENGINE 3116 3126 3126B 3126E 3176 3406E C-10 C-12 C-15 C-16 C11 C13 C15 C7
VIBRATORY COMPACTOR CB-334D CB-334E CB-335D C.ater.pillar.
- More other cap parts fit for C A T machine
| 5K3502 CAP-LOWER |
| 16G, 16H, 16H NA, 824C, 826C, 980, 980B, 980C, 980F, R1300, R1300G, R1300G II, R1600, R1600G, R1600H, R1700 II, R1700G |
| 4K6761 CAP-UPPER |
| 14G, 14H, 14H NA, 14M, 814, 814B, 814F, 814F II, 815, 815B, 815F, 815F II, 816F, 816F II, 966C, 966D, 966F, 966F II, 970F |
| 4K6760 CAP-LOWER |
| 14G, 14H, 14H NA, 814, 814B, 814F, 814F II, 815, 815B, 815F, 815F II, 816F, 816F II, 966C, 966D, 966F, 966F II, 970F |
| 5K0989 CAP-UPPER |
| 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2,... |
| 5K0991 CAP-LOWER |
| 12G, 12H, 12H ES, 12H NA, 12K, 130G, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA, 528, 528B, 530B, 950, 950B, 950B/950E, 950F, 950F II, 960F |
| 9D8285 CAP |
| 120G, 120H, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA |
| 6G1919 CAP |
| 120G, 12G, 130G, 140G, 160G |
| 6F6992 CAP-BALL SOCKET |
| 120, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140, 140B, 140G, 140H, 140H ES, 140H NA... |
| 8W2842 CAP AS |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, ... |
| 2G9098 CAP |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA |
| 8X8406 CAP |
| 120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 160H, 160H ES, 160H NA, 163H, 163H NA |
| 1606301 CAP-BEARING |
| 12H, 12H NA, 140H, 140H NA |
| 4W3087 CAP AS-FILLER |
| 3126B, 3176, 3176B, 3406B, 3406C, 3406E, 508, 75, 75C |

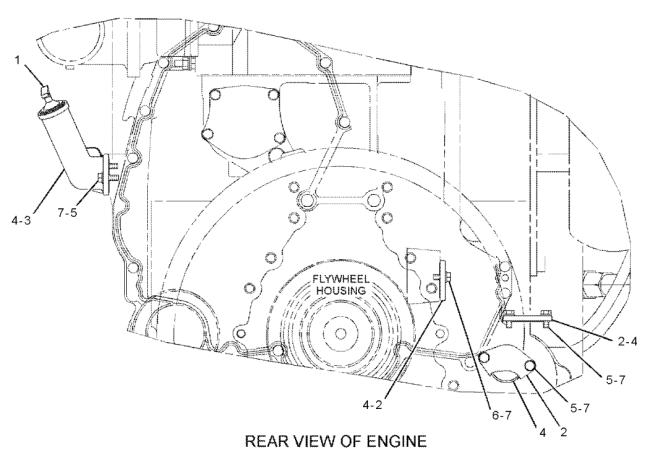

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 241-5645 | [1] | CAP AS-ENGINE OIL FILLER | |
| 2 | 7C-1445 | [3] | COVER | |
| 3 | 264-4288 | [1] | TUBE-OIL FILLER | |
| 4 | 061-9455 | [4] | SEAL-O-RING | |
| 5 | 6V-3940 M | [6] | BOLT (M8X1.25X25-MM) | |
| 6 | 6V-5217 M | [2] | BOLT (M8X1.25X20-MM) | |
| 7 | 9M-1974 | [8] | WASHER-HARD (8.8X16X2-MM THK) | |
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
