126-5869 1265869 Thermostat Excavator Spare Parts Fitting For 3116 320B 322B 324D
- 126-5869 1265869 Thermostat Excavator Spare Parts Fitting For 3116 320B 322B 324D
- Specifiion
| Name | Thermostat |
| Parts No | 126-5869 1265869 |
| Machine Model | 320B 322B 324D 325L 325B 326DL 328DLCR 329D |
| egory | Engine Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
-
Function
Its main function is to control the flow path and flow rate of the coolant by sensing the temperature, ensuring that the engine operates within the optimal temperature range. When the engine is cold - started, the thermostat closes to reduce the flow of coolant to the radiator and accelerate engine warm - up. When the appropriate operating temperature is reached, the thermostat opens in a timely manner to ensure the effective circulation of the cooling system and prevent overheating.
- Compatible models
ASPHALT PAVER AP-1000 AP-1000B AP-1050 AP-1055B AP-900B BG-2455C BG-245C
BACKHOE LOADER 446B 446D
CHALLENGER 35 45 55
COMPACT WHEEL LOADER 910E
EXCAVATOR 320 L 320B 322B 322B L 322B LN 322C 322C FM 324D 324D FM 324D FM LL 324D L 324D LN 325 L 325 LN 325B 325B L 325C 325C FM 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN M325D L MH M325D MH
FORWARDER 574
GEN SET ENGINE 3116
INDUSTRIAL ENGINE 3114 3116 3126 3126B C9 C9.3
INDUSTRIAL TRACTOR TK371 TK381
INTEGRATED TOOLCARRIER IT12B IT18F IT24F IT28F IT28G IT38F IT38G IT38G II IT62G IT62G II
KNUCKLEBOOM LOADER 539
LOGGER 322C
MOBILE HYD POWER UNIT 324D LN 325C 325D 325D L 329D L
MOTOR GRADER 120H 120H ES 120H NA 12H 135H 135H NA 140M 140M 2 160M 160M 2
PETROLEUM ENGINE C7
PETROLEUM PACKAGE CX31-C9I
PETROLEUM TRANSMISSION TH31-E61
PIPELAYER 561M 561N
TELEHANDLER RT100
TRACK LOADER 953C 963B 963C
TRACK-TYPE TRACTOR D5M D5N D6M D6N
VIBRATORY COMPACTOR CB-434 CB-634C CB-634D CP-563 CS-531C CS-531D CS-533C CS-533D CS-563C CS-563D CS-573C CS-573D CS-583C CS-583D
WHEEL FELLER BUNCHER 533 543 TK370 TK380
WHEEL HARVESTER 550 570 570B 580 580B
WHEEL LOADER 924F 928G 938F 938G 938G II 950G 950G II 962G 962G II
WHEEL SCRAPER 627G 637D 637E 637G
WHEEL SKIDDER 525B 535B
WHEEL TRACTOR 613C II 637G
WHEELED EXCAVATOR M318 M320 M325B M325C MH C.aterp.illar.
- More other thermostat parts fit for C A T machine
| 21360430 thermostat |
| Heavy |
| 21252105 thermostat housing |
| Heavy |
| 21198237 thermostat |
| Heavy |
| 21334777 thermostat housing |
| Heavy |
| 20900199 thermostat housing |
| Heavy |
| 20900198 thermostat housing |
| Heavy |
| 21746213 thermostat |
| Heavy |
| 21061992 thermostat |
| Heavy |
| 20701549 thermostat |
| Heavy |
| 20746702 thermostat |
| Heavy |

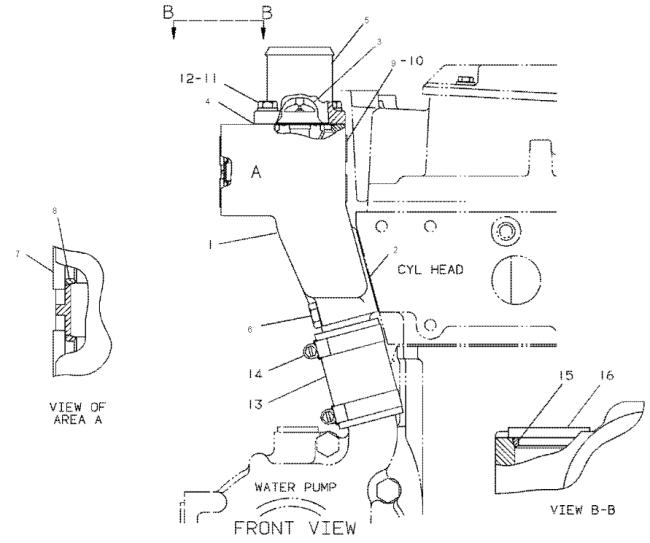

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 126-0447 C | [1] | HOUSING-WATER REGULATING | |
| 2 | 2W-7212 | [1] | GASKET-WATER REGULATOR | |
| 3 | 126-5869 | [1] | REGULATOR-WATER TEMPERATURE (94-DEG C) | |
| 4 | 195-7339 | [1] | GASKET-WATER REGULATOR | |
| 5 | 4P-2685 | [1] | PIPE | |
| 6 | 6V-5230 M | [2] | BOLT (M10X1.5X60-MM) | |
| 7 | 9S-8005 | [2] | PLUG (3/4-16-THD) | |
| 8 | 3K-0360 | [2] | SEAL-O-RING | |
| 9 | 9S-8004 C | [2] | PLUG (9/16-18-THD) | |
| 10 | 3J-1907 C | [2] | SEAL-O-RING | |
| 11 | 6V-3940 M | [2] | BOLT (M8X1.25X25-MM) | |
| 12 | 9M-1974 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| 13 | 5P-0763 BE | HOSE | ||
| 14 | 8T-4983 | [2] | CLAMP-HOSE | |
| 15 | 3D-2824 B | [1] | SEAL-O-RING | |
| 16 | 9S-8008 B | [1] | PLUG (1-1/16-12-THD) | |
| B | USE AS REQUIRED | |||
| C | CHANGE FROM PREVIOUS TYPE | |||
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
