421-22-41860 4212241860 Bearing KOMATSU Wheel Loader Spare Parts For WA430-6 WA470-6A
- 421-22-41860 4212241860 Bearing KOMATSU Wheel Loader Spare Parts For WA430-6 WA470-6A
- Specifiion
| Name | Bearing |
| Parts No | 421-22-41860 4212241860 |
| Machine Model | WA430 WA470 WA480 |
| egory | Front Axle, Differental |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Its main function is to support rotating parts, ensuring smooth rotation of components such as wheels or transmission shafts, reducing friction, and enabling efficient power transmission. It can also bear the radial and axial loads generated during the operation of the machinery, maintaining the normal operation of the relevant components and ensuring the stable operation of the entire equipment.
- Compatible models
WHEEL LOADERS WA430 WA470 WA480 Komatsu
- More other bearing parts fit for KOMATSU machine
| 708-1S-12260 BEARING |
| AIR, D275A, D375A, D475A, D475ASD, D61EX, D61PX, D65EX, D65PX, D65WX, D85EX, D85MS, D85PX, DRAWBAR,, FRONT, GD755, HM300, HM400, KOMTRAX, PC490, WA380, WA430, WA470, WA480, WA50, WA500, WA600, WD600 |
| 714-07-29350 BEARING |
| AIR, HM250, HM300, WA380, WA400, WA430, WA450, WA470, WA480 |
| 6151-39-3050 BEARING |
| HM300, PC400, PC450, PC490, SA6D125, SAA6D125E, WA470, WA480 |
| 06040-06213 BEARING |
| AIR, D155AX, D275A, D355A, D375A, D70, D70LE, FRONT, GD40HT, GD705R, GD805A, GD825A, HD325, HD405, HM350, HM400, WA320, WA320PZ, WA380, WA420, WA430, WA470 |
| 06030-06004 BEARING,BALL |
| 6D125, 6D125E, SAA6D125E |
| 06124-02520 BEARING,NEEDLE |
| AIR, BATTERY, FRONT, GD555, GD655, GD675, HYDRAULIC, WA150, WA150PZ, WA200, WA250PZ, WA320, WA320PZ, WA380, WA430, WA500 |
| 06002-32215 BEARING,ROLLER |
| AIR, D40A, D40AF, D40PF, D40PL, D40PLF, D45A, D45P, D45S, D50A, D50P, D50PL, D53A, D53P, D53S, D57S, D58E, D58P, D75S, GD305A, GD355A, GD405A, WA380, WA400, WA430 |
| 06002-32019 BEARING |
| FD35/40, FD35Z/40Z, FD45, FD50A, FG35/40, FG35Z/40Z, FG45, FG50A, WA450, WA470, WA480 |
| 708-1W-42120 BEARING |
| AIR, COOLANT, D155AX, D275A, D275AX, D375A, D61EX, D61EXI, D61PX, D61PXI, FRONT, GD555, GD655, GD675, HM400, HYDRAULIC, PC600, PC650, PC700, PC800, PC800SE, PC850, PC850SE, WA270, WA320, WA380, WA380Z... |
| 13F-70-31230 BEARING (WELDED) |
| D61E, D61EX, D61P, D61PX |
| 562-15-29310 BEARING |
| HD1500, WA470, WA480 |
| 714-23-19310 BEARING |
| GD555, GD655, GD675 |
| 14X-15-29320 BEARING |
| D61EX, D61PX, D65E, D65EX, D65P, D65PX, D85E, D85ESS |
| KD1-0468-60067 BEARING,BALL |
| 6D125, NTO, S6D105, S6D170, SA6D140, SA6D170 |
| 415-22-12811 BEARING |
| WA100M, WA120, WA50, WA70, WA80, WR8 |
| KD1-0472-63057 BEARING,BALL |
| 4D105, 4D130, 4D94, 4D95L, 4D95S, 6D105, 6D95L, NH, NTO, S4D102E, S4D105 |
| YM129900-02930 BEARING, THRUST |
| 4D94E, 4D94LE, 4D98E, CK20, CK25, CK30, CK35, PC75, PC75R, PW75, PW75R, SK09J, SK1020, SK1026, WA65, WA65PT, WA75, WA90, WB70A |
| YM129900-02940 BEARING, THRUST (+0.25 mm) |
| 4D94E, 4D94LE, 4D98E, CK20, CK25, CK30, CK35, PC75, PC75R, PW75, PW75R, SK09J, SK1020 |

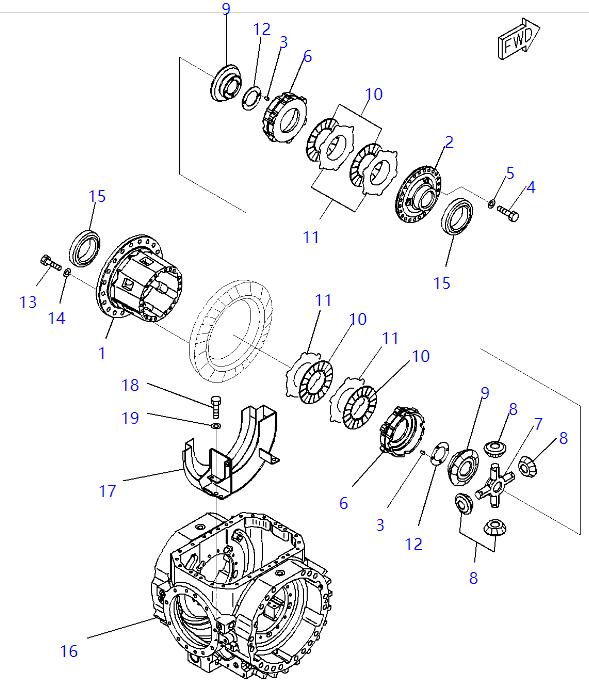

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 421-22-30083 | [1] | Axle Assembly,Front Komatsu China | ||
| ["SN: 91086-UP"] |$0. | ||||
| 421-22-30082 | [1] | Axle Assembly,Front Komatsu China | ||
| ["SN: 90216-91085", "SCC: A2"] |$1. | ||||
| 421-22-31085 | [1] | Differential Assembly Komatsu China | ||
| ["SN: 91086-@"] |$2. | ||||
| 421-22-31084 | [1] | Differential Assembly Komatsu China | ||
| ["SN: 90216-91085", "SCC: A2"] |$3. | ||||
| 421-22-31083 | [1] | Differential Assembly Komatsu China | ||
| ["SN: 90216-90460", "SCC: B1"] |$4. | ||||
| 421-22-37700 | [1] | Differential Assembly Komatsu China | ||
| ["SN: 90216-UP"] |$5. | ||||
| 1 | 421-22-37660 | [1] | CAASE Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 2 | 421-22-37720 | [1] | Cover Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 3 | 175-21-12180 | [4] | Pin Komatsu | 0.008 kg. |
| ["SN: 90216-UP"] | ||||
| 4 | 01010-61240 | [18] | Bolt Komatsu | 0.052 kg. |
| ["SN: 90216-UP"] analogs:["01010E1240", "0101031240"] | ||||
| 5 | 01643-31232 | [18] | Washer Komatsu | 0.027 kg. |
| ["SN: 90216-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 6 | 421-22-37760 | [2] | Ring, Pressure Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 7 | 421-22-37220 | [1] | Shaft Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 8 | 421-22-37310 | [4] | Pinion Komatsu | 1 kg. |
| ["SN: 90216-UP"] | ||||
| 9 | 421-22-37320 | [2] | Gear Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 10 | 421-22-37410 | [4] | Disc Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 11 | 421-22-37450 | [4] | Plate, T=3.1mm Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 11 | 421-22-37460 | [4] | Plate, T=3.2mm Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 12 | 421-22-37371 | [2] | Washer, T=4.0mm Komatsu China | |
| ["SN: 90216-UP"] analogs:["4212237370"] | ||||
| 12 | 421-22-37381 | [2] | Washer, T=4.1mm Komatsu China | |
| ["SN: 90216-UP"] analogs:["4212237380"] | ||||
| 13 | 01010-61645 | [20] | Bolt Komatsu China | 0.104 kg. |
| ["SN: 90216-UP"] analogs:["801015187", "0101031645", "0101051645", "0101081645", "37A0911184", "801014184"] | ||||
| 14 | 01643-31645 | [20] | Washer Komatsu | 0.072 kg. |
| ["SN: 90216-UP"] analogs:["802170005", "0164301645"] | ||||
| 15 | 421-22-41860 | [2] | Bearing Komatsu China | |
| ["SN: 90799-UP"] | ||||
| 15 | 421-22-11860 | [2] | Bearing Komatsu | 2.52 kg. |
| ["SN: 90216-90798", "SCC: A2"] | ||||
| 16 | 421-22-33811 | [1] | Housing Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 17 | 421-22-31832 | [1] | Cover, Gear Komatsu China | |
| ["SN: 90216-UP"] | ||||
| 18 | 01010-61225 | [4] | Bolt Komatsu | 0.039 kg. |
| ["SN: 90216-UP"] analogs:["01010E1225", "0101031225"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
