6E5933 6E-5933 Relief Valve Excavator Main Control Valve Fitting For 320 320 L 320N
-
6E5933 6E-5933 Relief Valve Excavator Main Control Valve Fitting For 320 320 L 320N
-
Specifiion
| Appliion | C A T Excavator Main Control Valve |
| Name | Relief valve |
| Parts No | 6E5933 6E-5933 |
| Model |
320 320 L 320N 325 L 325 LN 330 330 L |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
- Function
1.Preventing over - pressure damage: The relief valve is equipped with a valve mechanism. When the pressure in the hydraulic system exceeds the preset level, the valve will open, allowing the hydraulic fluid to flow back to the oil tank or other designated outlets in a controlled manner. This prevents the hydraulic system from being damaged by excessive pressure, avoiding problems such as structural damage, leaks, or even explosions.
2.Maintaining system pressure stability: It can maintain the pressure of the hydraulic system within a safe range, preventing pressure fluctuations and surges. By diverting excess hydraulic fluid, it ensures that the pressure in the system does not exceed the safe operating limit, helping to maintain the stable operation of the hydraulic system and related components.
- Applicable models
EXCAVATOR 320 320 L 320N 325 L 325 LN 330 330 L
- More valve parts supplied to C A T machine
| 5I7526 VALVE |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 321B, 321C, 323D L, 323D LN |
| 5I7739 VALVE |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN |
| 5I7738 VALVE |
| 311, 311B, 311C, 312B, 312C L, 320 L, 320B, 320C, 320C FM, 320N |
| 5I8026 VALVE AS |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM RR, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN |
| 5I8066 VALVE AS-RELIEF |
| 311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 3... |
| 5I7643 VALVE |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B U, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN |
| 0952489 VALVE |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN, E110, E110B, E120B, E200B, E450 |
| 5I7559 VALVE AS |
| 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN, 323D SA |
| 7Y4267 VALVE |
| 315D L, 316E L, 318C, 318D L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, ... |
| 6E1903 VALVE GP |
| 325 LN, 330 L |
| 6E4829 VALVE |
| 325 LN, 330 L |
| 6E1906 VALVE GP |
| 325 LN, 330 L |
| 9J4080 VALVE GP-BRAKE |
| 834B, 836, 988B, 988F, 988F II, 992C, 992D |
| 4T1040 VALVE GP |
| 611, 621E, 621F, 621G, 623E, 623F, 623G, 627E, 627F, 627G, 631G, 637G, 926, 926A, 936, 936F, D6H, D7H, D7R, G926, G936, IT28, IT28B |
| 9T7249 VALVE GP-BANK |
| D3C, D3C II, D3C III, D4C, D4C II, D4C III, D5C, D5C III |
| 6E0007 VALVE GP |
| 350, 375, 5080 |
| 8Y0241 VALVE & MOUNTING GP |
| D3C, D4C |

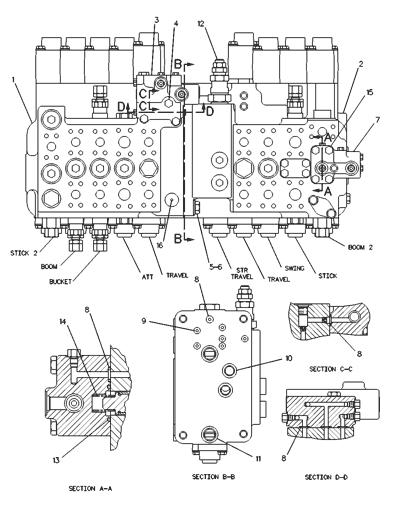

- alog part list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6E-5634 Y | [1] | VALVE GP-CONTROL | |
| 2 | 6E-5639 Y | [1] | VALVE GP-CONTROL | |
| 3 | 6E-4298 Y | [1] | VALVE GP-PRESSURE CONTROL | |
| 4 | 6V-5230 M | [3] | BOLT | |
| 5 | 6V-5686 M | [4] | BOLT | |
| 6 | 5P-8247 | [4] | WASHER-HARD | |
| 7 | 6E-4281 Y | [1] | VALVE GP-PRESSURE CONTROL | |
| 8 | 4J-9535 | [6] | SEAL | |
| 9 | 4J-5309 | [6] | SEAL-O-RING | |
| 10 | 1P-3702 | [2] | SEAL-RECTANGULAR | |
| 11 | 6V-0357 | [2] | SEAL-O-RING | |
| 12 | 6E-5933 Y | [1] | VALVE GP-RELIEF | |
| 13 | 4J-0519 | [1] | SEAL | |
| 14 | 6E-2157 | [1] | SPRING | |
| 15 | 6V-7981 M | [4] | BOLT | |
| 16 | 4B-4158 | [1] | SCREW | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
- Other hot selling parts
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
