15070857 11116529 Fan Motor Excavator Spare Parts Fitting For A25F A30F A35F
- VOE21422765 21422765 Belt Tensioner Excavator Spare Parts Fitting For D13 EC380 EC480
- Specifiion
| Name | Fan Motor |
| Parts No | 15070857 11116529 |
| Machine Model | A25F A30F A35F A35FFS A40F A40FFS A25G A30G A35G A40G A60H |
| egory | Hydraulic Motor, Fan Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
The fan motor is an essential component that drives the fan to rotate. Its main function is to support the cooling system of the machinery. By ensuring sufficient air circulation and heat exchange, it regulates the temperature of the engine and the machine itself, helping to maintain the normal operation of the engine and prevent overheating.
- Compatible models
A25F A30F A35F A35FFS A40F A40FFS A25G A30G A35G A35GFS A40G A60H Vo-lvo
- More other fan motor parts fit for V O L V O machine
| VOE21146740 Fan hub |
| A25E, A30E, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A45G, A45G FS, EC950E, FB2800C, FBR2800C, L350F |
| VOE15170868 Fan guard |
| A25F, A30F, A35F, A35F FS, A40F, A40F FS |
| VOE16849827 Fan shroud |
| A25F/G, A25G, A30F/G, A30G |
| VOE16271018 Fan |
| A25F, A25F/G, A30F, A30F/G, A35F, A35F FS, A35F/G, A35F/G FS, A40F, A40F FS, A40F/G, A40F/G FS, A60H, L110F, L110G, L110H, L120F, L120G, L120H, L150F, L150G, L150H, L180F, L180F HL, L180G, L180G HL, L... |
| VOE16913091 Fan motor retainer |
| A25G, A30G, A35G, A40G, A45G, A45G FS, A60H |
| VOE22031832 Fan hub |
| A45G, A45G FS, A60H, EC950E |
| VOE17464613 Fan |
| A60H |
| VOE16897442 Fan motor retainer |
| A60H |
| VOE16911705 Fan shroud |
| A60H |
| VOE16890053 Fan shroud |
| A60H |
| VOE16897856 Fan guard |
| A60H |
| VOE16890251 Fan guard |
| A60H |
| RM15623366 Fan |
| PF161, PF4410 |
| VOE16821200 Fan Shroud |
| L60G, L70G, L90G |
| VOE16027891 Fan shroud |
| L105 |
| VOE16231965 Fan shroud |
| Volvo.Heavy |
| VOE17001807 Fan guard |
| L105 |
| VOE16231966 Fan ring |
| BL60B, BL61B, BL70B, BL71B |
| VOE12788847 Fan |
| P6820C ABG, P6870/5870/5770C ABG, P7820C ABG, P8820C ABG |
| RM14320113 Fan Assy. |
| ABG9820 |
| VOE12791138 Fan wheel |
| P6820C ABG, P6870/5870/5770C ABG, P7820C ABG, P8820C ABG |
| VOE3716116 Fan wheel |
| 6300, EC130 ÅKERMAN, EC150 ÅKERMAN, EC200, EC200 ÅKERMAN, EC300 ÅKERMAN, EC450, EC450 ÅKERMAN, EC620 ÅKERMAN, EC650, EC650 ÅKERMAN, EL70 VOLVO BM, EL70C VOLVO BM, EW130 ÅKERMAN, EW150 ÅKERMAN, EW200, ... |
| VOE3728733 Fan motor kit |
| 6300, EC130 ÅKERMAN, EC130C, EC130C ÅKERMAN, EC150 ÅKERMAN, EC200, EC200 ÅKERMAN, EC300 ÅKERMAN, EC340, EC390, EC450, EC450 ÅKERMAN, EC620 ÅKERMAN, EC650, EC650 ÅKERMAN, EL70 VOLVO BM, EL70C VOLVO BM,... |
| RM15596588 Fan |
| PF2181 |

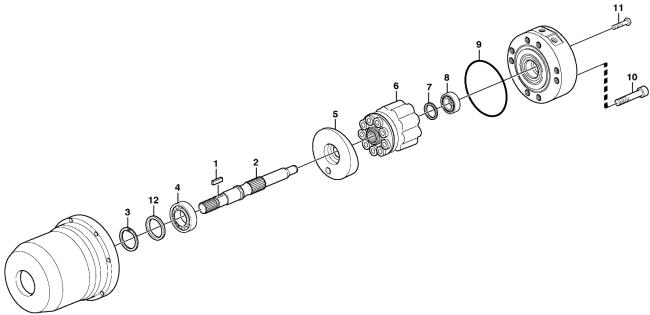

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| VOE11116529 | [1] | Hydraulic motor | ||
| VOE15070857 | Fan motor | |||
| 1 | VOE11707892 | [1] | Key | |
| 2 | VOE11708453 | [1] | Axle shaft | |
| 3 | VOE11708755 | [1] | Lock ring | |
| 4 | VOE11992817 | [1] | Roller bearing | |
| 5 | VOE11708452 | [1] | Yoke | |
| 6 | VOE11707888 | [1] | Pump element | |
| 7 | VOE11707893 | [1] | Shim | |
| 8 | VOE11707578 | [1] | Roller bearing | |
| 9 | VOE11707896 | [1] | O-ring | |
| 9 | VOE11707896 | O-ring | ||
| 10 | VOE974081 | [8] | Hex. socket screw | |
| 11 | VOE11708454 | [1] | Screw | |
| 12 | VOE11707895 | [1] | Sealing ring | (VOE 11707575) |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
