9Y-4357 9Y4357 Breather Excavator Spare Parts Suitable For 345B 349D2 L 365B L C13
- 9Y-4357 9Y4357 Breather Excavator Spare Parts Suitable For 345B 349D2 L 365B L C13
- Specifiion
| Name | Breather |
| Parts No | 9Y-4357 9Y4357 |
| Machene Model | 140H 143H 14H 14M 160H 163H |
| egory | Mechanism Valve |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Similar to typical engine breathers, its key function is to ventilate the engine, helping to maintain an appropriate internal pressure, so as to guarantee normal fuel combustion. In addition, it is capable of filtering, keeping external contaminants such as dust and moisture from getting into the engine, thus safeguarding the engine.
- Compatible models
CHALLENGER 65E 75 75C 75D 75E 85C 85D 85E 95E MTC835
COMBINE 480
EJECTOR TRUCK 730
EXCAVATOR 345B 345B II 345B II MH 345B L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 365B 365B II 365B L
GEN SET ENGINE C-12
INDUSTRIAL ENGINE 3176B 3176C 3196 C-10 C-12 C11 C13
LANDFILL COMPACTOR 816F
LOAD HAUL DUMP R1600 R1600G R1600H R1700 II R1700G
MARINE ENGINE 3176B 3176C 3196 C-12 C12
MOBILE HYD POWER UNIT 345C L 349D L
MOTOR GRADER 140H 143H 14H 14M 160H 163H 16H 16M
PETROLEUM ENGINE C11 C13
PETROLEUM PACKAGE CX31-C13I TH35-C11I TH35-C13I
PIPELAYER 572R II
PUMPER CPT372 SBF214 SUF557
RECLAIMER MIXER RM-300
SHOVEL LOGGER 345C
SOIL COMPACTOR 815F
TRACK FELLER BUNCHER TK1051
TRACK-TYPE TRACTOR D7R II D8N
TRUCK ENGINE 3176 3176B C-10 C-12 C11 C13
WHEEL DOZER 814F
WHEEL LOADER 966G II 966H 972G II 972H 980C
WHEELED EXCAVATOR W345B II W345C MH C.aterp.illar.
- More other breather parts fit for C A T machine
| 9G5127 BREATHER |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 9G9981 BREATHER |
| 35, 446, 446B, 45, 518C, 528B, 530B, 55, 578, 583R, 587R, 587T, 589, 854G, 966G II, 966K, 972G II, 972K, 980K, 980K HLG, 980M, 982M, 992G, D10N, D11N, D11R, D11T, D6H, D6H II, D6H XL, D6H XR, D6R, D8L... |
| 2582829 BREATHER |
| 236D, 242D, 246C, 246D, 256C, 257D, 259D, 262C, 262C2, 262D, 272C, 272D, 272D XHP, 277C, 277C2, 277D, 279C, 279C2, 279D, 287C, 287C2, 287D, 289C, 289C2, 289D, 297C, 299C, 299D, 299D XHP, 621H, 621K, 6... |
| 4H6112 BREATHER |
| 1090, 117, 118, 119, 1190, 1190T, 120M, 120M 2, 127, 128, 129, 1290T, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 1390, 140B, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2... |
| 9Y2988 BREATHER AS |
| 16G, 2864C, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 3... |
| 4N4668 BREATHER AS |
| 16G, 16H NA, 245, 24H, 3406, 3406B, 3408, 3408B, 3408C, 3408E, 3412, 3412C, 3412E, 365C, 365C L, 365C L MH, 375, 375 L, 5080, 5110B, 578, 583R, 583T, 587R, 589, 621E, 621F, 623E, 623F, 627B, 627E, 627... |
| 1F8488 BREATHER AS |
| 120, 120B, 120G, 120H, 120H ES, 120H NA, 12E, 12F, 12G, 12H, 12H NA, 130G, 135H, 135H NA, 140G, 140H, 140H NA, 143H, 14E, 14H NA, 16, 160G, 160H, 160H ES, 160H NA, 163H, 163H NA, 16G, 16H NA, 25, 3516... |
| 1833873 BREATHER |
| 320D, 320D FM, 554, 561N, 572R II, 583T, 735, 735B, 740, 740B, 797, 797B, 953D, 963D, 966K, AP-655C, AP-800D, C18, CB-44B, CB-54, CB-54B, CB-64, CB22B, CB24B, CB32B, CB34B, CB34B XW, CC24B, CC34B, CD-... |
| 6G0078 BREATHER |
| 621, 621B, 621E, 621F, 621G, 623E, 623F, 623G, 627B, 627E, 627F, 627G, 631D, 631E, 631G, 633E II, 637D, 637E, 637G, 651E, 657E, 657G, 69D, 768C, 769C, 769D, 771C, 771D, 772B, 773B, 773D, 775B, 775D |

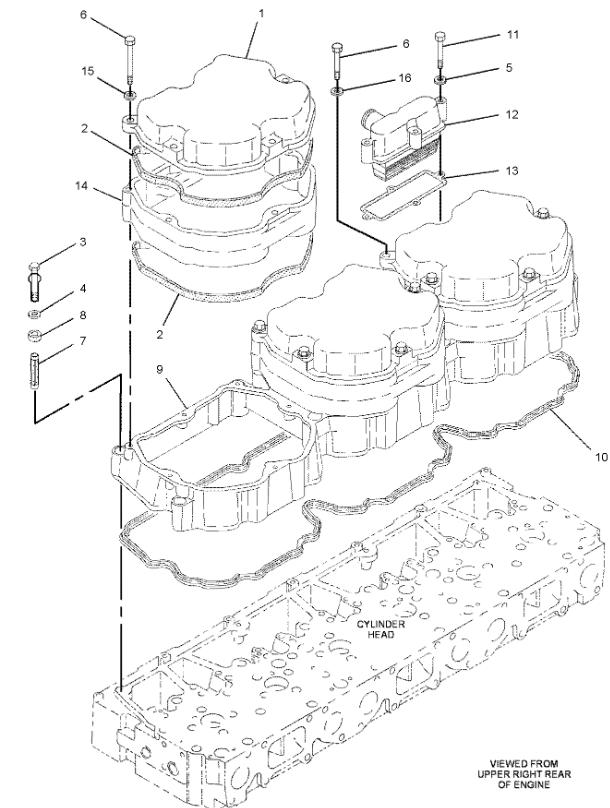

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 9Y-4580 | [3] | COVER AS-VALVE MECHANISM | |
| (EACH INCLUDES) | ||||
| 2 | 5P-5678 D | SEAL (1M) | ||
| 3 | 8T-0100 M | [8] | BOLT (M8X1.25X60-MM) | |
| 4 | 3E-4352 | [8] | WASHER-HARD (8.8X20.5X2.5-MM THK) | |
| 5 | 9X-8267 | [4] | WASHER (6.6X12X2-MM THK) | |
| 6 | 7X-0465 M | [18] | BOLT (M6X1X100-MM) | |
| 7 | 9Y-7215 | [8] | SLEEVE-ISOLATOR | |
| 8 | 7C-8292 | [8] | ISOLATOR | |
| 9 | 100-5458 | [1] | BASE-VALVE MECHANISM COVER | |
| 10 | 4P-2697 | [1] | GASKET-VALVE COVER | |
| 11 | 8T-0275 M | [4] | BOLT (M6X1X50-MM) | |
| 12 | 9Y-4357 | [1] | BREATHER AS | |
| 13 | 9Y-1758 | [1] | GASKET | |
| 14 | JZ | [3] | SPACER AS | |
| 15 | 9X-8256 | [17] | WASHER (6.6X12X2-MM THK) | |
| 16 | 5P-4115 | [1] | WASHER-HARD (7.2X19X2-MM THK) | |
| 3S-6252 AB | SEALANT | |||
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
| D | ORDER BY THE METER | |||
| J | PART OF JAKE BRAKE GP | |||
| M | METRIC PART | |||
| Z | NOT SERVICED SEPARATELY |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
