07260-24125 07260-24122 Hose KOMATSU Grader Spare Parts Fit For GD805A-1 GD825A-2
- 07260-24125 07260-24122 Hose KOMATSU Grader Spare Parts Fit For GD805A-1 GD825A-2
- Specifiion
| Name | Hose |
| Parts No | 07260-24125 07260-24122 |
| Machine Model | GD805A GD825A |
| egory | Final Drive CAASE |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
These hoses are primarily used to transfer fluids within the machine, and the specific fluid depends on where they're installed. Most commonly, they might serve as hydraulic hoses to convey hydraulic oil in the hydraulic system, powering components like excavator arms, loader buckets, etc. They could also be used in cooling systems to move coolant, in fuel systems to direct fuel to the engine, or in lubriion systems to transport lubricant, based on design requirements
- Compatible models
GRADERS GD805A GD825A Komatsu
- More other hose parts fit for KOMATSU machine
| 235-03-11441 HOSE |
| GD825A |
| 235-44-31640 HOSE |
| GD825A |
| 235-16-45120 HOSE |
| GD825A |
| 07260-22040 HOSE |
| GD825A, PC05, PC07, PC15MRX, S6D125, SA6D125E, SAA6D125E, SK07, WA450, WA450L, WA470, WA480 |
| 07102-20411 HOSE |
| CD60R, CL60, CS360, D155A, D40A, D40AM, D40F, D40P, D40PF, D40PL, D40PLL, D41P, D50A, D50P, D50PL, D575A, D85C, GD605A, GD623A, GD625A, GD825A, GS360, HD200D, HD205, HD255, LW250, PC100, PC100L, PC110... |
| 07102-21015 HOSE |
| CD110R, D135A, D155A, D575A, GD825A, PC150, PC200, PC200CA, PC210, PC220, PC230, PC250, PC650, PC650SE, PC710, PC710SE, PW170ES, WA300, WA300L, WA320, WA400, WA420 |
| 07121-40205 HOSE |
| GD825A, PC400 |
| 07260-21480 HOSE |
| 568, CS360, D275A, D375A, D475A, D475ASD, EG50S, FB10M, FB13M, FB15M, FB18M, FD35/40, FD35Z/40Z, FD45, FD50A, FG35/40, FG35Z/40Z, FG45, FG50A, GD705A, GD825A, HD255, JV100A, PC10, WA350, WA380, WA400,... |
| 07261-20914 HOSE |
| 568, D85A, D85P, EGS1000, EGS1050, FB10/14EX, FB10/14EXF, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FD18, FD20, FD20/25, FD20H, FD20H... |
| 07121-00434 HOSE |
| GD805A |
| 07121-00423 HOSE |
| GD805A |
| 07121-00314 HOSE |
| GD805A, GD825A, GS360 |

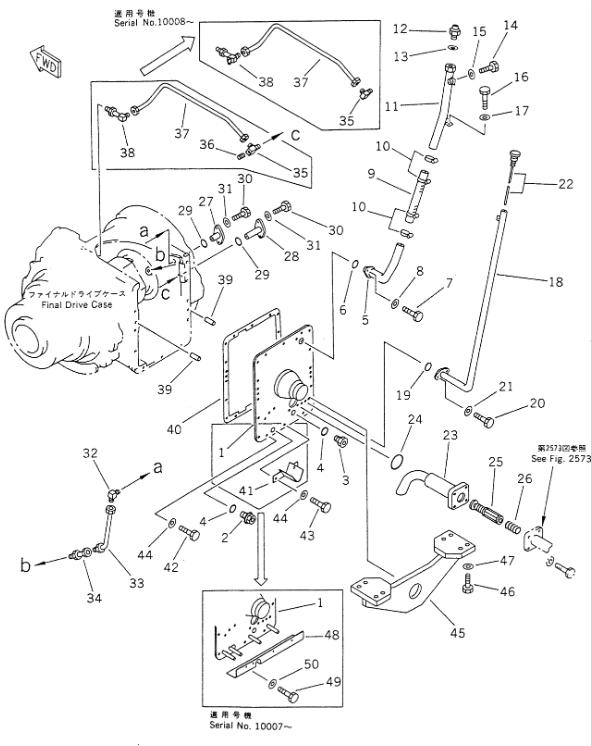

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 235-22-00111 | [1] | FINAL DRIVE ASS'Y Komatsu China | ||
| ["SN: 10002-UP"] analogs:["2352200110"] |1. | ||||
| 235-22-00110 | [1] | FINAL DRIVE ASS'Y Komatsu China | ||
| ["SN: (10002-10007)"] analogs:["2352200111"] |1. | ||||
| 1. | 235-22-11971 | [1] | COVER Komatsu China | |
| ["SN: 10007-UP"] analogs:["2352211970", "2352211972"] | ||||
| 235-22-11970 | [1] | COVER Komatsu China | ||
| ["SN: 10002-10006"] analogs:["2352211971", "2352211972"] |1. | ||||
| 2. | 07044-12412 | [1] | PLUG Komatsu | 0.09 kg. |
| ["SN: 10002-UP"] analogs:["0704402412", "R0704412412"] | ||||
| 3. | 23B-22-21250 | [1] | PLUG Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 4. | 07002-12434 | [2] | O-RING Komatsu China | 0.01 kg. |
| ["SN: 10002-UP"] analogs:["0700202434", "0700213434"] | ||||
| 5. | 235-22-12240 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 6. | 07000-13045 | [1] | O-RING Komatsu China | 0.002 kg. |
| ["SN: 10002-UP"] analogs:["0700003045"] | ||||
| 7. | 01010-51235 | [2] | BOLT Komatsu | 0.048 kg. |
| ["SN: 10002-UP"] analogs:["0101081235", "01010E1235", "801015136"] | ||||
| 8. | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| ["SN: 10002-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 9. | 07260-24125 | [1] | HOSE Komatsu | 0.374 kg. |
| ["SN: 10002-UP"] analogs:["0726024122"] | ||||
| 10. | 07281-00609 | [4] | CLAMP Komatsu | 0.16 kg. |
| ["SN: 10002-UP"] analogs:["6007141660", "802660012"] | ||||
| 11. | 235-22-12250 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 12. | 232-23-11220 | [1] | BREATHER Komatsu | 0.132 kg. |
| ["SN: 10002-UP"] | ||||
| 13. | 07003-03036 | [1] | GASKET Komatsu | 0.006 kg. |
| ["SN: 10002-UP"] analogs:["0700503016"] | ||||
| 14. | 01010-51020 | [1] | BOLT Komatsu | 0.161 kg. |
| ["SN: 10002-UP"] analogs:["0101081020", "801014093", "801015108"] | ||||
| 15. | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| ["SN: 10002-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 18. | 235-22-12260 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 19. | 07000-13022 | [1] | O-RING Komatsu OEM | 0.001 kg. |
| ["SN: 10002-UP"] analogs:["0700003022"] | ||||
| 20. | 01010-51030 | [2] | BOLT Komatsu OEM | 0.03 kg. |
| ["SN: 10002-UP"] analogs:["0101081030", "801015110", "M018011000306", "YM26116100302"] | ||||
| 22. | 235-22-12272 | [1] | GAUGE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 235-22-12270 | [1] | GAUGE Komatsu China | ||
| ["SN: (10002-10006)"] |22. | ||||
| 23. | 235-22-12280 | [1] | CAASE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 24. | 07000-12070 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 10002-UP"] analogs:["0700002070"] | ||||
| 25. | 125-15-11722 | [1] | MAGNET ASS'Y Komatsu | 0.224 kg. |
| ["SN: 10002-UP"] analogs:["1241551740"] | ||||
| 26. | 125-15-11790 | [1] | SPRING Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 27. | 235-22-13350 | [1] | FLANGE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 235-22-12140 | [1] | FLANGE Komatsu China | ||
| ["SN: (10002-10007)"] |27. | ||||
| 28. | 235-22-12230 | [1] | FLANGE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 29. | 07000-13035 | [2] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 10002-UP"] analogs:["0700003035"] | ||||
| 30. | 01010-51035 | [4] | BOLT Komatsu | 0.033 kg. |
| ["SN: 10002-UP"] analogs:["801015556", "0101081035", "01010D1035"] | ||||
| 32. | 234-943-6660 | [1] | ELBOW Komatsu China | |
| ["SN: 10002-UP"] analogs:["22W6114590"] | ||||
| 33. | 235-22-12120 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 34. | 235-22-12110 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 35. | 233-40-33190 | [1] | ELBOW Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 235-22-12180 | [1] | ELBOW Komatsu China | ||
| ["SN: (10002-10007)"] |35. | ||||
| 36. | 235-22-12190 | [1] | PLUG Komatsu China | |
| ["SN: 10002-10007"] | ||||
| 37. | 235-22-13310 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 235-22-12170 | [1] | TUBE Komatsu China | ||
| ["SN: (10002-10007)"] |37. | ||||
| 38. | 235-22-13320 | [1] | TUBE Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 235-22-12160 | [1] | TUBE Komatsu China | ||
| ["SN: (10002-10007)"] |38. | ||||
| 39. | 04020-01638 | [2] | PIN,DOWEL Komatsu | 0.064 kg. |
| ["SN: 10002-UP"] | ||||
| 40. | 235-22-11960 | [1] | GASKET Komatsu China | |
| ["SN: 10002-UP"] analogs:["2352211961"] | ||||
| 41. | 235-22-12450 | [1] | GUARD Komatsu China | |
| ["SN: 10002-10006"] | ||||
| 42. | 01010-51645 | [14] | BOLT Komatsu China | 0.104 kg. |
| ["SN: 10002-UP"] analogs:["0101061645", "801015187", "0101031645", "0101081645", "37A0911184", "801014184"] | ||||
| 01010-51655 | [2] | BOLT Komatsu | 0.119 kg. | |
| ["SN: 10002-10006"] analogs:["0101061655", "801015613", "0101031655", "0101081655"] |43. | ||||
| 44. | 01643-31645 | [16] | WASHER Komatsu | 0.072 kg. |
| ["SN: 10002-UP"] analogs:["802170005", "0164301645"] | ||||
| 45. | 235-22-11980 | [1] | HANGER Komatsu China | |
| ["SN: 10002-UP"] | ||||
| 46. | 01010-52470 | [8] | BOLT Komatsu China | 0.359 kg. |
| ["SN: 10002-UP"] analogs:["0101062470", "0101032470", "0101082470", "0104032470"] | ||||
| 47. | 01643-32460 | [8] | WASHER Komatsu China | 0.063 kg. |
| ["SN: 10002-UP"] analogs:["R0164332460"] | ||||
| 48. | 235-22-12850 | [1] | COVER Komatsu China | |
| ["SN: 10007-UP"] | ||||
| 49. | 01010-51025 | [4] | BOLT Komatsu | 0.36 kg. |
| ["SN: 10007-UP"] analogs:["0101081025", "0101651025", "801015109"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
