6743-31-3101 1240906H91 6743-31-3100 Connecting Rod Assembly KOMATSU Excavator Spare Parts Fitting For PC300LC-8
- 6743-31-3101 1240906H91 6743-31-3100 Connecting Rod Assembly KOMATSU Excavator Spare Parts Fitting For PC300LC-8
- Specifiion
| Name | Connecting Rod Assembly |
| Parts No | 1240906H91 6743-31-3100 6742-01-2700 3901383 6743-31-3102 |
| Machine Model | PC300 PC300HD PC300LL PC350 PC350HD PC350LL |
| egory | Piston and Connecting Rod |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
A connecting rod, as a crucial component in the engine's crank-link mechanism, connects the piston to the crankshaft. It converts the linear reciproing motion of the piston into the rotational motion of the crankshaft to output power, while transmitting combustion pressure from the piston to the crankshaft.
- Compatible models
ENGINES SAA6D114E
EXCAVATORS PC300 PC300HD PC300LL PC350 PC350HD PC350LL
WHEEL LOADERS WA430 Komatsu
- More other connecting rod parts fit for KOMATSU machine
| 423-925-4230 ROD |
| AIR, FRONT, HYDRAULIC, WA150, WA150L, WA200, WA200L, WA200PT, WA200PTL, WA250, WA250L, WA250PT, WA250PTL, WA320, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 417-926-3150 ROD |
| AIR, BATTERY, FRONT, HYDRAULIC, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 425-S33-3231 ROD |
| AIR, FRONT, HYDRAULIC, WA380, WA430, WA450, WA470, WA480, WA500 |
| 707-58-14570 ROD |
| PC300LL, PC350LL |
| 6745-41-3100 ROD, PUSH |
| PC300, PC300HD, PC300LL, PC350, PC350HD, PC350LL, PC360, PC390, PC390LL, SAA6D114E, WA430 |
| AN51571-43910 ROD |
| AIR, FRONT, HD325, HD405, HD605, HD785, WA380, WA430, WA470, WA480, WA500 |
| AN51571-44320 ROD |
| AIR, BATTERY, FRONT, HD325, HD405, HYDRAULIC, WA150, WA150PZ, WA200, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA500 |
| AN51571-44330 ROD |
| AIR, BATTERY, FRONT, HYDRAULIC, WA150, WA150PZ, WA200, WA250, WA250PZ, WA320, WA320PZ, WA380, WA380Z, WA430, WA470, WA480, WA500 |
| 721-58-50940 ROD, PISTON |
| WB140 |
| 585-63-11120 ROD,PISTON |
| HD985 |
| 23S-63-11122 ROD |
| LW250L |
| 561-52-81310 ROD |
| HD785 |
| HD16264ZA0920 ROD,CHOKE |
| GX360K1 |
| 21X-63-66321 ROD |
| PC38UU |
| 21T-63-77120 ROD |
| PC1600 |
| 423-54-48410 ROD |
| FRONT, WA380, WA430 |
| 234-40-11211 ROD |
| GD40HT, GD705R |
| DK534480-4400 ROD |
| PC228, PC228US, PC78MR, PC78US, PC78UU |
| 21-288432-01 ROD |
| 22 |

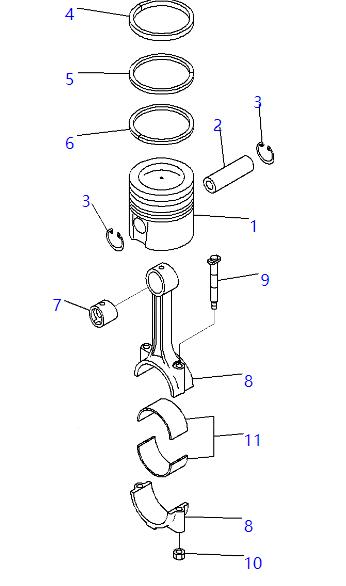

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6745-31-2111 | [6] | Piston Komatsu China | 0.000 kg. |
| ["SN: 26865978-UP"] analogs:["6745322120"] | ||||
| 1 | 6745-31-2110 | [6] | Piston Komatsu OEM | 1.94 kg. |
| ["SN: 26856759-26865977"] | ||||
| 2 | 6745-31-2140 | [6] | Pin Komatsu OEM | 0.802 kg. |
| ["SN: 26856759-UP"] | ||||
| 3 | 6742-01-5309 | [12] | Ring, Snap Komatsu | 0.12 kg. |
| ["SN: 26856759-UP", "SCC: C1"] analogs:["6742012780"] | ||||
| 3 | 6745-31-2010 | [6] | Piston Ring Assembly Komatsu China | 0.023 kg. |
| ["SN: 26856759-UP", "SCC: C1", "SCC: C1"] analogs:["1241748H92", "CU3802429"] | ||||
| 4. | 6745-31-2131 | [1] | Ring,Top Komatsu OEM | 0.000 kg. |
| ["SN: 26864126-UP", "SCC: A2"] | ||||
| 6 | 6743-31-3102 | [6] | Rod Assembly Komatsu OEM | 3.2 kg. |
| ["SN: 26862172-UP"] analogs:["1240906H91", "6743313100", "6742012700", "6743313110", "6743313101", "3901383"] | ||||
| 6 | 6743-31-3101 | [6] | Rod Assembly Komatsu OEM | 3.2 kg. |
| ["SN: 26856759-26862171"] analogs:["1240906H91", "6743313100", "6742012700", "6743313110", "3901383", "6743313102"] | ||||
| 7. | 6743-31-3121 | [1] | Bushing Komatsu | 0.000 kg. |
| ["SN: 26856759-UP"] | ||||
| 9. | 1304869H1 | [2] | Bolt Komatsu | 0.09 kg. |
| ["SN: 26856759-UP"] | ||||
| 10. | 6742-01-4340 | [2] | Nut Komatsu | 0.032 kg. |
| ["SN: 26856759-UP"] | ||||
| 11 | 6743-31-3210 | [12] | Bearing Komatsu | 0.1 kg. |
| ["SN: 26856759-UP"] analogs:["1240913H1", "6742012750"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
