144-70-00051 144-70-15212 144-70-00050 144-70-00100 Yoke Assy KOMATSU Bulldozer Spare Parts For D60P D65E D70
- 144-70-00051 144-70-15212 144-70-00050 144-70-00100 Yoke Assy KOMATSU Bulldozer Spare Parts For D60P D65E D70
- Specifiion
| Name | Yoke Assy |
| Parts No | 144-70-00051 144-70-15212 144-70-00050 144-70-00100 |
| Machine Model | D60A D60E D60P D60PL D65A D65E D65P D70 D70LE D75A |
| egory | Blade Lift Cylinder Support |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
1.Support and Fixation: It provides a stable mounting position for components in the blade control system, such as for connecting the blade with the actuating cylinders or linkage rods, ensuring they function within set positions.
2.Power Transmission: The yoke assembly transfers the power from the blade cylinders to the blade to drive its movement, and it bears and conveys forces from multiple directions during the blade's working process to make it move as the operator controls.
- Compatible models
BULLDOZERS D60A D60E D60P D60PL D65A D65E D65P D70 D70LE D75A Komatsu
- More other yoke parts fit for KOMATSU machine
| 04210-00832 YOKE |
| BC100, D155C, D21A, D21P, D355C, D455A, D60A, D60P, D60PL, D60S, D65S, D80A, D80E, D80P, D85A, D85E, D85P, GD30, GD31, GD31RC, GD37, GD40HT, GD705R |
| 04211-00844 YOKE |
| 22, 4D115, BC100, D150A, D155A, D155C, D155S, D355A, D355C, D455A, D55S, D60A, D60P, D60PL, D60S, D65A, D65E, D65S, D75S |
| 04221-01478 YOKE |
| D150A, D155A, D155C, D355A, D355C, D60A, D60P, D60PL, D65A, D65E, D80P, D85P |
| 144-916-3160 YOKE |
| D60E, D65A, D65E, D65P, D80A, D80E, D85A, D85E, D95S |
| 144-70-00100 YOKE ASS'Y |
| D60E, D65E |
| 04211-20844 YOKE |
| D155AX, D275A, D375A, D65EX, D65PX, D65WX |
| 04221-20844 YOKE |
| D155AX, D65EX, D65PX, D65WX |
| 144-15-16120 YOKE |
| D60A, D60P, D60PL, D65A, D65E, D65P, D66S, D85C |
| 141-30-34310 YOKE |
| BF60, D57S, D60E, D60P, D60PL, D60S, D65A, D65E, D65P, D65S, D70, D70LE, D75A |
| 144-30-14321 YOKE,R.H. |
| D60A, D60F, D65A, D65P |
| 144-30-14311 YOKE,L.H. |
| D60A, D60F, D65A, D65P |
| 144-10-12640 YOKE |
| BF60, D60A, D60E, D60F, D60P, D65A, D65E, D65P, D70, D70LE, D75A |
| 135-22-31152 YOKE |
| D57S, D58E, D58P |
| 135-960-1170 YOKE |
| D53S, D57S, D58E, D58P |
| 19M-61-21111 YOKE |
| D575A |
| 141-30-34310 YOKE |
| BF60, D57S, D60E, D60P, D60PL, D60S, D65A, D65E, D65P, D65S, D70, D70LE, D75A |
| 144-43-16134 YOKE |
| D60A, D60P, D60PL, D65A, D65E |
| 144-15-16120 YOKE |
| D60A, D60P, D60PL, D65A, D65E, D65P, D66S, D85C |
| 141-10-32270 YOKE |
| D60A, D60P, D60PL, D60S |
| 150-10-11420 YOKE |
| D60A, D60P, D60PL, D60S, D80A, D80P |
| 144-43-18210 YOKE |
| D60A, D60P, D60PL |

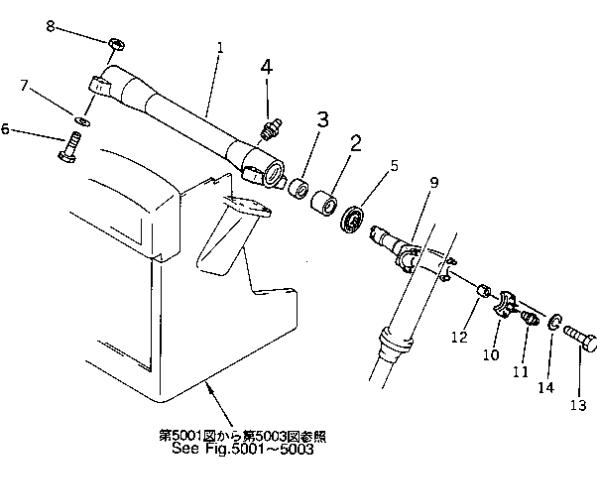

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 144-70-00111 | [1] | CYLINDER STAY ASS'Y Komatsu China | ||
| ["SN: 50001-UP"] |1. | ||||
| 2. | 144-70-15181 | [2] | BUSHING Komatsu | 1.385 kg. |
| ["SN: 50001-UP"] | ||||
| 3. | 144-70-15171 | [2] | BUSHING Komatsu | 0.66 kg. |
| ["SN: 50001-UP"] | ||||
| 4. | 07020-00675 | [2] | FITTING,GREASE Komatsu China | 0.011 kg. |
| ["SN: 50001-UP"] analogs:["21D0989220", "37A099G004"] | ||||
| 5 | 130-09-12370 | [2] | SEAL,OIL Komatsu | 0.09 kg. |
| ["SN: 50001-UP"] | ||||
| 6 | 01051-81830 | [8] | BOLT Komatsu China | |
| ["SN: 50001-UP"] analogs:["0100131830", "0100171830", "0100161830", "0100141830", "0105151830", "0105161830", "0105131830"] | ||||
| 7 | 01643-31845 | [8] | WASHER Komatsu China | 0.02 kg. |
| ["SN: 50001-UP"] analogs:["0164321845", "R0164331845"] | ||||
| 8 | 01582-11815 | [8] | NUT Komatsu | 0.041 kg. |
| ["SN: 50001-UP"] | ||||
| 144-70-00051 | [2] | YOKE ASS'Y Komatsu China | ||
| ["SN: 50001-UP"] analogs:["1447015212", "1447000050", "1447000100"] |9. | ||||
| 10. | 144-70-15260 | [2] | CAP Komatsu China | |
| ["SN: 50001-UP"] analogs:["1447015222"] | ||||
| 11. | 07020-00000 | [2] | FITTING,GREASE Komatsu China | 0.006 kg. |
| ["SN: 50001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"] | ||||
| 12. | 144-70-15251 | [2] | PIN,ROLL Komatsu China | |
| ["SN: 50001-UP"] | ||||
| 13. | 01010-51470 | [4] | BOLT Komatsu | 0.109 kg. |
| ["SN: 50001-UP"] analogs:["0101061470", "0101031470", "0101081470"] | ||||
| 14. | 01602-21442 | [4] | WASHER,SPRING Komatsu | 0.01 kg. |
| ["SN: 50001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
