20Y-32-11311 20Y-32-K1140 20Y-32-31310 Track Shoe KOMATSU Excavator Spare Parts For PC190LC-8
- 20Y-32-11311 20Y-32-K1140 20Y-32-31310 Track Shoe KOMATSU Excavator Spare Parts For PC190LC-8
- Specifiion
| Name | Track Shoe |
| Parts No | 20Y-32-11311 20Y-32-K1140 20Y-32-31310 |
| Machine Model | PC150 PC158US PC160 PC180 PC190 PC200 PC200CA |
| egory | Track Shoe Grouser |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
Track shoes are integral parts of the crawler chain of construction equipment. The 20Y-32-11311 track shoe supports the machine's weight, makes it possible to move forward, backward, and turn, and reduces the specific pressure of the machine's weight on the ground, which helps improve trafficability on softer soils. In addition, it meshes with the drive wheels to transfer power to the track assembly to propel the machine.
- Compatible models
CRAWLER STABILIZERS CS360
EXCAVATORS PC150 PC158US PC160 PC180 PC190 PC200 PC200CA PC200EL PC200EN PC200LL PC200SC PC200Z PC210 PC220 PC220LL PC228 PC228US PC228UU PC240
MOBILE CRUSHERS AND RECYCLERS BR200T Komatsu
- More other shoe parts fit for KOMATSU machine
| 208-32-05050 SHOE BOLT AND NUT K. |
| BR500JG, PC300, PC300HD, PC380, PC400, PC400ST, PC410, PC450 |
| 234-32-00120 SHOE ASS'Y |
| GD40HT, GD600R, GD605A, GD705R, GS360 |
| 144-32-11312 SHOE |
| D60A, D65A |
| 20T-32-22310 SHOE,TRACK |
| PC40, PC50UU |
| 20T-32-22210 SHOE,TRACK |
| PC40 |
| 175-32-31320 SHOE,TRACK |
| D150A, D155A |
| 198-32-31382 SHOE, TRACK,REGULAR |
| D475A |
| 207-32-51320 SHOE,TRACK |
| PC300 |
| 207-32-51310 SHOE,TRACK |
| PC300 |
| 209-32-01604 SHOE ASSEMBLY, TRACK - 810MM WIDE |
| PC650, PC650SE |
| 209-32-05020 SHOE BOLT AND NUT K. |
| PC650, PC650SE |
| 21N-32-31110 Shoe |
| BOTTOM, PC1100, PC1100SE, PC1100SP, PC1250, PC1250SE, PC1250SP |

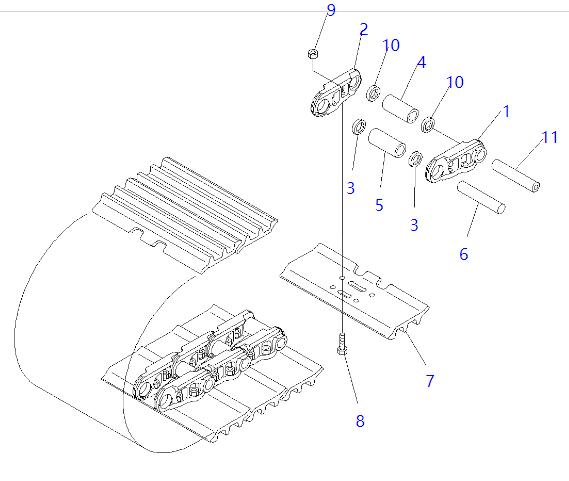

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 20Y-32-02320 | [1] | Track Shoe Assembly Komatsu China | ||
| ["SN: K50001-UP"] |$0. | ||||
| 1. | 20Y-32-31120 | [90] | Link Komatsu | 3.36 kg. |
| ["SN: K50001-UP"] analogs:["20Y3277120"] | ||||
| 2. | 20Y-32-31130 | [90] | Link Komatsu | 3.36 kg. |
| ["SN: K50001-UP"] analogs:["20Y3277130"] | ||||
| 3. | 20Y-32-11240 | [176] | Seal Komatsu | 0.02 kg. |
| ["SN: K50001-UP"] | ||||
| 4. | 20Y-32-11170 | [2] | Bushing Komatsu | 1.601 kg. |
| ["SN: K50001-UP"] analogs:["20Y3211171"] | ||||
| 5. | 20Y-32-11140 | [88] | Bushing Komatsu | 1.781 kg. |
| ["SN: K50001-UP"] analogs:["20Y3211141"] | ||||
| 6. | 20Y-32-31150 | [88] | Pin Komatsu | 1.9 kg. |
| ["SN: K50001-UP"] analogs:["20Y3277150"] | ||||
| 7. | 20Y-32-11311 | [90] | Shoe, W=700mm Komatsu | 19.15 kg. |
| ["SN: K50001-UP"] analogs:["20Y32K1140", "20Y3231310"] | ||||
| 8. | 20Y-32-11210 | [360] | Bolt, (Kit : K02) Komatsu OEM | 0.2 kg. |
| ["SN: K50001-UP"] | ||||
| 9. | 134-32-61221 | [360] | Nut, (Kit : K02) Komatsu China | 0.08 kg. |
| ["SN: K50001-UP"] | ||||
| 10. | 20Y-32-11260 | [4] | Seal Komatsu | 0.02 kg. |
| ["SN: K50001-UP"] | ||||
| 11. | 20Y-32-31190 | [2] | Pin Komatsu | 1.9 kg. |
| ["SN: K50001-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
