3E-6269 3E6269 Solenoid Valve Wheel Loader Spare Parts Fitting For 3114 3116 924F 928G
- 3E-6269 3E6269 Solenoid Valve Wheel Loader Spare Parts Fitting For 3114 3116 924F 928G
- Specifiion
| Name | Solenoid Valve |
| Parts No | 3E-6269 3E6269 |
| Machine Model | 918F 924F 928G IT12B IT14B IT14F IT18F IT24F IT28G |
| Appliion | Wheel Loader |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
- Function
This is a 3-way, 2-position hydraulic solenoid valve in normally open (N/O) to drain configuration. Such valves are used to control the on-off state or direction change of fluid in three connected channels, and under de-energized conditions, the fluid can flow towards the drain path. Its mounting thread size is 3/4-16, which facilitates a standardized installation on the equipment.
- Compatible models
COMPACT WHEEL LOADER 910E
INTEGRATED TOOLCARRIER IT12B IT14B IT14F IT18F IT24F IT28G
LOAD HAUL DUMP R1700 II
RECLAIMER MIXER RM-350B
ROAD RECLAIMER
STABILIZER MIXER SM-350
TRACK-TYPE TRACTOR D8N
WHEEL LOADER 918F 924F 928G C.ater.pillar.
- More other valve parts fit for C A T machine
| 2S5925 VALVE |
| 205B, 211B, 215, 215B, 225, 227, 229, 231D, 235, 235C, 235D, 245, 307, 311, 312, 315, 317, 318B, 320 L, 320B, 322 LN, 330 FM L, 330 L, 561B, 561C, 561M, 571G, 572G, 572R, 578, 583K, 594, 594H, 623B, 6... |
| 2S5926 VALVE |
| 1090, 1190, 1190T, 1290T, 1390, 205B, 211B, 215, 215B, 225, 227, 229, 2290, 231D, 235, 235C, 235D, 2390, 2391, 245, 2491, 2590, 307, 307B, 307C, 307D, 307E, 308C, 308D, 308E, 308E CR, 308E SR, 308E2 C... |
| 1J8497 VALVE |
| 120G, 12E, 12G, 140, 14E, 14G, 16, 163, 172, 173B, 183, 183B, 191, 225, 245, 307, 312, 315, 317, 325B, 330 L, 350, 350 L, 375, 41, 44, 46, 5080, 517, 518, 518C, 527, 528, 528B, 530B, 561C, 561H, 561M,... |
| 5P7090 VALVE-BALL |
| 227, 229D, 322C, 325B L, 518, 528, 528B, 530B, 561D, 589, 615, 615C, 621, 621B, 621R, 623E, 627B, 637E, 651E, 657E, 814, 814B, 815, 815B, 910, 931B, 943, 950, 953, 966C, 966D, 966R, 977K, 977L, 980B, ... |
| 1074397 VALVE AS |
| 16M, 24M, 5110B, 583T, 587T, 769D, 771D, 773D, 773E, 773F, 775D, 775E, 775F, 776D, 777D, 777F, 785, 785B, 785C, 785D, 789, 789B, 789C, 789D, 793C, 793D, 793F, 793F AC, 793F CMD, 793F OEM, 793F-XQ, 795... |
| 7M1296 VALVE-RELIEF |
| 572G, 572R, 572R II, 578, 583R, 587R, 587T, D6H, D6H XL, D6H XR, D6R, D6R II, D6R III, D6R STD, D6T, D6T LGP, D6T LGPPAT, D6T XL, D7F, D7G, D7H, D7R, D7R II, D7R XR, D8H, D8K, D8N, D8R, D9G, PL87 |
| 1582336 VALVE-GAS |
| 120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16M, 5110B, 5130B, 735, 740, 784C, 785C, 785D, 789C, 793C, 793D, 797, 914G, 924F, 9... |
| 6K0248 VALVE AS |
| 120, 12E, 12F, 140, 14E, 910, 916, 920, 926, 926A, 928F, 936F, 938F, 950, 950B, 950F, 950F II, 960F, 966C, 966F, 966F II, 970F, 992, IT12B, IT18B, IT18F, IT28, IT28B, IT28F |
| 9T0818 VALVE-BREAKER RELIEF |
| 533, 543, 69D, 769D, 771D, 773D, 773E, 773F, 775D, 775E, 775F, 776D, 777D, 777F, 789, 789B, 793, 793C, 834G, 834H, 836G, 950G, 966F II, 966G, 972G, 980G, 988F, 988F II, 988G, 988H, 992D, 994, 994D |

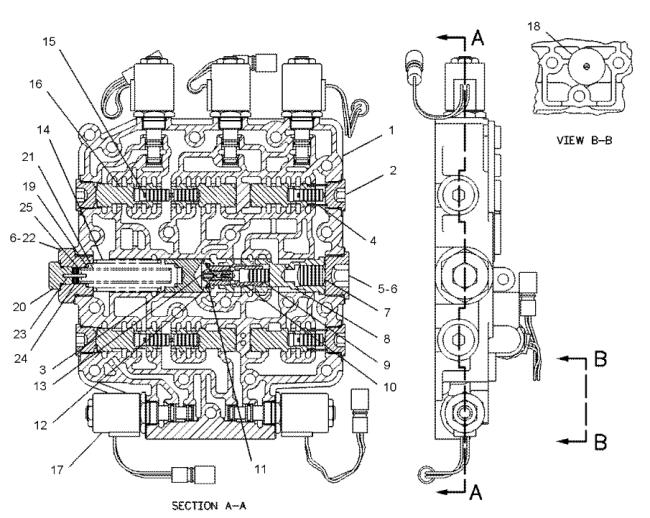

- alog parts list
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6Y-1763 | [1] | BODY | |
| 2 | 7T-7679 | [4] | PLUG | |
| 2M-9780 | [4] | SEAL-O-RING | ||
| 3 | 8E-8175 | [1] | PISTON | |
| 4 | 6Y-0871 | [2] | SPRING | |
| 5 | 6Y-4638 | [2] | PLUG-HEX SOCKET (1-5/16-12-THD) | |
| 6 | 7M-8485 | [3] | SEAL-O-RING | |
| 7 | 8E-1143 | [1] | SLUG | |
| 8 | 8E-3674 | [1] | SPOOL | |
| 9 | 8E-1142 | [1] | SLUG | |
| 10 | 8E-3675 | [1] | SPOOL | |
| 11 | 7T-8797 | [1] | SPACER (13X18.85X2-MM THK) | |
| 12 | 8J-2283 | [1] | RING-SNAP | |
| 13 | 7T-8803 | [1] | PLUG-SCREEN | |
| 4J-7533 | [1] | SEAL-O-RING | ||
| 14 | 8E-1172 | [1] | SPRING | |
| 15 | 9W-6096 | [6] | SLUG | |
| 16 | 9W-6097 | [6] | SPOOL-SELECTOR | |
| 17 | 3E-6269 Y | [6] | VALVE GP-SOLENOID | |
| 18 | [1] | PLATE-IDENTIFIION | ||
| 19 | 8E-1139 | [1] | SPRING | |
| 7B-3028 | [1] | SCREW-DRIVE (NO 4X 3/16-IN) | ||
| 20 | 8E-3694 | [1] | PLUG | |
| 3J-1907 | [1] | SEAL-O-RING | ||
| 21 | 8E-3693 | [1] | SPRING | |
| 22 | 8E-3695 | [1] | PLUG | |
| 23 | 2L-5894 | [1] | PIN-SPRING | |
| 24 | 9S-2768 | [5] | SPACER (3.18X11.91X0.25-MM THK) | |
| 8E-3692 | [4] | SPACER | ||
| 25 | 1P-9620 | [1] | RING-RETAINING | |
| Y | SEPARATE ILLUSTRATION |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
-
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
- Packing and Shipping
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
